Hysoon HY380 mini front end loader with 4 in 1 bucket
1. Hysoon HY380 mini front end loader with 4 in 1 bucket specification :
1.Imported American Briggs&Stratton gasoline engin 23HP
2.Italy pump , Italy servo for optional
3.with Engineering tires
4.0.15M^3 bucket capacity
5.Overall Dimension:2206*1160*1233mm
Item |
Metric |
Inch |
Max working height(A) |
2115 mm |
83.3 inch |
Max pin height (B) |
1856 mm |
73.1 inch |
Max dump height(C) |
1460 mm |
57.5 inch |
The highest point discharge distance(D) |
388 mm |
15.3 inch |
Bucket swing angle(β) |
55° |
55° |
Bucket unloading angle(γ) |
30° |
30° |
Opening-closing angle(θ) |
25° |
25° |
Angle of departure(α) |
8° |
8° |
Total height (H) |
1205 mm |
47.4 inch |
The height from the ground(F) |
90 mm |
3.5 inch |
Wheelbase (G) |
636 mm |
25.0 inch |
No bucket length(J) |
1752 mm |
69.0 inch |
Total width (W) |
1033 mm |
40.7 inch |
Bucket width (K) |
980 mm |
38.6 inch |
Total length(L)(with bucket) |
2206 mm |
86.9 inch |
Turning radius (R) |
1307 mm |
51.5 inch |

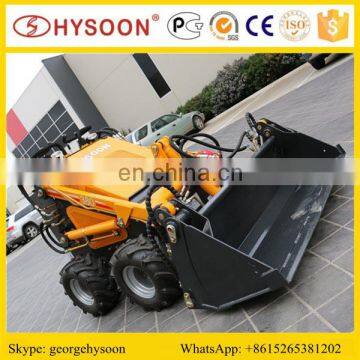

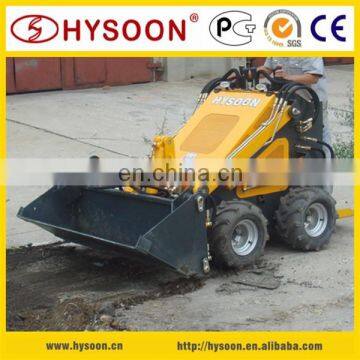

2. Hysoon HY380 mini front end loader with 4 in 1 bucket pictures:
HY380 mini front end loader can do different works by quick change different accessories .
, like digger , breaker , trencher , 4 in 1 bucket ,fork ,angle blade and so on .

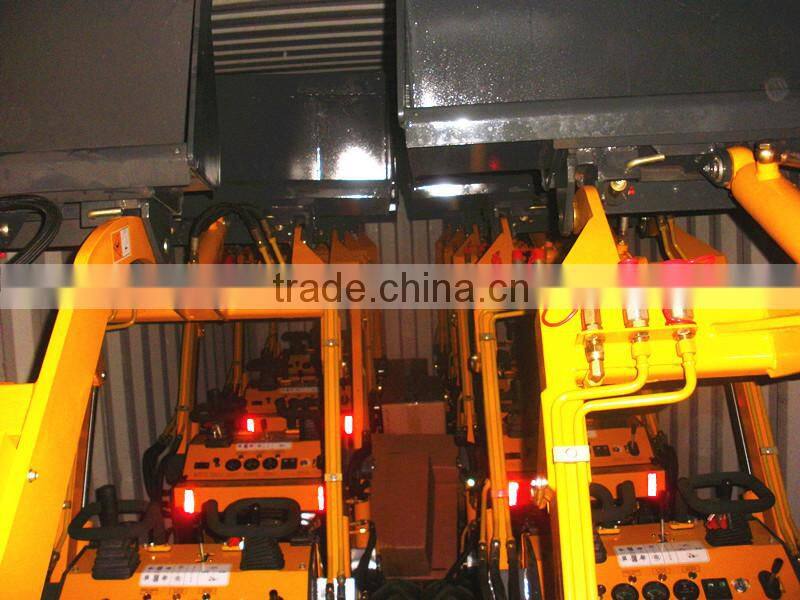

3.Package for Hysoon HY380 mini front end loader with 4 in 1 bucket
If LCL , use plywood & iron frame package , It’s very strong to protect the products .
If FCL , direct load into the container
4. Exhibition for Hysoon HY380 mini front end loader with 4 in 1 bucket
We attended lots professional exhibitions , for example :
Hannover Agritecnica show in Germany, Shanghai Bauma show , ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on .
Our products have won lots customers loved .Following are some pictures :
Warmly Welcome you to visit our factory!
