23HP China micro wheel loader --HY380
1 Production information :
1.Imported American Briggs&Stratton gasoline engin 23HP
2.double gear pump or Italy pump , Italy servo for optional
3.with Engineering tires
4.0.15M^3 bucket capacity
5.Overall Dimension:2206*1160*1233mm
Item |
Metric |
Inch |
Max working height(A) |
2115 mm |
83.3 inch |
Max pin height (B) |
1856 mm |
73.1 inch |
Max dump height(C) |
1460 mm |
57.5 inch |
The highest point discharge distance(D) |
388 mm |
15.3 inch |
Bucket swing angle(β) |
55° |
55° |
Bucket unloading angle(γ) |
30° |
30° |
Opening-closing angle(θ) |
25° |
25° |
Angle of departure(α) |
8° |
8° |
Total height (H) |
1205 mm |
47.4 inch |
The height from the ground(F) |
90 mm |
3.5 inch |
Wheelbase (G) |
636 mm |
25.0 inch |
No bucket length(J) |
1752 mm |
69.0 inch |
Total width (W) |
1033 mm |
40.7 inch |
Bucket width (K) |
980 mm |
38.6 inch |
Total length(L)(with bucket) |
2206 mm |
86.9 inch |
Turning radius (R) |
1307 mm |
51.5 inch |

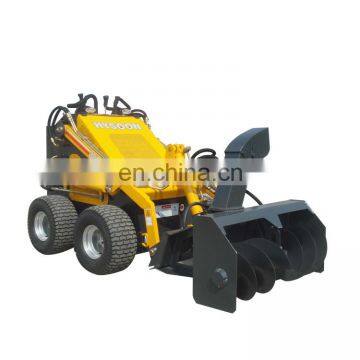

2. Products pictures ( various accessories can be mounted
on it , like digger , auger , snow blower , breaker ,lawn mower , trencher , 4 in 1 bucket,
fork .angle blade and so on )
3.Package
If LCL for HY280 mini track loader ,use plywood & iron frame package , very strong to protect .
If FCL , direct load into the container
4. We also produce the following products , please click the following pictures for more products information :
5. Exhibition
We attended lots professional exhibitions , for example :
Hannover Agritecnica show in Germany, Shanghai Bauma show ,
ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on .
Our products have won lots customers loved .Following are some pictures :
6.Warmly Welcome you to visit our factory
Further informations , please do not hesitate to contact me . Your satisfaction is our relentless pursuit .
Taian HYSOON Machinery Co.,Ltd
Mobile: +86 18653826231
Skype:+86-15265381202
Skype: georgehysoon
