HY380 micro loader ,CE approved micro loader , Micro loader with digger fork ripper and so on
1. HY380 micro loader specification :
1.The engine of HY380 micro loader is Imported American Briggs&Stratton gasoline engine or Kohler engine
2.For HY380 micro loader , you can also choose Italy pump and joystick
3. The machine body of HY380 micro loader is very compact ,also various attachments can be used on micro loader to finish diffrent works with high effiency .HYSOON micro loaders are very popular in Landscaping , garden ,park , road maintenance , construction , rental company and so on .HY380 micro loader is a small machine , but has big function .
Item | Metric | Inch |
Max working height(A) | 2115 mm | 83.3 inch |
Max pin height (B) | 1856 mm | 73.1 inch |
Max dump height(C) | 1460 mm | 57.5 inch |
The highest point discharge distance(D) | 388 mm | 15.3 inch |
Bucket swing angle(β) | 55° | 55° |
Bucket unloading angle(γ) | 30° | 30° |
Opening-closing angle(θ) | 25° | 25° |
Angle of departure(α) | 8° | 8° |
Total height (H) | 1205 mm | 47.4 inch |
The height from the ground(F) | 90 mm | 3.5 inch |
Wheelbase (G) | 636 mm | 25.0 inch |
No bucket length(J) | 1752 mm | 69.0 inch |
Total width (W) | 1033 mm | 40.7 inch |
Bucket width (K) | 980 mm | 38.6 inch |
Total length(L)(with bucket) | 2206 mm | 86.9 inch |
Turning radius (R) | 1307 mm | 51.5 inch |

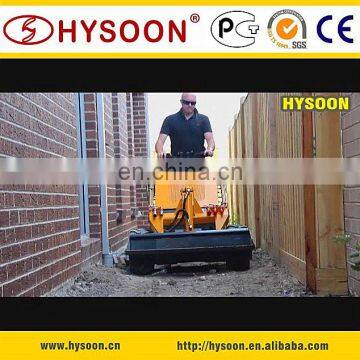

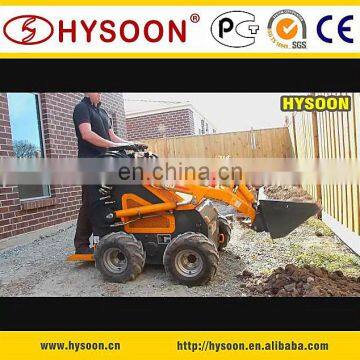

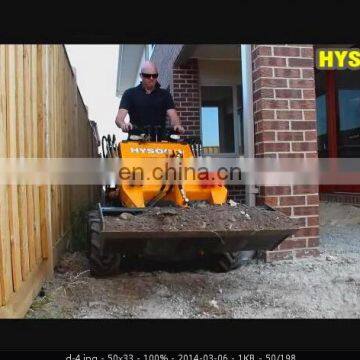

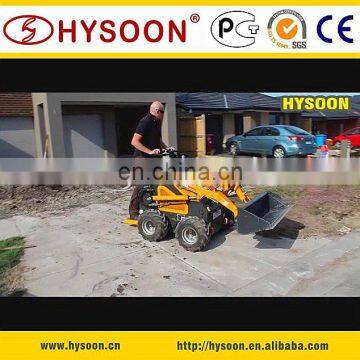

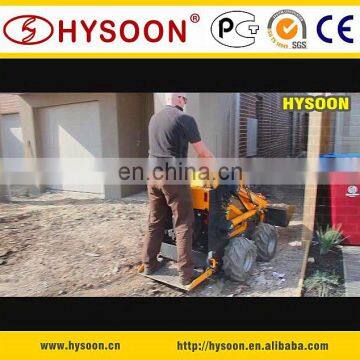

2. HY380 micro loaders pictures:
HY380 micro loaders can do different works by quick change different accessories .
, like digger , breaker , trencher , 4 in 1 bucket ,fork ,angle blade and so on . HY380 micro loaders are multifunction machine , you can use one piece of HY380 micro loader to finish all kinds of works . HY380 micro loader is no doubt a good guy!
HY380 micro loader with digger and trencher
HY380 micro loader with hydraulic breaker and auger
3.Package for HY380 micro loader
If LCL , use plywood & iron frame package , It’s very strong to protect HY380 micro loader
If FCL , direct load into the container .20'ft :8 pieces , 40'ft :16 pieces
4. Exhibition for HY380 micro loader
We attended lots professional exhibitions , for example :
Hannover Agritecnica show in Germany, Shanghai Bauma show , ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on .
Warmly Welcome you to visit our factory!
