HYSOON HY380 micro trenching machine mini trencher .
HY380 mini trecher is consist of HY380mini skid steer loader and attachments --Trencher .There are also various other attachments can be used on HY380 , like digger , auger , fork, sweeper , snow blower ect
1. HYSOON HY380 micro trenching machine mini trencher specification :
1. HY380 micro trenching machine engine : USA Briggs&Stratton 23HP/ Kohler engine
2. HY380 mini trencher pump : double gear pump , Italy Hansa pump for optional
3. HY380 micro trenching machine valves: Advanced Italian Hydrocontrol valves
4. HY380 mini trencher motor: slow speed big torque INI drive motor
5.HY380 micro trenching machine Engine filter : Donaldson cyclonic air filter
6. All parts electrophoresis avoid rusting
7. Trenching depth :800mm ,trenching width :155mm ; trenching speed :154m/min
HY380 mini trencher specification |
|
|
Item | Metric | Inch |
Max working height(A) | 2115 mm | 83.3 inch |
Max pin height (B) | 1856 mm | 73.1 inch |
Max dump height(C) | 1460 mm | 57.5 inch |
The highest point discharge distance(D) | 388 mm | 15.3 inch |
Bucket swing angle(β) | 55° | 55° |
Bucket unloading angle(γ) | 30° | 30° |
Opening-closing angle(θ) | 25° | 25° |
Angle of departure(α) | 8° | 8° |
Total height (H) | 1205 mm | 47.4 inch |
The height from the ground(F) | 90 mm | 3.5 inch |
Wheelbase (G) | 636 mm | 25.0 inch |
No bucket length(J) | 1752 mm | 69.0 inch |
Total width (W) | 1033 mm | 40.7 inch |
Bucket width (K) | 980 mm | 38.6 inch |
Total length(L)(with bucket) | 2206 mm | 86.9 inch |
Turning radius (R) | 1307 mm | 51.5 inch |

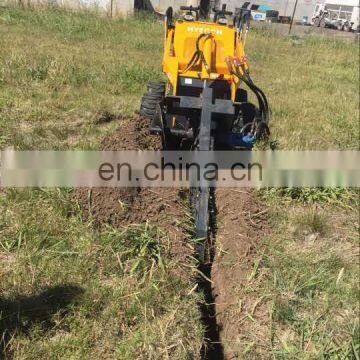

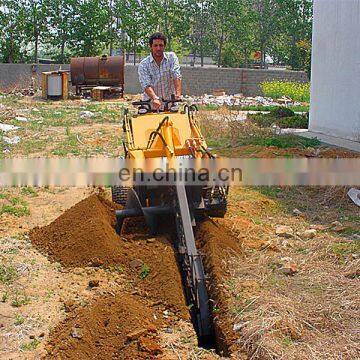

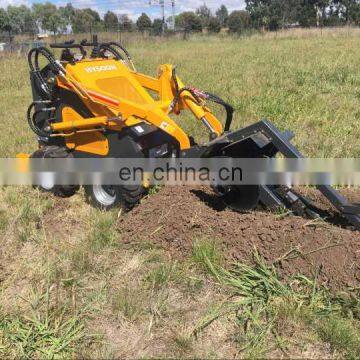

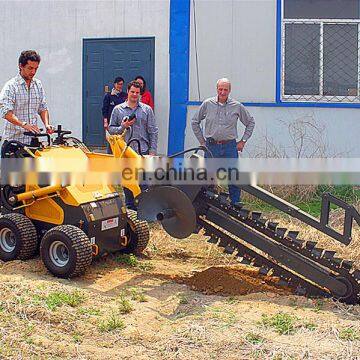

2. HY380 micro trenching mahcine pictures:
HY380 mini trencher can do different works by quick change different accessories , like standard bucket , digger ,
auger , fork , sweeper , lawn mower ect .
If LCL , use plywood & iron frame package , It’s very strong to protect mini skid steer loader .If FCL , direct load into the container
Taian Hysoon Machinery Co., LTD is the first-class company engaged in the research, development and manufacture of mini skid steer loaders , skid steer loaders with accessories, we prouce different models :
HY380 mini skid steer loader,
HY280 Mini digger,
HY200 articulated mini loader,
HY700 skid steer loader like bobcat,
HY850 skid steer loader
we warmly welcome you to visit our factory !
