23HP compact wheel mini dumper loader ce --HY380
1.PRODUCT INFO
1.Imported American Briggs&Stratton gasoline engin 23HP
2.Italy pump , Italy servo for optional
3.with Engineering tires , also Rubber track for optional
4.0.15M^3 bucket capacity
5.Overall Dimension:2206*1160*1233mm

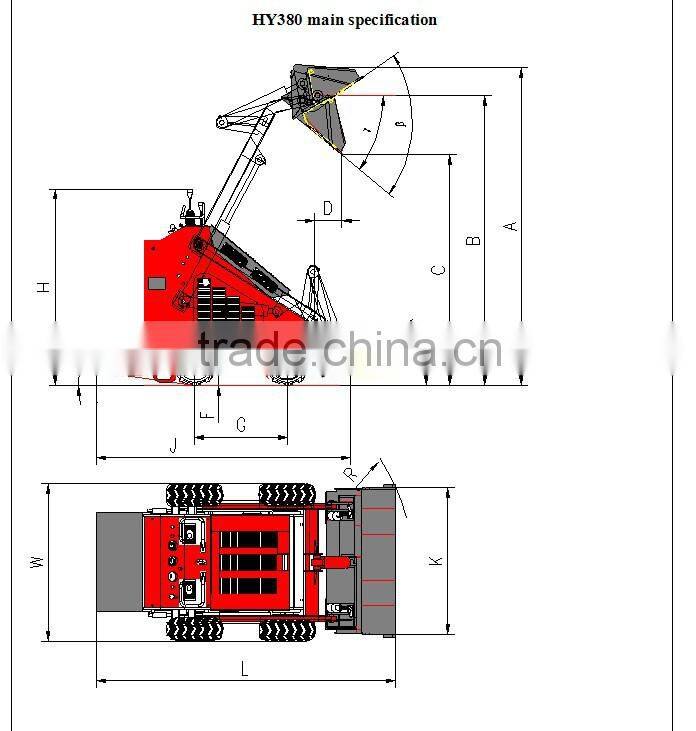

Item | Metric | Inch |
Max working height(A) | 2115 mm | 83.3 inch |
Max pin height (B) | 1856 mm | 73.1 inch |
Max dump height(C) | 1460 mm | 57.5 inch |
The highest point discharge distance(D) | 388 mm | 15.3 inch |
Bucket swing angle(β) | 55° | 55° |
Bucket unloading angle(γ) | 30° | 30° |
Opening-closing angle(θ) | 25° | 25° |
Angle of departure(α) | 8° | 8° |
Total height (H) | 1205 mm | 47.4 inch |
The height from the ground(F) | 90 mm | 3.5 inch |
Wheelbase (G) | 636 mm | 25.0 inch |
No bucket length(J) | 1752 mm | 69.0 inch |
Total width (W) | 1033 mm | 40.7 inch |
Bucket width (K) | 980 mm | 38.6 inch |
Total length(L)(with bucket) | 2206 mm | 86.9 inch |
Turning radius (R) | 1307 mm | 51.5 inch |

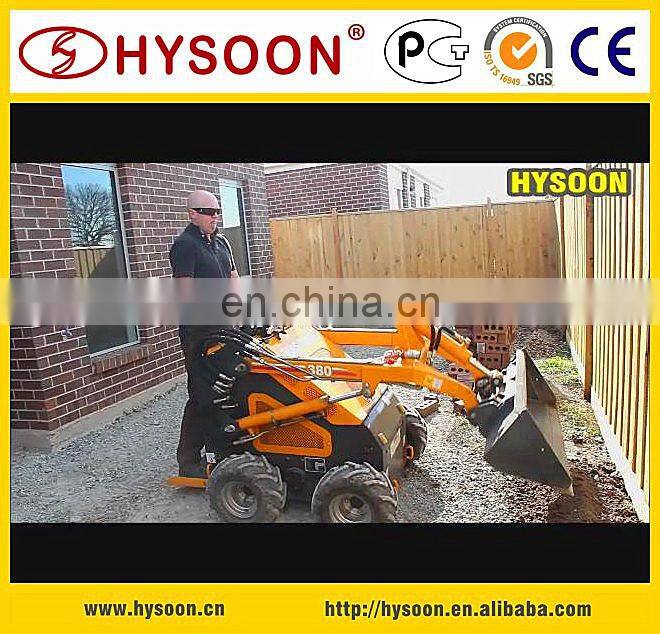

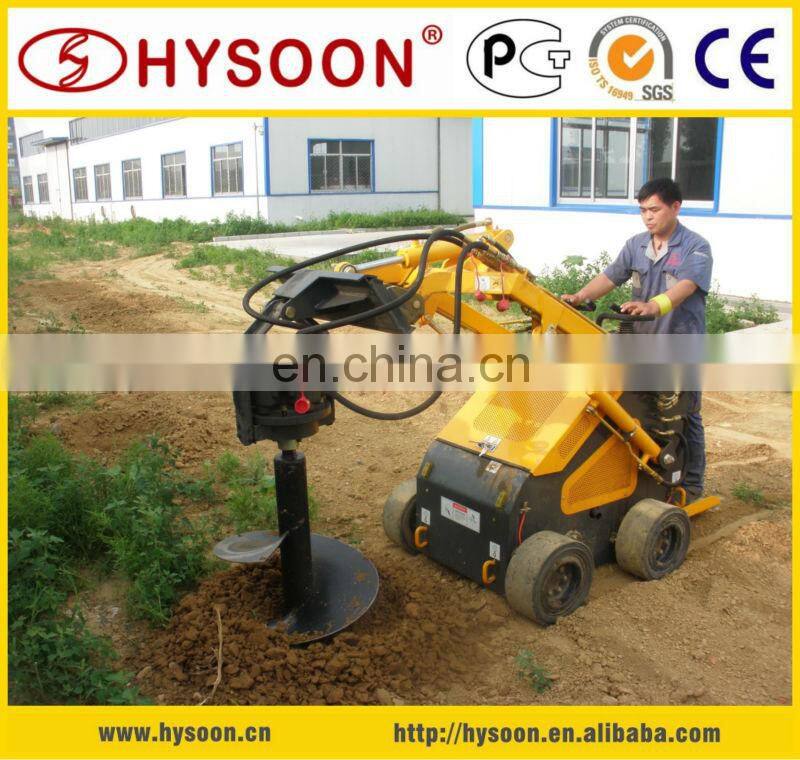

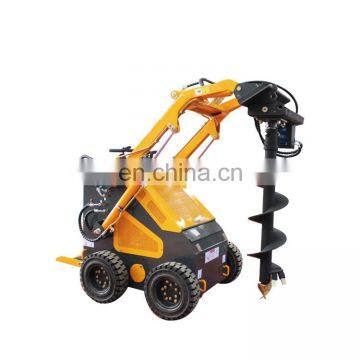

2. Products pictures ( various accessories can be mounted
on it , like 4 in 1 bucket ,fork .angle blade and so on )
3.Package
If LCL , we use plywood & iron frame package , It’s very strong to
protect the products .

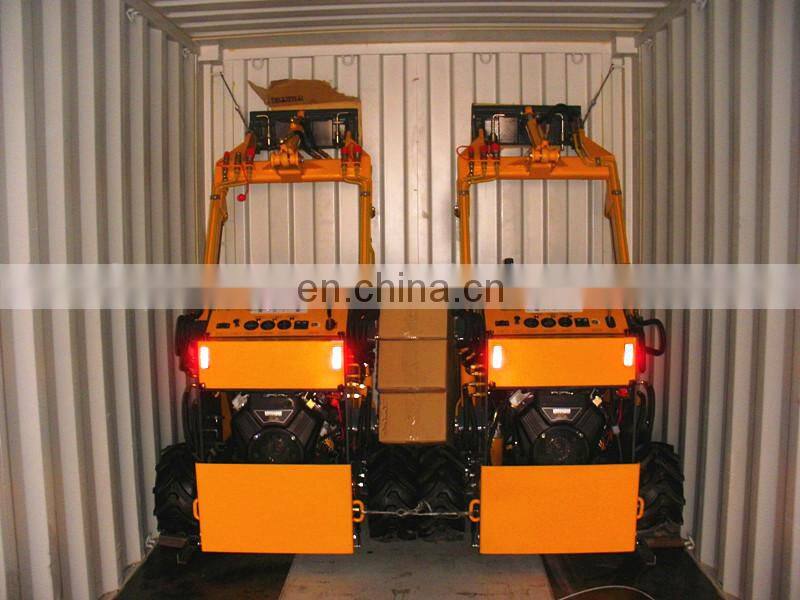

If full container load , we fix the machine in the container

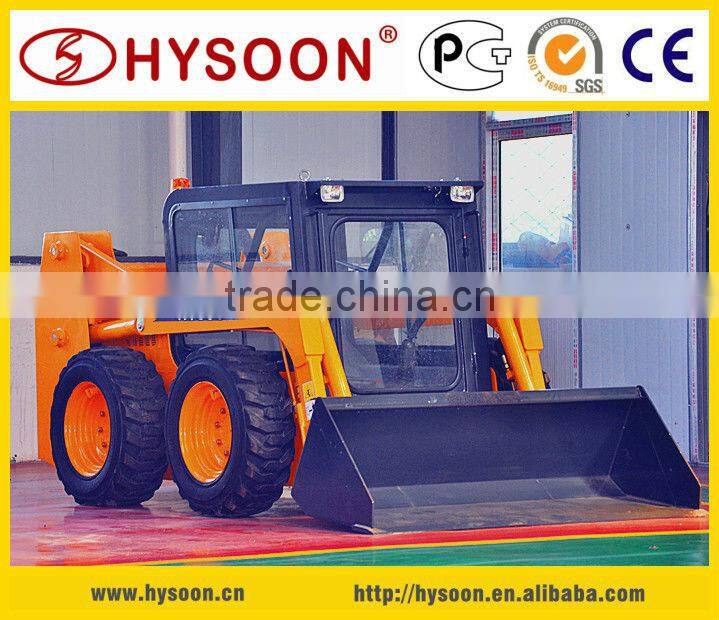

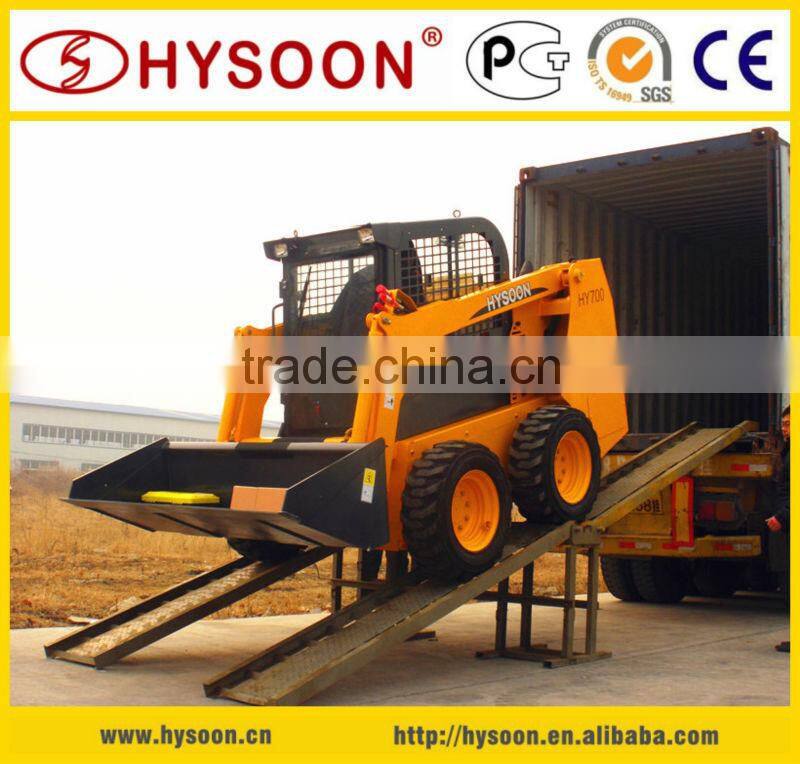

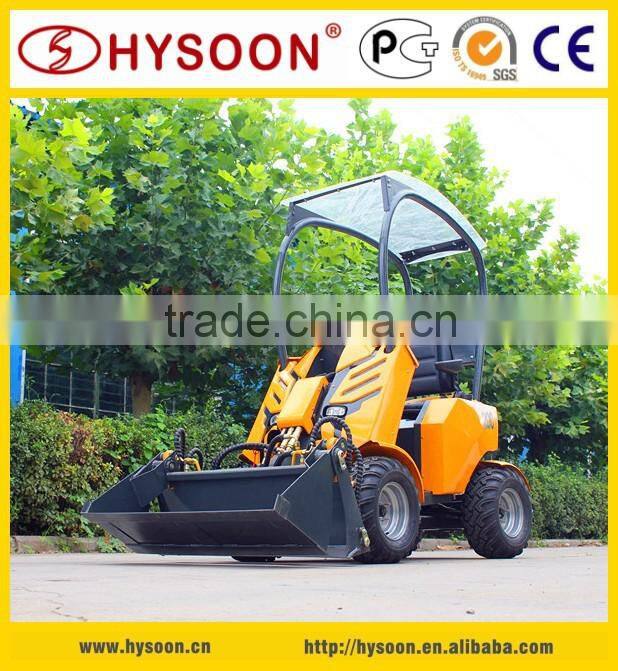

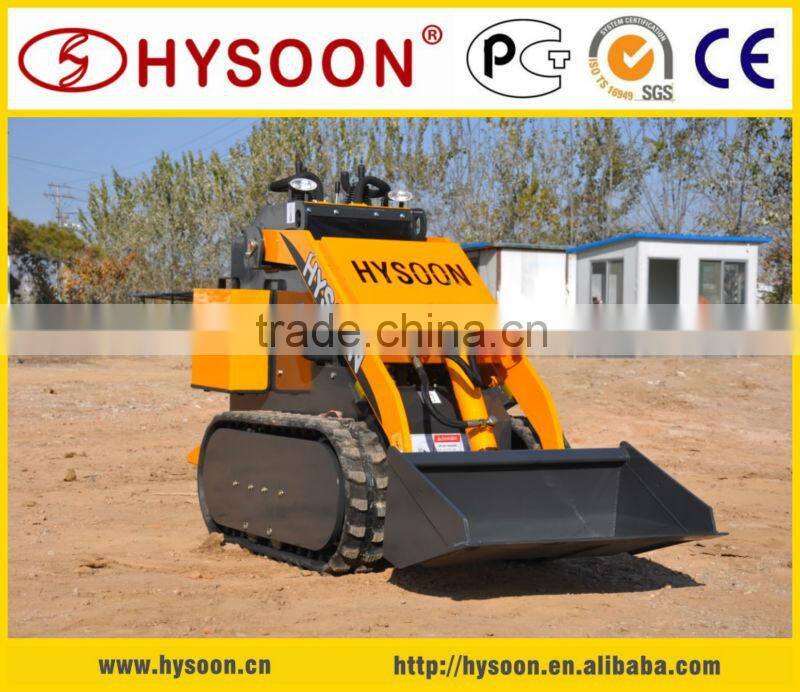

4. We also produce the following products , please click the following pictures for more products information :
5. Exhibition
We attended lots professional exhibitions , for example :
Hannover Agritecnica show in Germany, Shanghai Bauma show ,
ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on .
Our products have won lots customers loved .Following are some pictures :

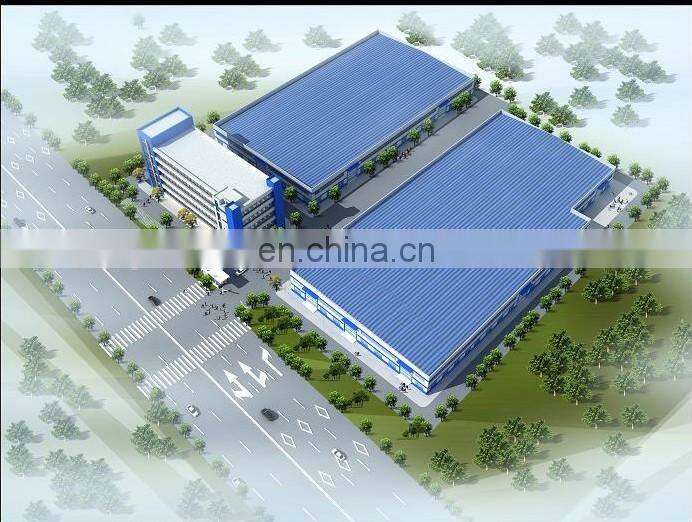

6.Warmly Welcome you to visit our factory
Further informations , please do not hesitate to contact me . Your satisfaction is our relentless pursuit .
