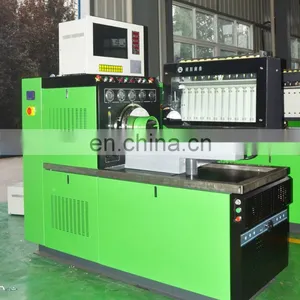

Help Center12PSBG-7F Diesel Fuel Injection Pump Testing Machine
Related Products
-
12PSBG Injection Pump Diesel Testing Bench Used for Auto MaintenanceUS$ 11,000 - 11,000MOQ: 1 Set -
12PSBG-7F Diesel Fuel Injection Pump Test StandUS$ 3,500 - 4,200MOQ: 1 Set
-
Classical 8 Cylinders Diesel Pump Test Bench 12PSB-300 With 7.5KW 11KW 15KW 18.5KW 22KW OptionalUS$ 3,200 - 3,500MOQ: 1 Set
-
Classical Diesel Fuel Injection Pump Test Bench 12PSB-500 With 7.5KW 11KW 15KW 18.5KW 22KW OptionalUS$ 3,200 - 3,300MOQ: 1 Set
-
Classical Injection Pump Testing Equipment 12PSB-500 With 12 CylindersUS$ 3,200 - 3,500MOQ: 1 Set
12PSBG diesel fuel injection pump test bench:
Technical parameter:
1. Adjustable rotation speed range: 0~4000RPM
2. Double series of graduates: 45/150CC
3. Volume of oil tank: 100L
4. Temperature stabilization: 40±2
5. Test oil filtering unit: 5μ
6. DC. Supply: 12/24V
7. Feed pressure: 0~0.4MPa (low), 0~4MPa (high)
8. Air pressure (MPa): -0.03~0.3
9. Rack travel range: 0~25mm
10. 3-phase power supply: 380V/50Hz or on request
11. Flywheel inertia’s moment: 0.8kg·m2
12. Center height: 125mm
13. Output power: 7.5kw~15kw
14. Overall dimensions: 200X90*170CM
15. Net weight (kg): 1000.
16. Average trouble-tree working time of test stand: ≥2500h.
Functions:
1. Test oil-supply amount and oil-supply uniformity of each cylinder.
2. Test start point and interval angle of oil supply of each cylinder in static state.
3. Check and adjust the performance of mechanical speeder.
4. The sealing inspection of injection pump.
5. Test the valve of distribution pump.
6. Test the return oil of distribution pump.
7. Check the interior pressure of distribution pump.
8. Check the performance of air-film of mechanical speeder
9. Check the behavior of supercharging and compensatory device.
10. Inspect oil pump.
Main Characteristics:
1. Industrial LCD
2. English and Chinese menu;
3. Measuring the Rack Bar journey accurately
4. The timing characteristic curve of debuggable injection pump.
5. Automatic oil unloading device
6. Print and keep debugging data of pump.
7. Large inertia flywheel--- steady drive and good balance.
8. Offer lubricating system of engine oil.
9. Offer high performance heater exchanger, control oil temperature accurately.
