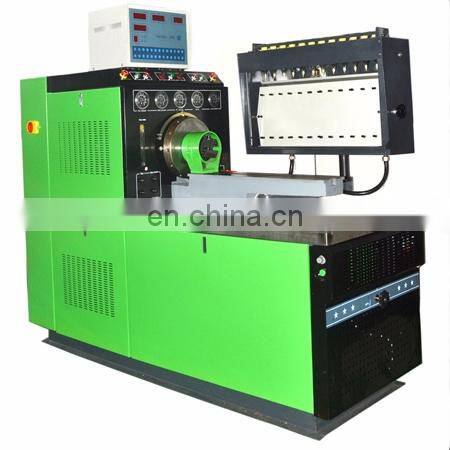

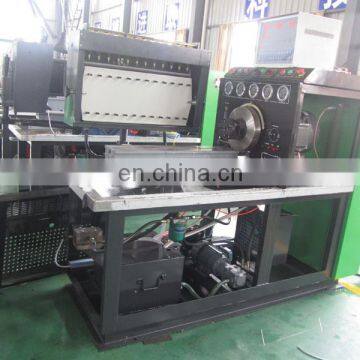

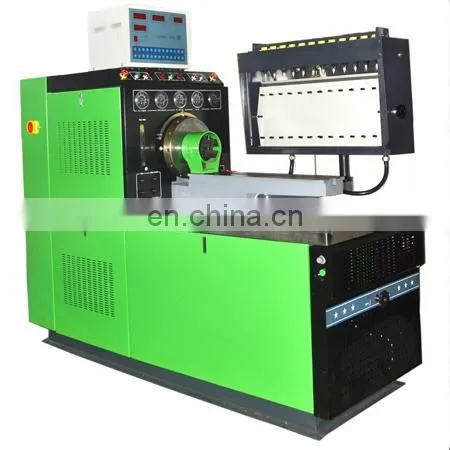

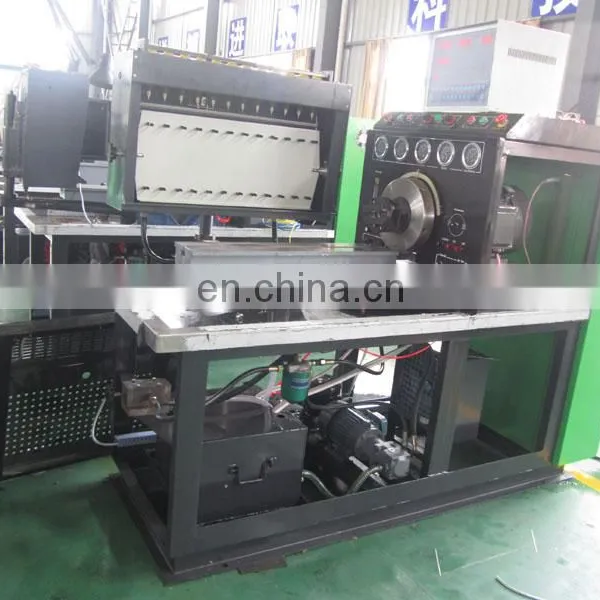

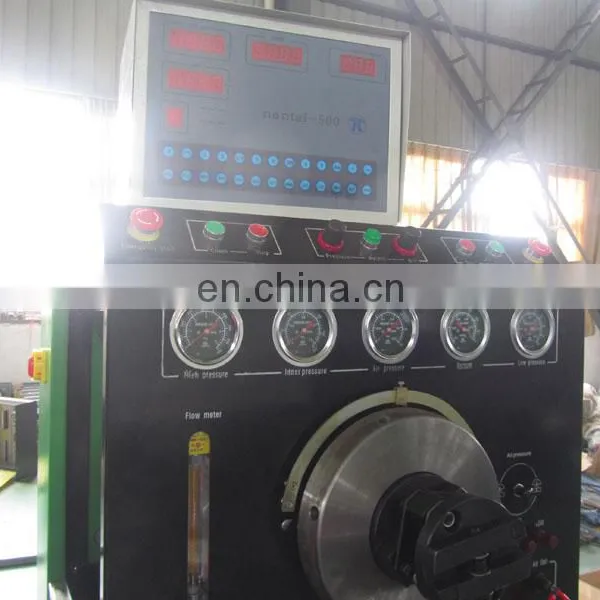

Classical injection pump testing equipment 12PSB-500 with 12 cylinders
- 100 Set / Sets per Month
- Shanghai Qingdao Xiaman Ningbo Shenzhen
- T/T Credit Card
-
Manual oil discharge diesel injection pump test bench 12PSB-500 with 7.5KW 11KW 15KW 18.5KW 22KW optional
-
12PSB-500 injection pump test bench
-
12SPBG-3 220V Mechanical in line Injection Pump Tester, conventional pump tester
-
12PSBG-7F diesel injection pump test bench 12 cylinder mechanical pump test bench
-
NANT Diesel test bench diesel injection test bench 12PSBG-3
-
NANTAI NT700 HEUI professional test bench
Product Details
| Brand Name: | NANT | Place of Origin: | Henan, China | Model Number: | 12PSB-500 |
| Type: | Engine Analyzer | Certification: | ISO CE | Voltage: | 3phases 380V, 3phases 220V, 2phases 220V |
| Power: | 7.5kw, 11kw,15kw,18.5kw | Warranty: | 1 Years | Applicable Models: | mechanical pumps |
Product Description
Classical injection pump testing equipment with 12 cylinders
Function:
1.The testing debugging about oil-supply amount of each cylinder and oil-supply uniformity of injection pump.
2. Check the oil-supply spacing of each cylinder and oil supply starting point in the static state.
3. Check and adjust the performance of mechanical speeder.
4. The sealing inspection of injection pump.
5. The test of value of distribution pump.
6. The test of loop oil of distribution pump.
7. Check the intracavity pressure of distribution pump.
8. Check the performance of air-film mechanical speeder.
9. Check the pump of pressurized compensatory .
10. The inspection of oil delivery pump.
Option(On Request):
1.Oil lubricate
2.Printer
Main Characteristics:
1.Advanced frequency conversion technology with rotation speed,temperature,count numeral control.
2.Debug speed curve of injecting oil pump.
3.Automatic oil unloading device
4.Print and keep debugging data of pump.
5. Large inertia flywheel--- steady drive and good balance.
Technical parameter:
1.Power: 5.5KW,7.5KW,11,15,18.5KW 22KW optional
2. Adjustable rotation speed range: 0~4000rpm
3. Double series of graduates: 45/150CC
4. Volume of oil tank: 100L
5. Temperature stabilization: 40±2degree
6. Test oil filtering unit: 5μ
7. DC. Supply: 12/24V
8. Feed pressure: 0~0.4MPa (low), 0~4MPa (high)
9. Air pressure (MPa): -0.03~0.3
10. Rack travel range: 0~25mm
11. 3-phase power supply: 380V/50Hz or 220V/60Hz
12. Flywheel inertia’s moment: 0.8kg·m2
13. Center height: 125mm
14. Overall dimensions: 228*108*188CM
15. Net weight (kg): 800.
16. Average trouble-tree working time of test stand: ≥2500h.
Operation video for injection pump test bench
/watch?v=VNbH8eQEhXk
Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.
The company pursues high standard manufacturing and qualified products. All the products have passed the quality system certification of ISO9001:2008 & CE certificate and entered European market. Depending on the stable and lasting capabilities, our products are well known to international market such as Russia, Mongolia, Bulgaria ,Albania, Argentina, South Africa, Germany, Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia and etc
Q: Are you trading company or manufacturer ?
A: We are test bench assembling factory. We have had test bench for 20 years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: How about the use of maintenance technology and equipment ?
A:We have free training about test bench,injector and pump maintenance.
Q: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer, if you have any requirements you can contact us directly.
