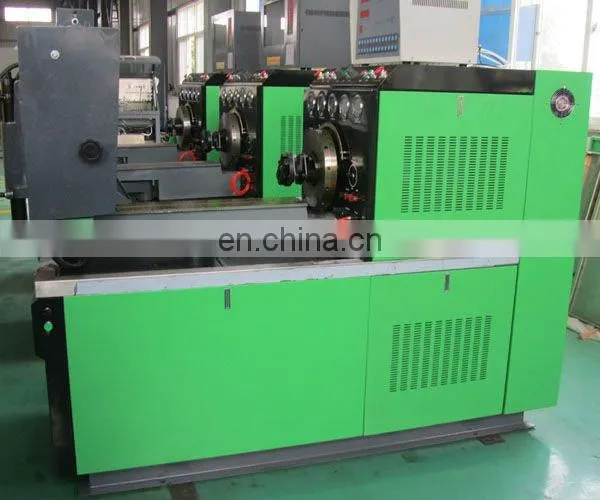

12PSBG-7F Diesel Injection Pump Test Bench
Functions:
1. Test and debugging about oil supply amount and uniformity each cylinder of injection pump.
- Check the oil supply spacing of each cylinder and oil supply starting point in the static state.
- Check and adjust the performance of mechanical speed controller.
- The sealing inspection of pump body.
- The test of solenoid valve of distribution pump.
- The test of return oil of distribution pump.
- Measure the interior pressure of distribution pump.
- Check the vacuum capacity regulators.
- Check the pressure of compensator.
10. Checking the fuel supply pump.
11. Measure the advance timer device.
12. User can change the tempreature.
Characteristics:
1.Advanced frequency conversion technology and industrialized computer control technology,with rotation speed,temperature,count numeral control, Industrial LCD double control and dual display system.
2. English and Chinese menu.
3.Two sides operation automatically
4.Equipped with the relevant attachments for measuring the domestic and international various kinds of high pressure oil pumps
5.Measuring the Rack Bar journey exactly.
6.Debug speed curve of injecting oil pump.
7.Automatic oil unloading device
8.Print and keep debugging data of pump.
9.Large inertia flywheel--- steady drive and good balance.
Main technical parameters:
Power | 5.5KW,7.5KW,11,15,18.5KW optional |
Adjustable rotation speed range | 0~4000rpm |
Double series of graduates | 45/150CC |
Volume of oil tank | 100L |
Temperature stabilization | 40±2°C |
Test oil filtering unit | 5μ |
DC. Supply | 12/24V |
Feed pressure | 0~0.4MPa (low), 0~4MPa (high) |
Air pressure (MPa) | -0.03~0.3 |
Rack travel range | 0~25mm |
3-phase power supply | 380V/50Hz or on request |
Flywheel inertia’s moment | 0.8kg/m2 |
Center height | 125mm |
Output power | 7.5kw~15kw |
Overall dimensions | 200X90*170CM |
Net weight (kg) | 1000 |
Average trouble-tree working time of test stand | ≥2500h. |
