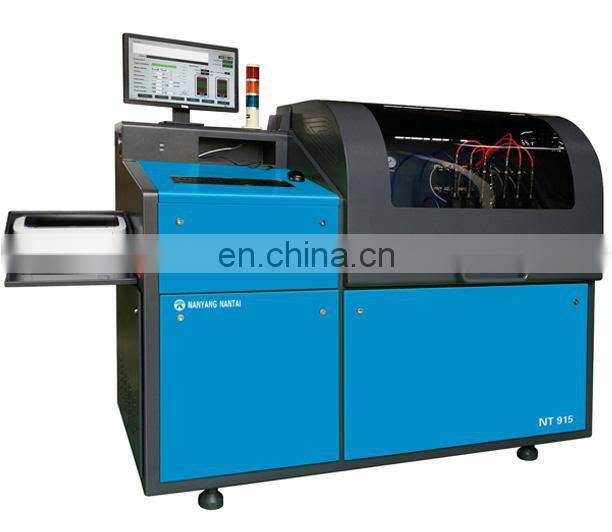

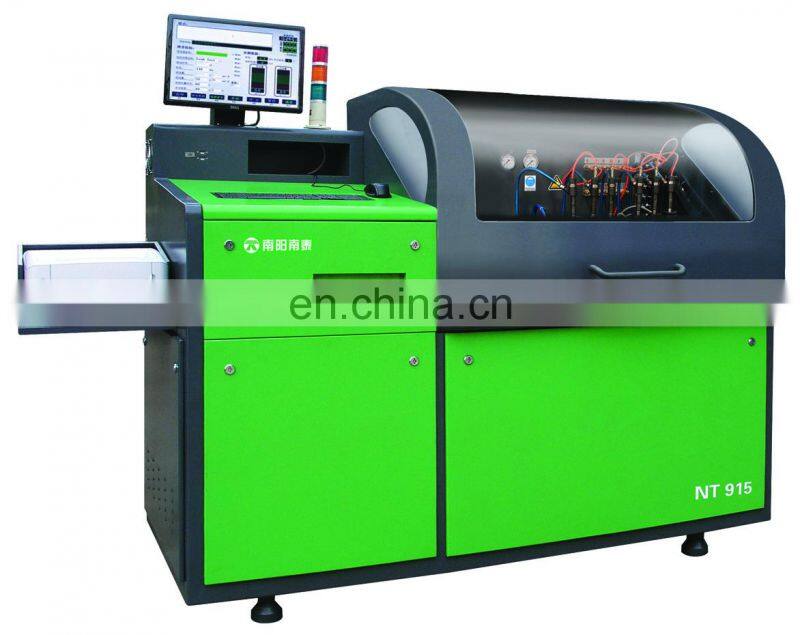

Full function commomn rail test bench NT916
Characteristics
1.Air-conditioner to keep the oil temperature controlled at 40±2℃.
2.Equipped with original Bosch common rail system. The rail pressure is controlled by DRV and ZME valve at ±0.5 Mpa.
3.Equipped with Germany flow sensor, the flow range is 0.008-4L/Min,the test precision is 0.3%.
4.Equipped with original Bosch CP3.3 pump.
5. Compact universal stand can test 6 solenoid valve injectors or Piezo injectors successively at one time.
6.The range of rail pressure is 0-2500bar with precise measurement,easy operation, low noise and energy conservation.
7. Output power (optional): 11kw, 15kw.
8. Lubrication oil system: ensure the stability of the tested parts.
9. Dan foss compressor of SC15CL series which is in accordance with the European Union EC842/2006 and European Union Directive 2006/40/EC is equipped to the cooling system.
We provide three types of model three-phase, 380V/50Hz, three-phase 220V/60Hz and two-phase 220V/60Hz in convenient for the different need of power supply in different countries.
Injector test
1.Cleaning: High pressure cleaning for the impurities inside the injectors.
2.Testing the injection and return volume under VL, TL, LL, VE and VE2 status.
3.Atomization test: to judge whether the injector is blocked through the atomization effect.
4.Sealing test: check whether nozzle, nozzle cap nut and solenoid valve leaks oil.
5. Test solenoid valve injectors of different models automatically and test 6 injectors continuously.
6.Test Piezo injectors of different models automatically and test 6 injectors continuously.
7.Test Piezo injector assembly of large resistance value(>2.5 Ohm).
Pump test
1.Automatically test injection and return volume, pump chamber pressure, feeding pressure and sealing performance for Bosch, Siemens, Denso and Delphi common rail pumps.
2.Test special Denso HPO pumps with 8 cylinder double magnetoelectric sensor, 6 cylinder single magnetoelectric sensor or 6 cylinder Hall sensor.
Click on the product image you are interested in.
Packing Details : Wood Packing
Delivery Details : 3-30 days after order
Best Test Bench
Our company has independently developed a range of products. We’ve gotten four national patent certifications and there are three patents have benign reported to national IPO.
Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise
that produces common rail test bench, traditional diesel fuel injection pump
test bench, Nozzle Tester, and sells spares parts for repairing variety of
electronic diesel injection systems to serve the automobile aftermarket all
over the world.
