EPS916 Full Function Common Rail Test Bench
US$ 12,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Nanyang
Place of Origin:
Hunan, China
Model Number:
EPS916
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Dalian Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EPS916 Including EUI EUP Testing Cam Box and CAT HEUI Injector and Pump TestingUS$ 13,000 - 13,500MOQ: 1 Piece -
Common Rail Injector and Common Rail Pump Test MachineUS$ 14,000 - 14,300MOQ: 1 Set
-
Full Function Common Rail Test Machine EPS916US$ 13,000 - 13,500MOQ: 1 Piece
-
Common Rail Injector Test Bench CRI-NT206US$ 3,500 - 3,500MOQ: 1 Set
-
EPS916 Electronic Control Comprehensive Test BenchUS$ 13,800 - 13,800MOQ: 1 Set
Brand Name
Nanyang
Place of Origin
Hunan, China
Model Number
EPS916
Power
Electronic
Product Description

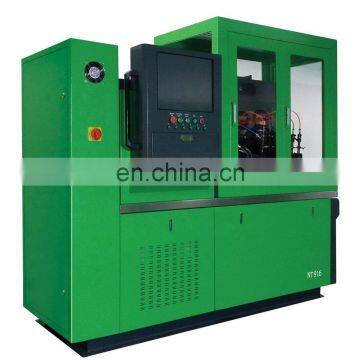

EPS916 Full Function Common Rail Test Bench
>>>APPLICATION
Mainly test for common rail pump and injector, HEUI & EUI/EUP testing
This EPS916 is specialized test bench for Common Rail testing
Common Rail System
CP1, CP2,CP3, CP Delphi / Denso / Siemens
Solenoid valve CRI of All Brands
Solenoid valve CRIN of All Brands
Piezo CRI of All of Brands
HEUI Testing.
EUI/EUP Testing.
HP0 Pump Testing.
With test data and test plan.
It also can test 6 common rail injectors in one time
>>>TECHNICAL PARAMETERS

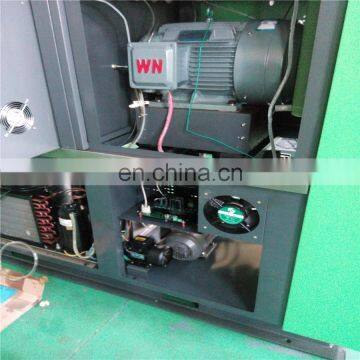

1.Motor power: 15KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling

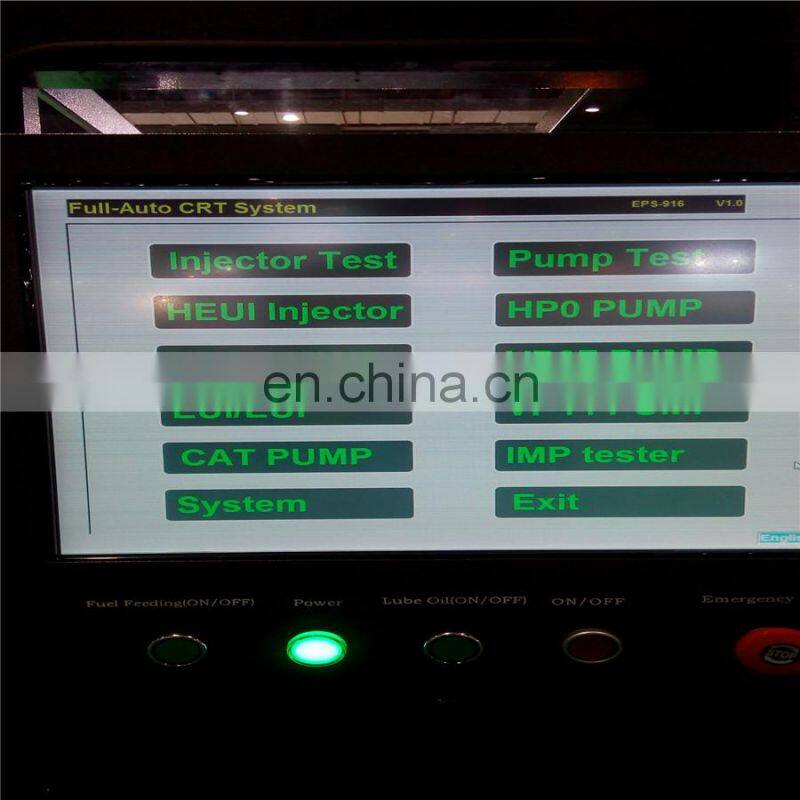

>>>FUNCTION
1.Test all common rail injector and pumps
2. Test all Piezo injectors
3. Test HP0 Pumps
4. Test EUI/EUP
5. Test HEUI
6. Test DRV valve
7. Check delivery of CR pumps
Optional Function:
Forced Cooling System.

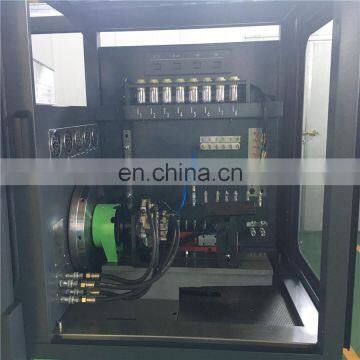

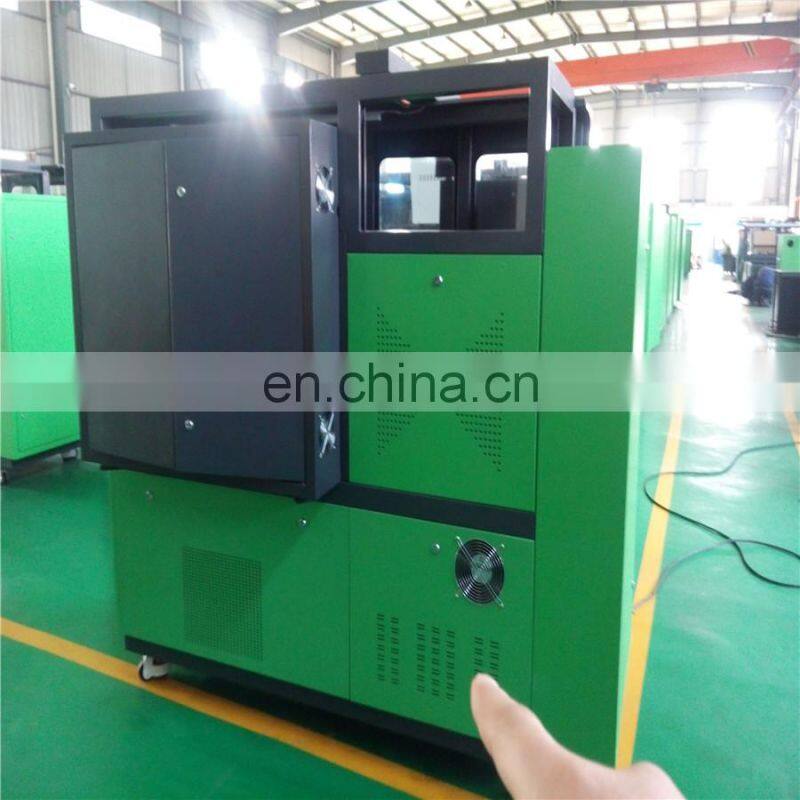

Detailed Images
