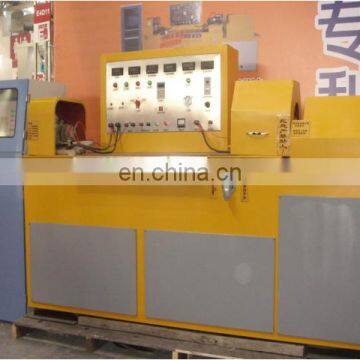

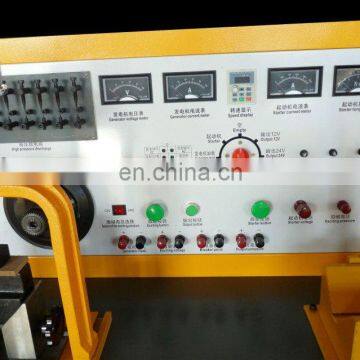

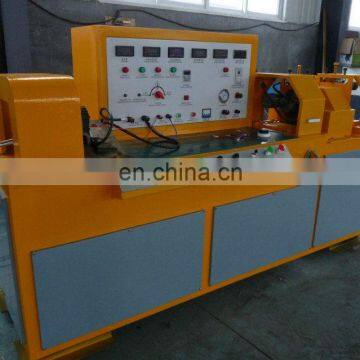

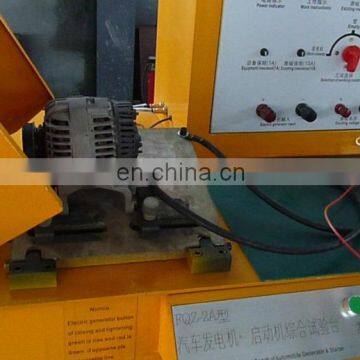

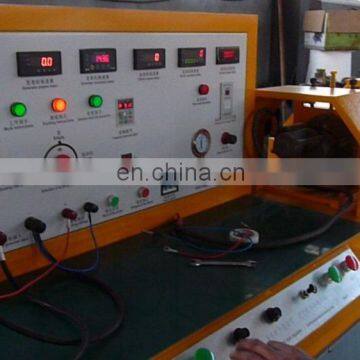

BCQZ-2A starter motor and alternator test bench
This test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument uses digital display mode, reads data directly and is electronic load module type, domestic first. This test bench is especially applicable for testing large vehicles generator and starter used for Bus Company and oil field etc. It is also matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models generators and starters.
Technical Parameter
Input working voltage 380V AC 50HZ（ three-phase four-wire）DC12V、24V or 48V
Motor power：7.5KW Frequency converter power：7.5KW（three-phase AC）
Speed adjustable range of generator： no load 0-8000r/min load 0-6000r/min
Load mode ： Electronic module type DA (0～200A)
Working current of starter：0-2000A
Torque of starter：0～200 N.M
Air pressure setting ：0～1MPa (random adjustment)
Size: 2600*850*1450
Applicable Scope
Generator and starter of various large load carrying vehicles, passenger car and bus;
Maximum test power of generator :5.5KW
Maximum test power of starter: 15KW
JINAN Machine Co.,Ltd
is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries .
Our products including common rail injector test bench ,common rail injector tester (CRDI), diesel injection pump test bench EUI/EUP tester cam box ,Denso ECDV3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part ,Welcome you to visit our factory and cooperate in the future.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days.
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
