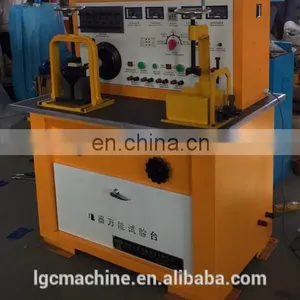

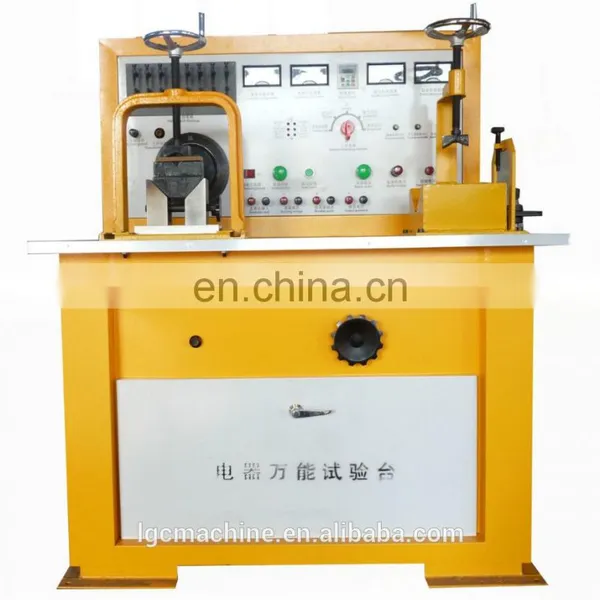

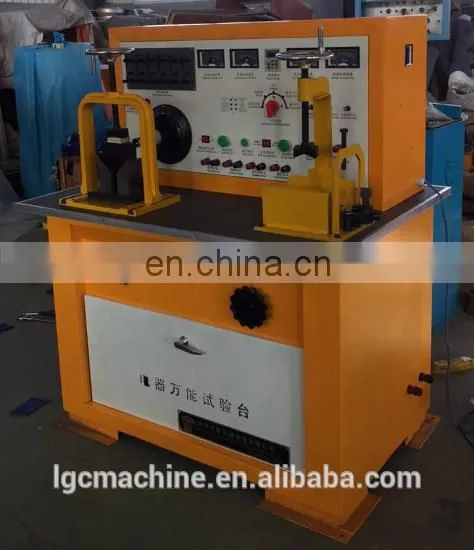

Help CenterLGCS-2B Automobile Generator Alternator Starter Test Bench
Related Products
-
Automobile Service Starters and Alternators LGCS-2B Generator Starter Test BenchUS$ 2,000 - 2,800MOQ: 1 Set -
LGCS-2A Automobile Generator Starter Motor Test BenchUS$ 6,800 - 8,000MOQ: 1 Set
-
Lower Price LGCS-2B Auto Starter Motor and Alternator Test BenchUS$ 1,750 - 2,100MOQ: 1 Set
-
New Design LGCS-2A Generator Starter Motor and Alternator Test BenchUS$ 7,000 - 8,000MOQ: 1 Set
-
Alternator Test Bench Usage and Electronic Power LGCS-2B Alternator Starter TesterUS$ 2,000 - 2,800MOQ: 1 Set
General introduction
This test bench uses variable frequency speed regulation ,pointer instrument display.
It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn, ignition coil, etc.
Advantages:
1.It uses variable frequency speed regulation
2.It displays result by pointer instrument .
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It possesses high control sensitivity and strong controllability.
7.It is with charge fuction
Test items:
Test Starter: 5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M
Test Alternator & Generator: 1.5 KW, (12V 24V 48V), 5000RPM
Test generator: no load and load ,speed, voltage,current;
Test starter: no load, load, braking torque;
Test electronic regulator: regulate voltage and current, limit current;
Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;
Test battery: voltage; test electric horn: sound;
Test electric wiper: action;
Test ignition coil
Model No LGCS-2B
Language English/Spanish, etc
Material Metal plate
Painting Powder painting, durable and beautiful
Color Blue
Voltage 220V 50 Hz (other voltage acceptable)
Motor power 2.2KW
Regulating speed of frequency converter 0-5000Rpm
Frequency converter power 7.5KW
External battery Prepare one self for starter testing
Turning direction Positive and negative
Adjusting mode Rotary
Three-pin discharge 8 groups in parallel
ignition angle index plate 360°division
range of adjusting clearance 0—15mm
Testing starter max braking current 1000A
Test starter max braking torque 100N.m
Charge function Yes
Accessories:Accessory wires, blank plates for starters, fuses, etc.
Packing sizes 1440*900*1580mm=2.05CBM
Weight N.W: 250kgs G.W: 280kgs
Shandong LGC Machine Technology Co.,Ltd is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI), diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part ,Welcome you to visit our factory and cooperate in the future.
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: What is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
