JINAN BEACON cr 901/diesel Injection Pump Test Bench Cr-901 Common Rail Injector and Pump Test Equipment CR901
US$ 6,200 - 8,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Beacon
Place of Origin:
Shandong, China
Model Number:
BC-CR901
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any sea port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CRI-NT816F Common Rail Injector Test Bench With Stage 3 Repair Tool All in One 3 Stage Stroke Measuring NT816f Test BenchUS$ 3,800 - 4,400MOQ: 1 Set -
NT816F Nant Common Rail Injector Test Bench 3 Stage Measuring Function Common Rail Injector Test BenchUS$ 3,800 - 4,400MOQ: 1 Set
-
Hot Sale CRS6000 Diesel Injector Calibration Machine Common Rail Injector Test Bench Crs5000/crs-6000US$ 2,300 - 2,700MOQ: 1 Set
-
Original EPS200 EPS205 Crdi Common Rail Injector Test BenchUS$ 10,500 - 15,000MOQ: 1 Set
-
JINAN BEACON CRS6000 Diesel Fuel Injector Calibration Machine Common Rail Injector Test Bench Crs5000/crs-6000US$ 2,300 - 2,700MOQ: 1 Set
Brand Name
Beacon
Place of Origin
Shandong, China
Model Number
BC-CR901
Power
Electronic
Beacon CR901 common rail injection pump test bench 2000 bar
Technical parameter
Power supply |
220VAC/380VAC |
Common rail pump Bosch |
CP3.3 |
||
Phase |
Single/Three phase |
Control circult voltage |
DC24V/DC12V |
||
Frequency |
50HZ/60HZ |
ECU internal pressure |
0-200VDC(Max) |
||
Electric current |
30A(Max) |
Fuel tank volume |
19L |
||
Motor power |
11 kw |
Noise level |
<85dB |
||
Temperature control |
Heat/Force-air cooling |
Weight |
800 kg |
||
Temperature Setting |
40°C |
Net dimension (H*W*L) |
120*860*1620CM |
||
Ambient Temperature |
<35 °C |
Packing dimension (H*W*L) |
1270*980*1620CM |
||
Maximum rail pressure |
180-240Mpa |
||||
Function
Test of all the manufacturers of common rail injector and pump
Test all of the manufacturers of piezo injectors
Test CAT HEUI (Oil common rail) injector
Test CAT HEUI enginer oil pump
Test CAT 320D common rail pump
EUI EUP CAMBOX Testing
The machine is with two tank- oil tank and diesel tank ,double oil supply system

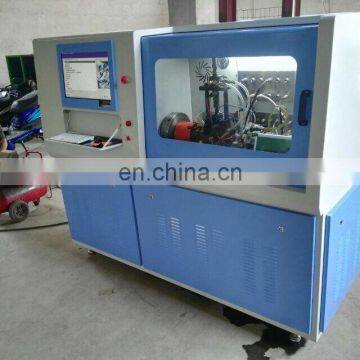

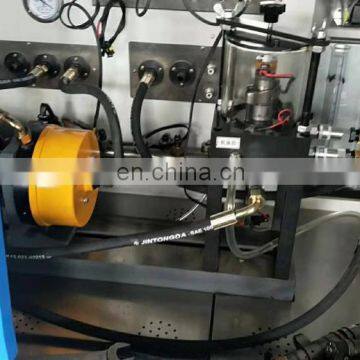

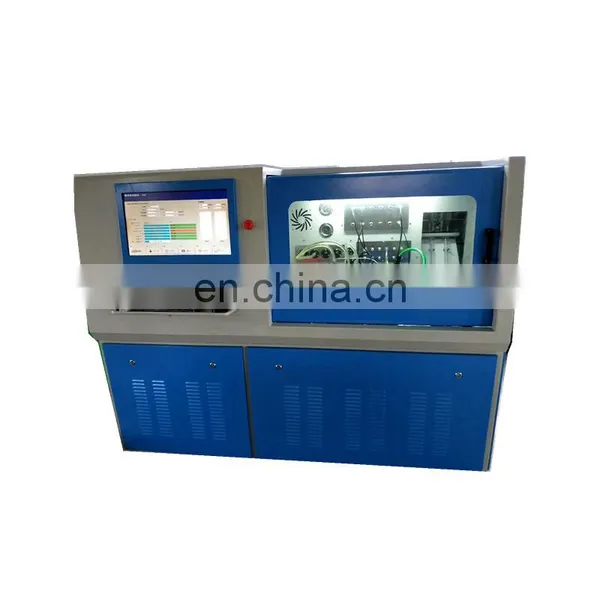

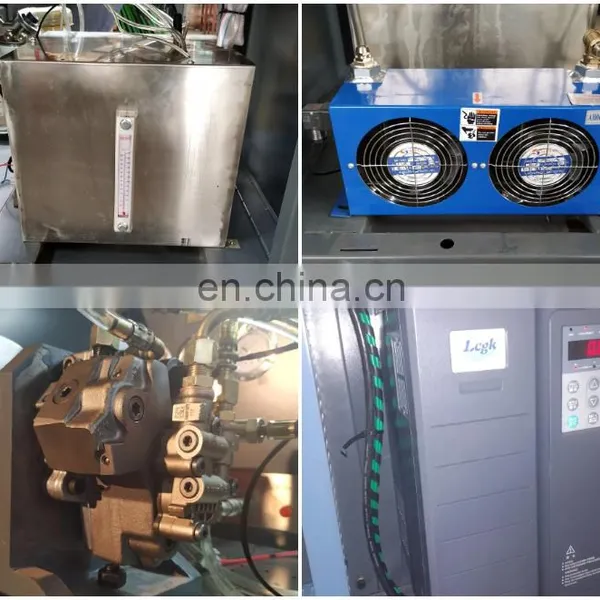

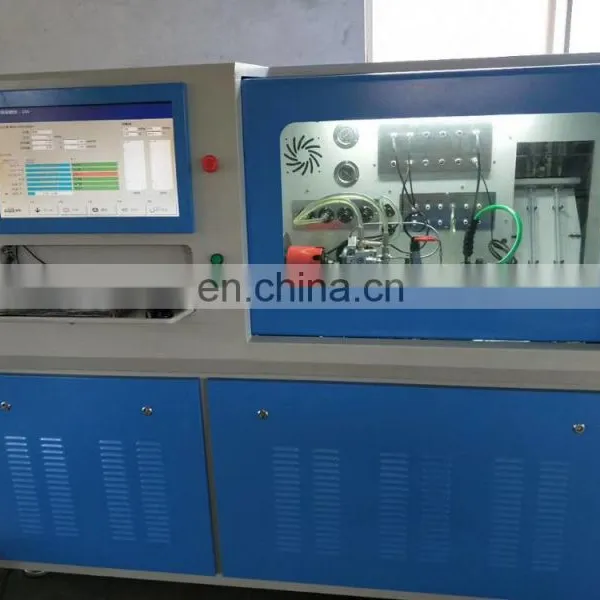

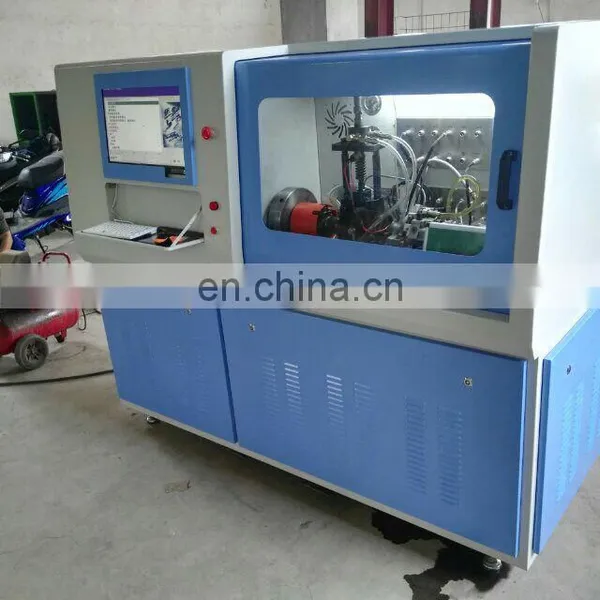

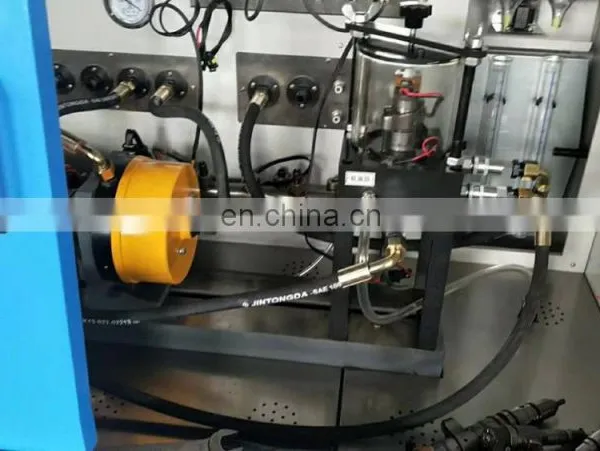

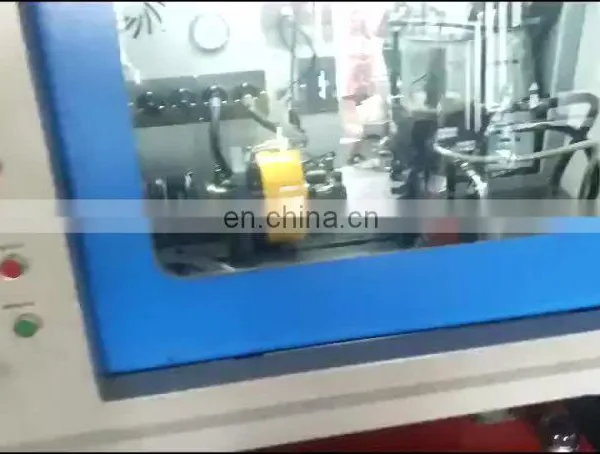

Details Images
Related Products
Product packaging
Certifications
Company Profile
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine . Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers. Our main product include: common rail injector/pump test bench , common rail injector/pump tester (CRDI), diesel injection pump test bench EUI/EUP tester cam box , Denso ECD-V3 ,V4, V5 pump tester , PT Cummings pump and injector tester , common rail tools High quality spare parts: Injector/valve/nozzle/head rotor/plunger.... Welcome to visit our factory and cooperate in the future.
