Home > Products > Common Rail Test Bench > Common Rail Injector Test Stand All Injector Ima Iqa Isa qr Coding CR918S All in One Test Bench
Common Rail Injector Test Stand All Injector Ima Iqa Isa qr Coding CR918S All in One Test Bench
- Qingdao or any China port
- T/T Credit Card
You May Like
-
CR918S Injector Coding PT Injector Pump Test Boten Common Rail Pump and Injector Test Bench
-
Boten CR918S Heui Cat c7 c9 Injector High Pressure Crdi Injector Pump Test Bench
-
Diesel Fuel CR918S 2600 Bar 22 kw High Pressure Denso Common Rail Injector Pump Test Bench
-
CR918S Boten High Pressure Common Rail Test Bench Crdi Iqa Ima Injector Coding Testing Machine
-
CR918s Cr918s-s Common Rail System Fuel Injector Flow Testing Machine Diesel Fuel Injection Pump Test Bench
-
Common Rail Injector Test Bench CR918S HEUI EUI Diesel Fuel Injector Test Equipment
Product Details
| Brand Name | BEACON | Place of Origin | Shandong, China | |
| Model Number | CR918s | Power | Electronic |
Product Description


Description:
6 injectors can be triggered at the same time ,and 6 injectors correction codes can be generated simultaneously!
Accurate response time
Generate oil volume correction code
Test PT pump
Test PT injector
Test HPI Q60 X15
Test Cummins HPI Actuator




FEATURES:
Bosch 6,7,8,9,10-digit IMA encoding generation
Bosch piezo injector IMA,ISA encoding generation
DENSO QR oil volume correction code generation
Delphi C2i,C3i encoding generation
Siemens (VDO) ICC code generation
►Test common rail injector
►Test common rail pump

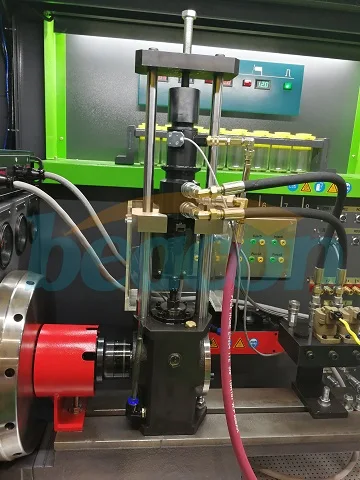

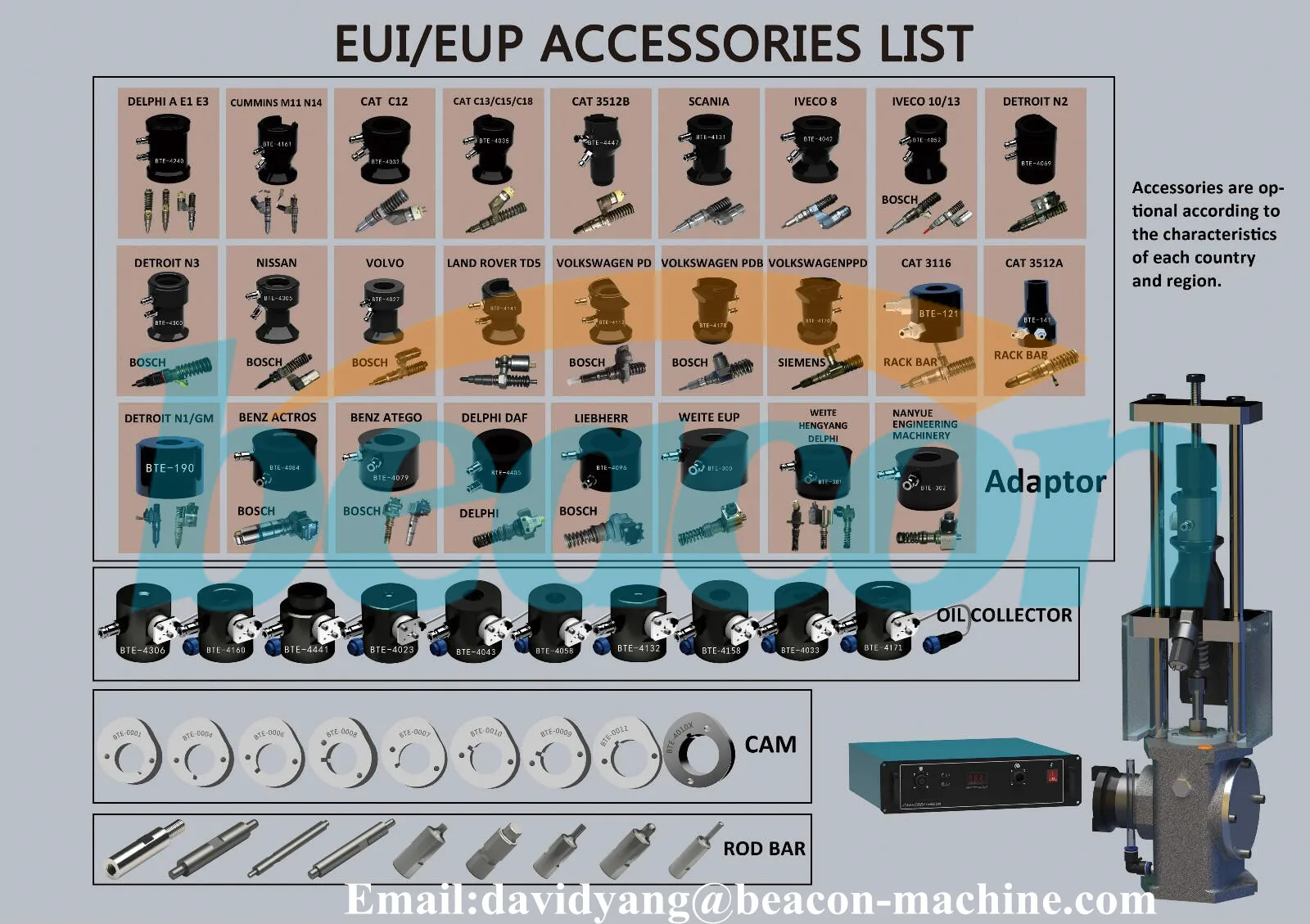

► Test EUI/EUP
►Test the HEUI injector
►Test HEUI actuation pump
►The highest rail pressure is 2600 bar
►Drive motor 22KW
►Injection drive and system voltage monitor
► Common rail with filter function
► Dual DRV configuration
►High pressure filter plugging reminder function
► Waste tank overflow warning
► Oil tank and diesel tank strong integrated air conditioning system




TECHNICAL PARAMETERS:
Main power | 380V/220V | ||||||
Phase | 1/3 | ||||||
Frequency | 50/60hz | ||||||
Current | 45A(MAX) | ||||||
Main Motor | 22kw | ||||||
Main motor rotation | 0-4000 RPM/MIN | ||||||
Oil motor HP/FLOW | 0.19KW/13L/MIN | ||||||
Diesel motor HP/FLOW | 0.19KW/13L/MIN | ||||||
Control circuit voltage | DC12V/24V 350W | ||||||
ECU internal voltage | 0-200V DC(MAX) | ||||||
Oil tank volume | 30L | ||||||
Diesel Tank volume | 52L | ||||||
Tempreature control | Heating/Forced cooling | ||||||
Max rail pressure | 180Mpa 240Mpa(Optional) | ||||||








JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
