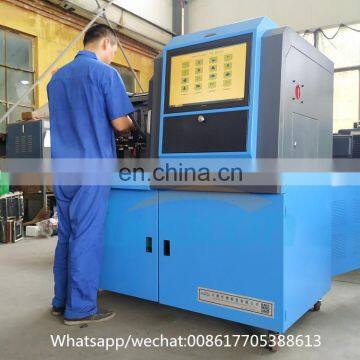

CR318 Auto Electrical Common Rail Injector Test HEUI Injector Test Bench photo-3
CR318 Auto Electrical Common Rail Injector Test HEUI Injector Test Bench photo-4

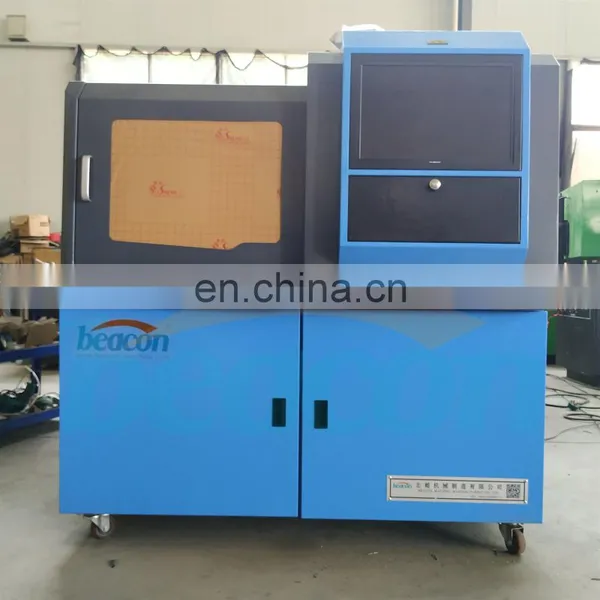

CR318 Auto Electrical Common Rail Injector Test HEUI Injector Test Bench photo-5
CR318 Auto Electrical Common Rail Injector Test HEUI Injector Test Bench photo-6
US$ 4,800 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Beacon
Place of Origin:
Shandong, China
Model Number:
CR318, cr318
Contact Supplier Request Quote Chat Now
Jinan Beacon Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any sea port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Beacon
Place of Origin Shandong, China
Model Number CR318, cr318
Power Electronic

COMMON RAIL INJECTOR TEST BENCH CR318 with double oil road used




MAIN CONFIGURATION:

1.Bosch IQAcoding
2.With all functions of CR300 and CR305
3.inbuilt with reliable actuated pump
4.oil pressure flexible adjustment through automatic or manual ways
5.Oil flow-back self testing Oil actuating response time testing
6.Fuel injection response time testing
7.Solenoid resistance & inductance testing Solenoid pull-up time testing
8.Dynamic condition internal leakage testing
 Notes:  options
 Applicale for HEUI injector,All CR injectors ,Piezo injector ,All HEUI injector
BOSCH CP3.3 common rail pump
BOSCH original common rail +DRV
Common rail system motor Power 5.5KW
HEUI drive power:3KW
Oil system pressure automatic adjustment system
Diesel tan)heating,cooling,liquid level,temperature sensor,temperature security)
Oil tank(heating,cooling,liquid level,temperature sensor)
Industrial PC(with touch screen,built-in WIFI remote training,service,upgrade)
Flow meter(German ZDM) injector flow sensor
Flow meter(German KRACHT) oil flow sensor
Drive circult board(solenoid valve electric parameters:to enhance the voltage,current,time,pull in voltage,current,time,keep voltage,current,time,according to the setting of the parameters of production factory

FUNCTION CHARACTERISTIC:

Test of all the manufacturers of common rail injector Test all of the manufacturers of piezo injectors Test CAT HEUI (Oil common rail) injector Test all of the common rail pump with ZME *Test DENSO HP0 pump *Test CAT HEUI enginer oil pump *Test CAT 320D common rail pump *Test EUI EUP *The function with *means it will also need a mechanical test bench so these function can work. Leak testing 1,Oil static condition leakage testing 2,Fuel static condition leakage testing 3,Oil flow-back under dynamic condition testing Injection testing 1,VL testing (Max injection) 2,TL testing (Middle speed) 3,LL testing (Idle speed) 4,VE testing (Pre-injection) 5,Starting testing 6,Oil flow-back under dynamic condition testing
Technical sheet:
Product Name
Middle pressure HEUI & High pressure CR injector integrated Test Bench
Power Supply
220VAC/380VAC
Phase
Single/Three phase
Frequency
50HZ/60HZ
Electric Current
30A(Max)
Motor Power
5.5/2.2Kw

Test system:

Use newest test system for common rail injector and HEUI cat injector test

With common rail pump

the test bench will bring a CP3 original BOSCH common rail pump

Frequency converter

With high quality durable frequency converter.

Flow sensor:

5-24v DC 200ma flow sensor

Solenoid valve and filter

With high quality solenoid valve and filter

Motor:

Good quality high speed motor to supply power.
