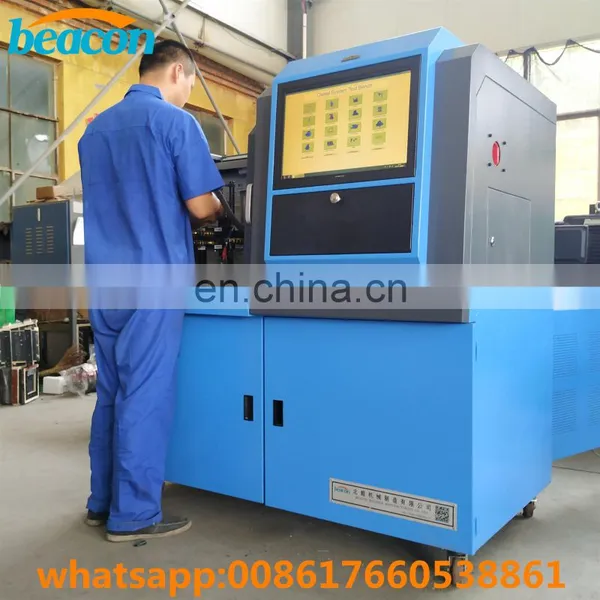

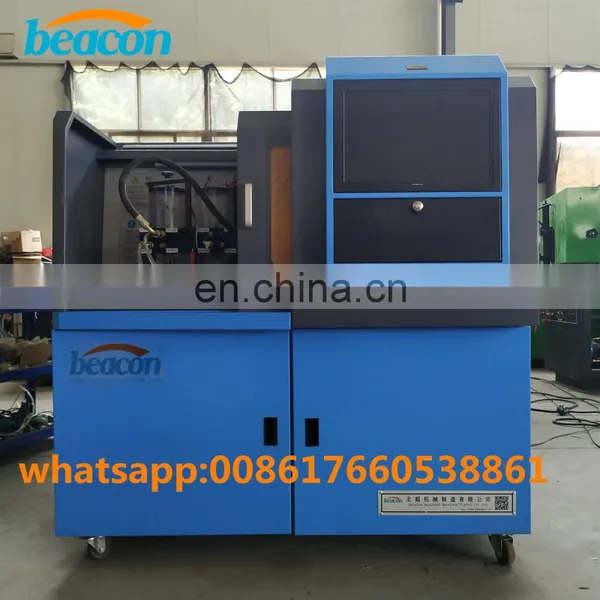

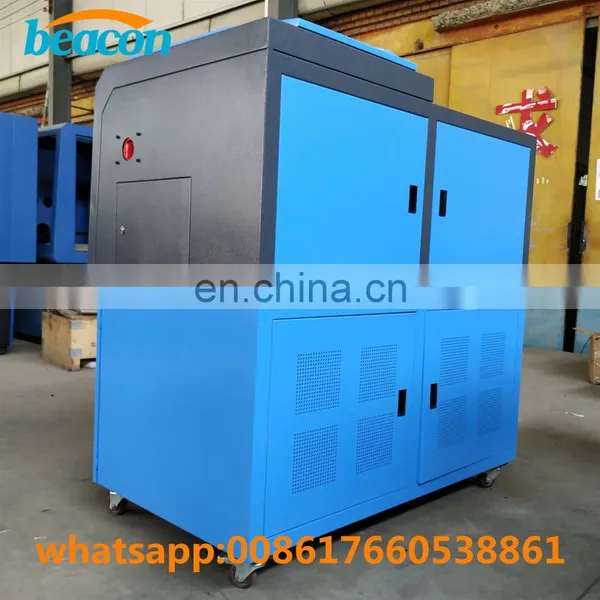

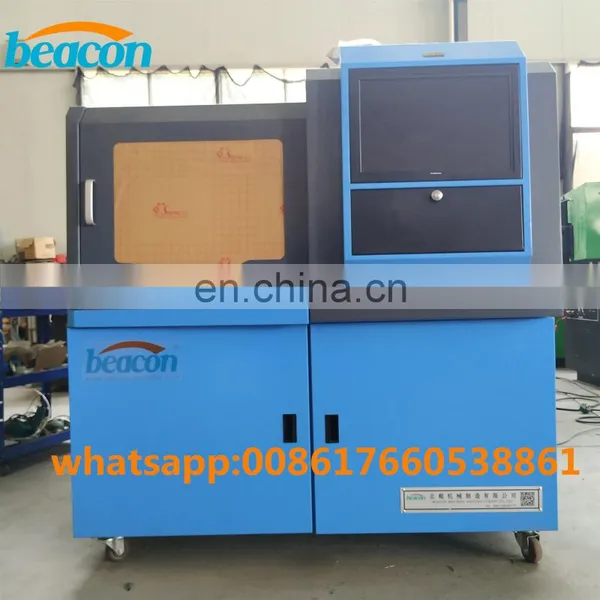

COMMON RAIL INJECTOR TEST BENCH CR318 with double oil road
Function:
Test of all the manufacturers of common rail injector
Test all of the manufacturers of piezo injectors
Test CAT HEUI (Oil common rail) injector
Test all of the common rail pump with ZME*
Test DENSO HP0 pump*
Test CAT HEUI enginer oil pump*
Test CAT 320D common rail pump*
Test EUI EUP*
SPECIFICATIONS |
||||||
Model number |
CRS318 |
Voltage |
220V/380V |
|||
Phase |
Single/Three phase |
Frequency |
50HZ/60HZ |
|||
Electric Current |
30A(Max) |
Certification |
CE,ISO |
|||
Motor Power |
5.5/2.2Kw |
Warranty |
1 Year |
|||
Temperature Setting |
40°C |
Ambient Temperature |
<35 °C |
|||
Maximum Rail Pressure |
180-240Mpa |
Maximun Oil Pressure |
25 Mpa |
|||
Control Circult Voltage |
DC24V/DC12V |
ECU Internal Pressure |
0-200VDC(Max) |
|||
Fuel Tank Volume |
19L |
Noise level |
<85dB |
|||
Applicale for HEUI injector,All CR injectors ,Piezo injector ,All HEUI injector
-BOSCH CP3.3 common rail pump
--BOSCH original common rail +DRV
--Common rail system motor Power 5.5KW
--HEUI drive power:3KW
--Oil system pressure automatic adjustment system
--Diesel tan)heating,cooling,liquid level,temperature sensor,temperature security)
--Oil tank(heating,cooling,liquid level,temperature sensor)
--Industrial PC(with touch screen,built-in WIFI remote training,service,upgrade)
--Flow meter(German ZDM) injector flow sensor
--Flow meter(German KRACHT) oil flow sensor
--Drive circult board(solenoid valve electric parameters:to enhance the voltage,current,time,pull in voltage,current,time,keep voltage,current,time,according to the setting of the parameters of production factory
Testing HEUI injector
Testing CR injector
Testing range
Bosch IQA coding
Inbuilt with reliable actuated pump
Oil pressure flexible adjustment through automatic or manual ways
Oil flow-back self testing
Oil actuating response time testing
Fuel injection response time testing
Solenoid resistance & inductance testing
Solenoid pull-up time testing
Dynamic condition internal leakage testing
Leak testing
1,Oil static condition leakage testing
2,Fuel static condition leakage testing
3,Oil flow-back under dynamic condition testing
Injection testing
1,VL testing (Max injection)
2,TL testing (Middle speed)
3,LL testing (Idle speed)
4,VE testing (Pre-injection)
5,Starting testing
6,Oil flow-back under dynamic condition testing
