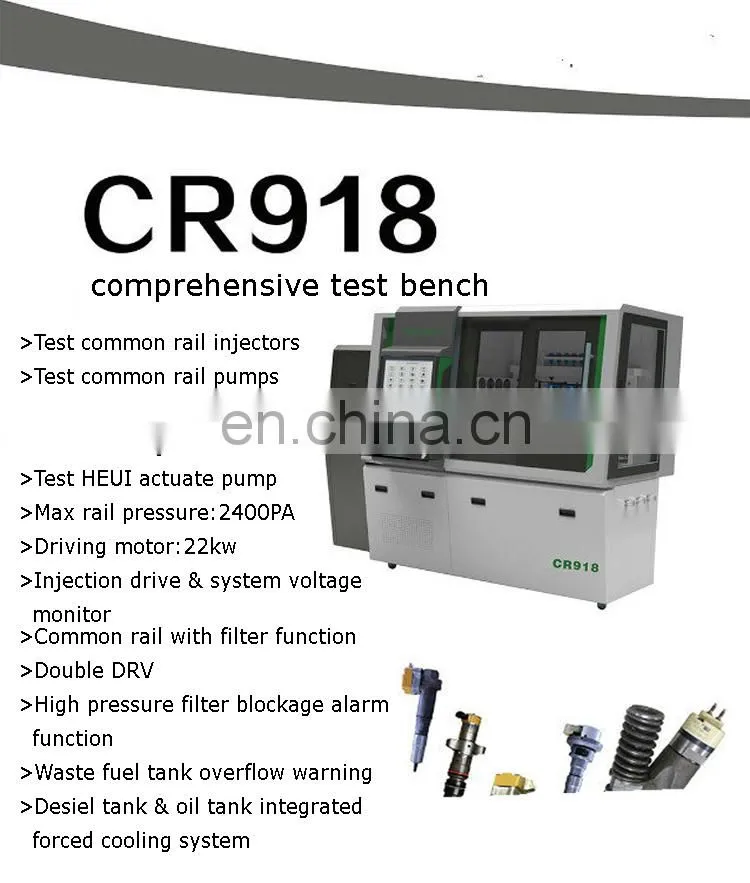

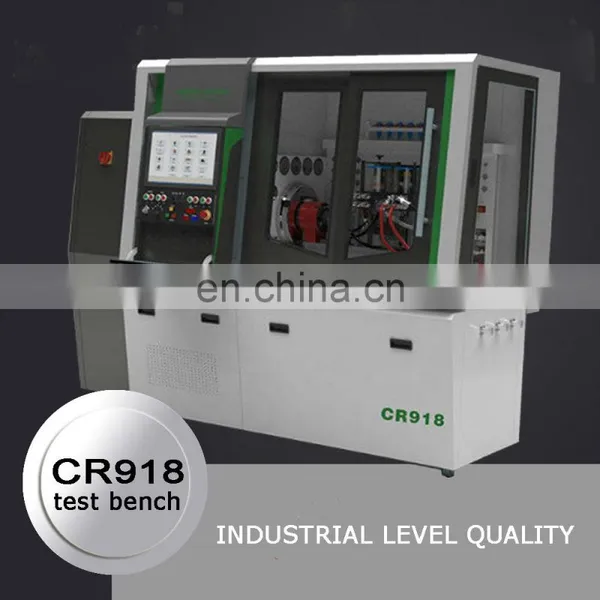

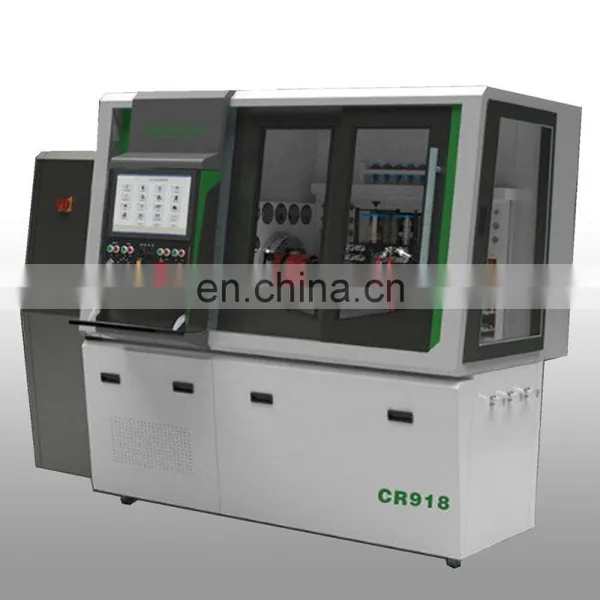

CR918 FULL FUCNTION COMMON RAIL DIESEL INJECTOR TEST BENCH
>>>FUNCTION:

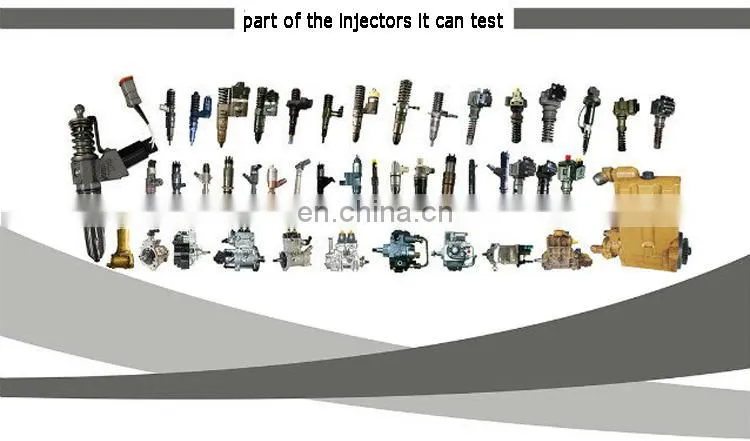

1. Test common rail injectors
2. 2.Test common rail pumps
3. Test EUI/EUP
4. Test HEUI injectors
5. Test HEUI actuate pump
6. Max rail pressure: 2400PA
7. Driving motor: 22KW
8. Injection drive & system voltage monitor
9. Common rail with filter function
10. Double DRV
11. High pressure filter blockage alarm function
12. Waste fuel tank overflow warning
13. Diesel tank & oil tank integrated forced cooling system
>>>TECHNICAL PARAMETER:
Main power |
380V AC 220V AC(Optional) |
Phase |
Three single(optional) |
Frequency |
50Hz/60Hz |
Current |
45A(MAX) |
Main motor |
22KW |
Main motor rotation |
0-4000 RPM/MIN |
Oil motor HP/ Flow |
0.19KW / 13L/MIN |
Diesel motor HP /Flow |
0.19KW / 13L/MIN |
Control circuit voltage |
DC12V/24V 350W |
ECU internal voltage |
0-200V DC(MAX) |
Oil tank volume |
30L |
Diesel Tank volume |
52L |
Temperature control |
Heating/Forced cooling |
Max rail pressure |
180MPa 240MPa(Optional) |
|
Flowmeter(injection) Flowmeter(fuel supplying) |
4—550ml/min 1—400L/H |
Flowmeter(fuel flow back) |
1—400L/H |
Flowmeter(Oil) |
5—600L/H |
Center distance between motor and working bench |
125mm
|
Net Weight |
1100KG |
Dimension |
(L*W*H) 2250*1260*1920mm |
Wooden cage |
(L*W*H) 2350*1500*2100mm |

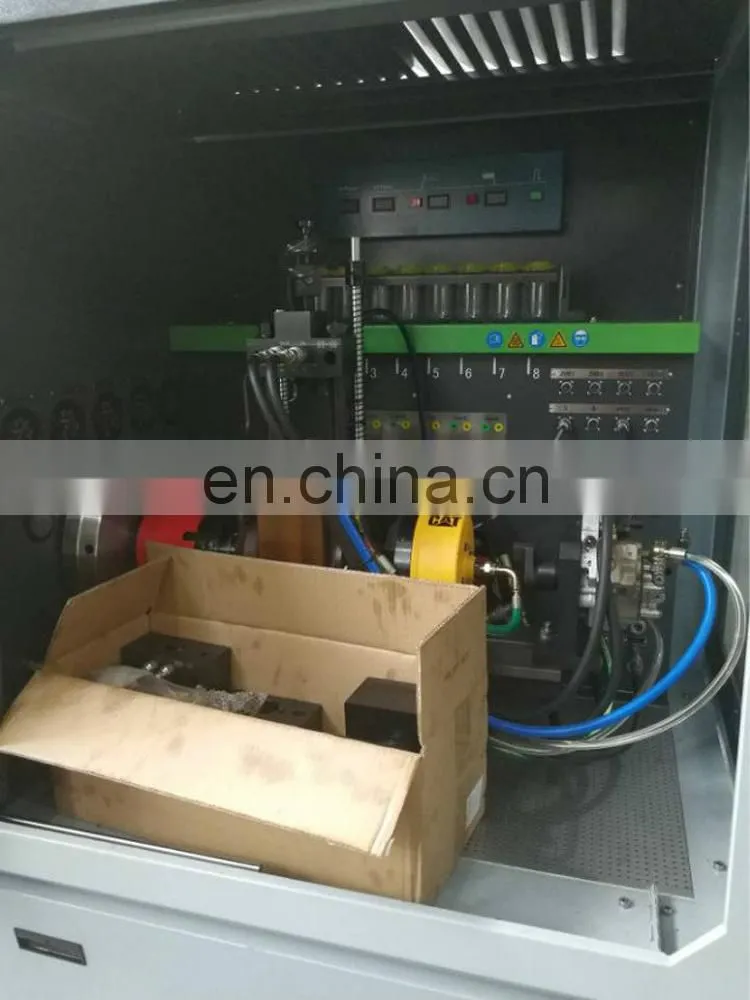

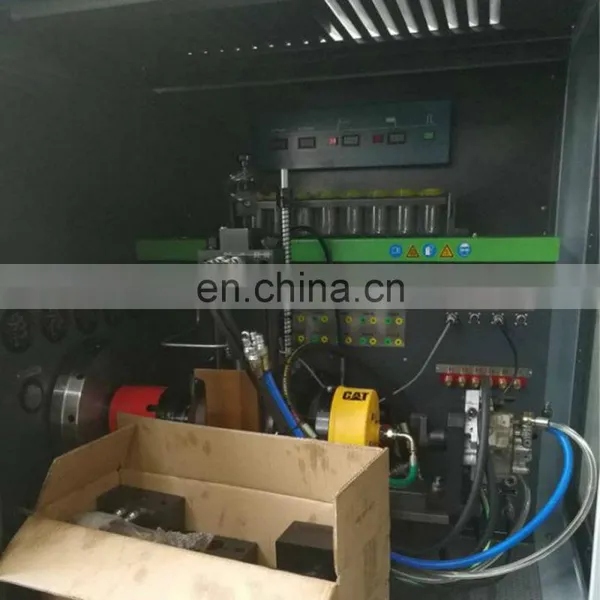

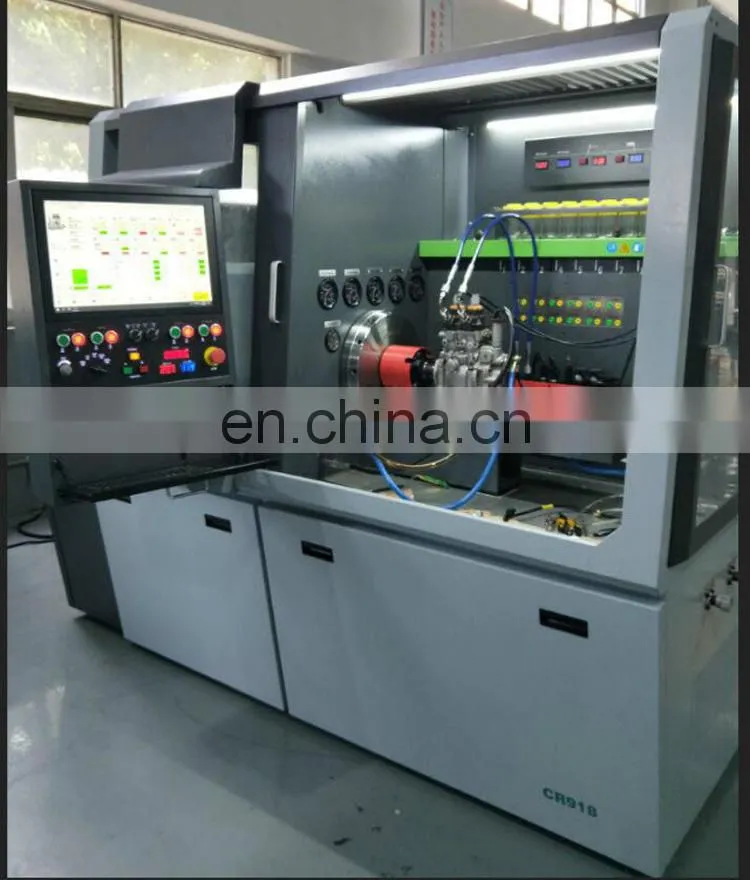

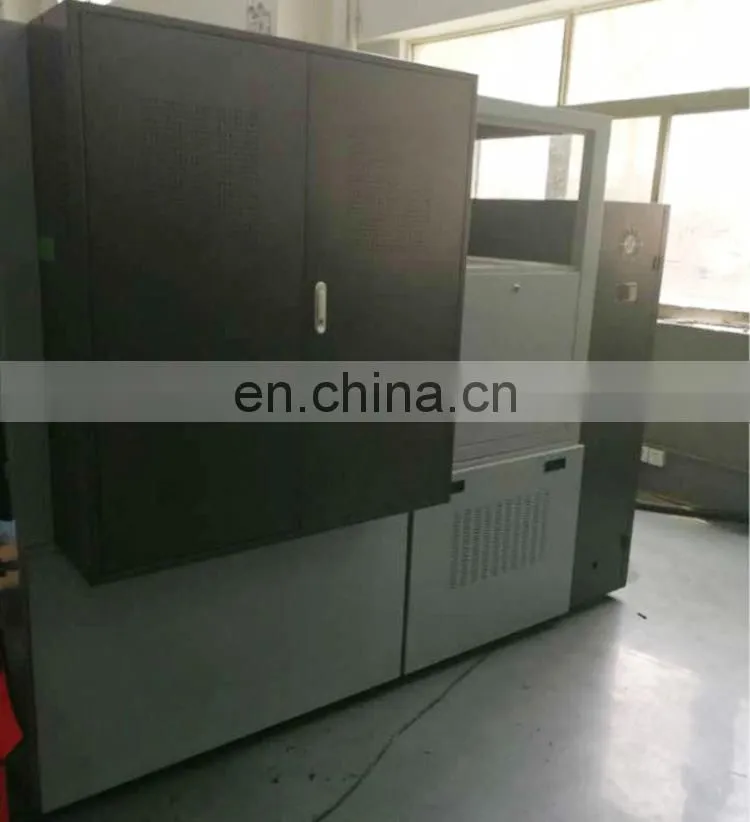

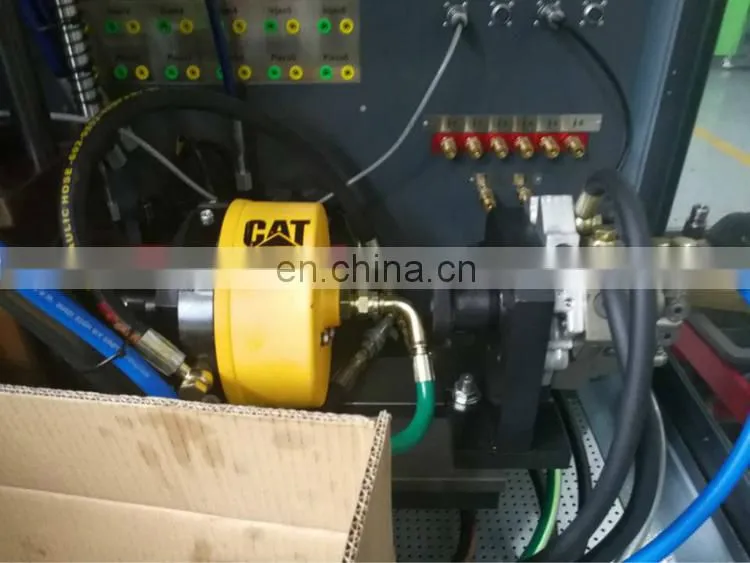

>>>PRODUCT DETAIL
>>>CERTIFICATION

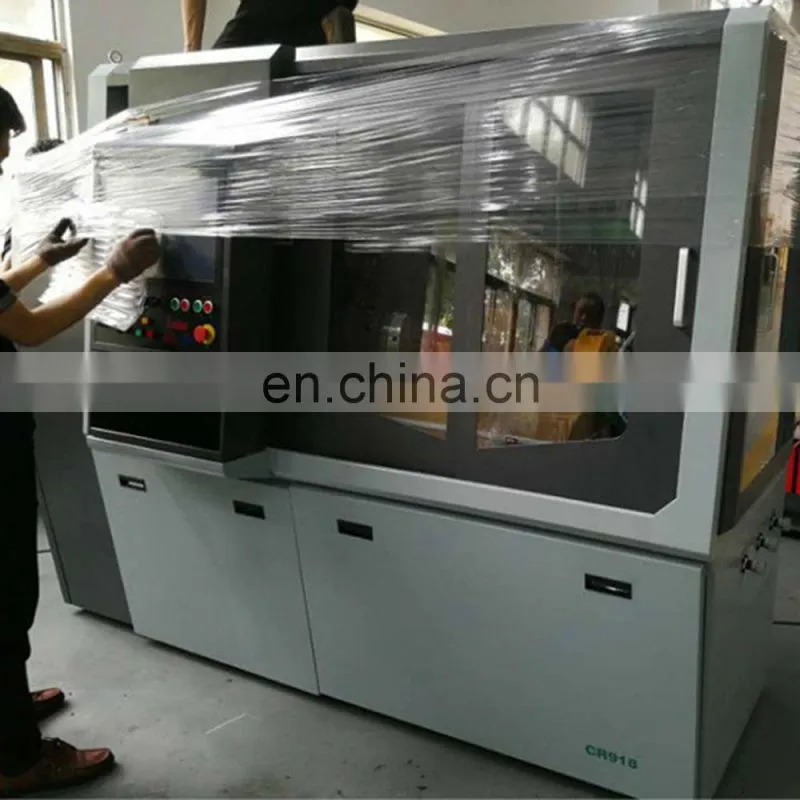

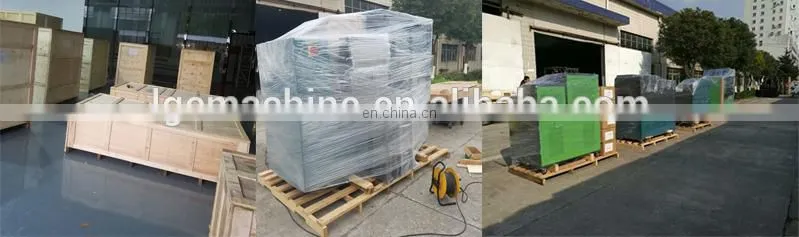

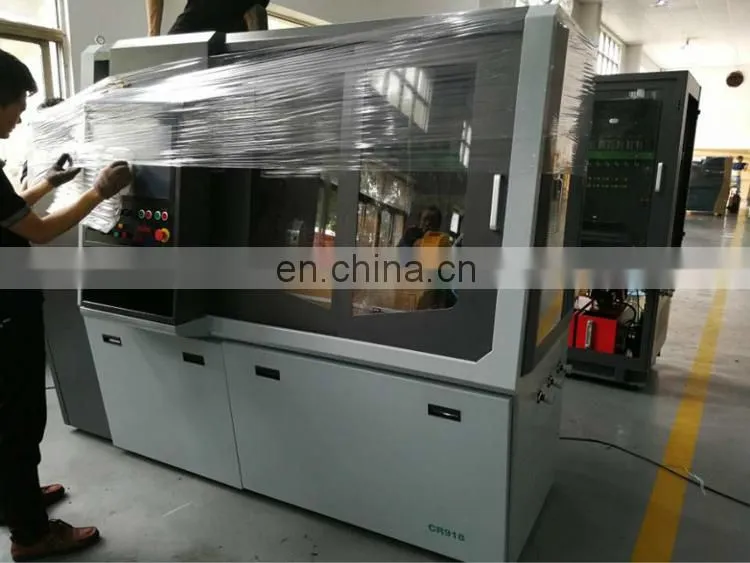

>>> PACKING & SHIPPING
>>> SERVICE & TECHNICAL SUPPORT
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
>>> ABOUT US
Shandong LGC Machine Technology Co.,Ltd is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
Common rail injector test bench
Common rail injector tester (CRDI)
Diesel injection pump test bench EUI/EUP tester cam box
Denso ECD-V3 ,V4, V5 pump tester
PT cummins pump and injector tester
Common rail tools and spare part
Welcome to visit our factory and cooperate in the future.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-14 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
