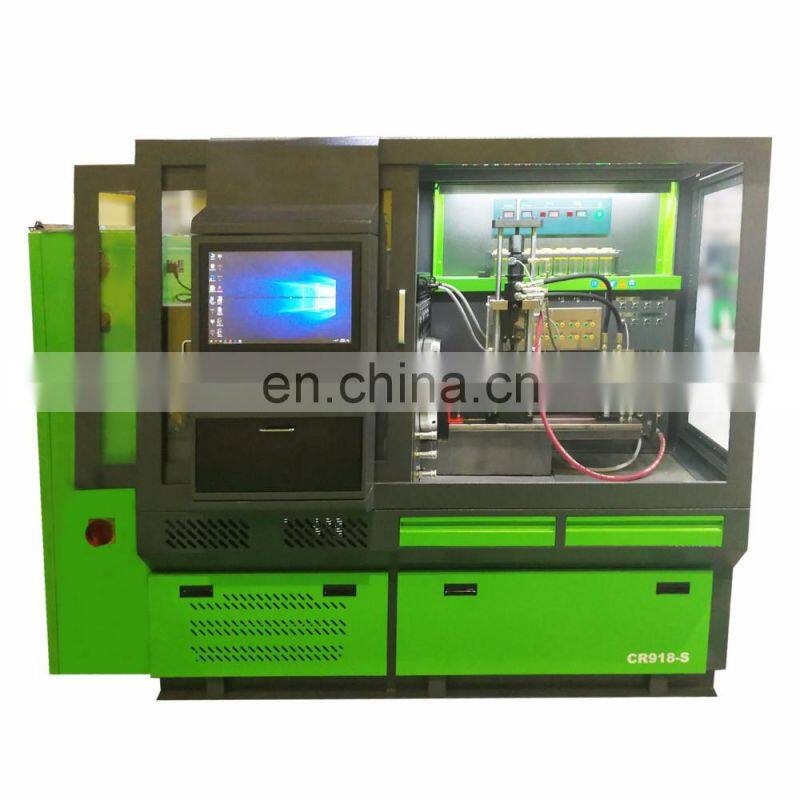

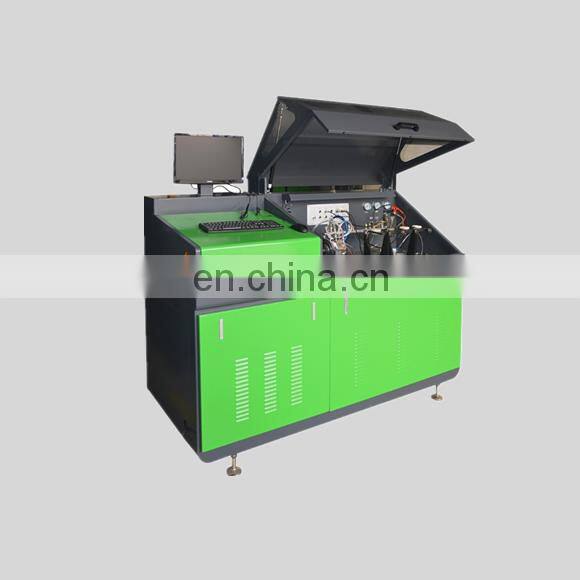

CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function

CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function thumbnail-1
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function thumbnail-2
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function thumbnail-3
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function thumbnail-4
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function thumbnail-5
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function thumbnail-6
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function photo-1
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function photo-2
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function photo-3
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function photo-4
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function photo-5
CR918S PT Pump Test Common Rail Injector Pump Test Bench With Coding Function photo-6
US$ 19,500 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LGC
Place of Origin:
Shandong, China
Model Number:
CR918S
Contact Supplier Request Quote Chat Now
Jinan Beacon Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LGC
Place of Origin Shandong, China
Model Number CR918S
Power Electronic
Product Description
SPECIFICATIONS
Model number
CR918S
Voltage
220V
Main power
380V AC 220V(Optional)
Phase
Three,single(Optional)
Frequency
50HZ/60HZ
Current
45A(MAX)
Main Motor
22kw
Main motor rotation
0-4000 RPM/MIN
Oil motor HP/FLOW
0.19KW/13L/MIN
Diesel motor HP/FLOW
0.19KW/13L/MIN
Control circuit voltage
DC12V/24V 350W
ECU internal voltage
0-200V DC(MAX)
Oil tank volume
30L
Diesel Tank volume
52L
Tempreature control
Heating/Forced cooling
Max rail pressure
180Mpa 240Mpa(Optional)
Flowmeter(injection)
4-550ml/min
Flowmeter(pump supply)
1-400L/H
Flowmeter(pump flowback)
1-400L/H
Flowmeter(oil)
5-600L/H
Center distance between motor and working bench
125mm
Weight
1100KG
Outlook size net
(LxWxH)2400x1350x1880
Wooden case
(LxWxH)2500x1480x2050

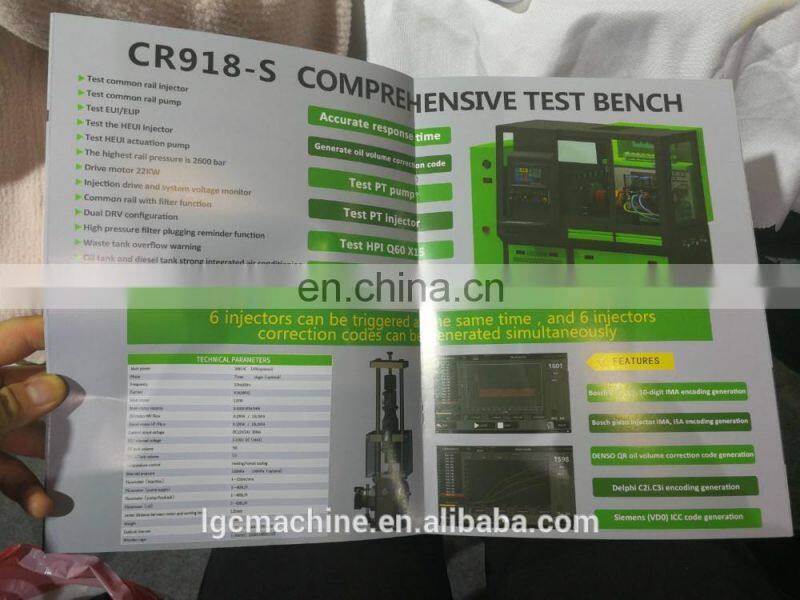

CR918S PT pump test common rail injector pump test bench with coding function

6 pcs injectors can be triggered at the same time , and 6 injectors correction codes can be generated simultaneously!
Accurate response time
Generate oil volume correction code
Test PT pump
Test PT injector
Test HPI Q60 X15
Test Cummins HPI Actuator

FUNCTION CHARACTERISTIC:

Bosch 6,7,8,9,10-digit IMA encoding generation

Bosch piezo injector IMA,ISA encoding generation

DENSO QR oil volume correction code generation

Delphi C2i,C3i encoding generation

Siemens (VDO) ICC code generation


FUNCTION CHARACTERISTIC:

►Test common rail injector
►Test common rail pump
►Test EUI/EUP
►Test the HEUI injector
►Test HEUI actuation pump
►The highest rail pressure is 2600 bar
►Drive motor 22KW
►Injection drive and system voltage monitor
►Common rail with filter function
►Dual DRV configuration
►High pressure filter plugging reminder function
►Waste tank overflow warning
►Oil tank and diesel tank strong integrated air conditioning system

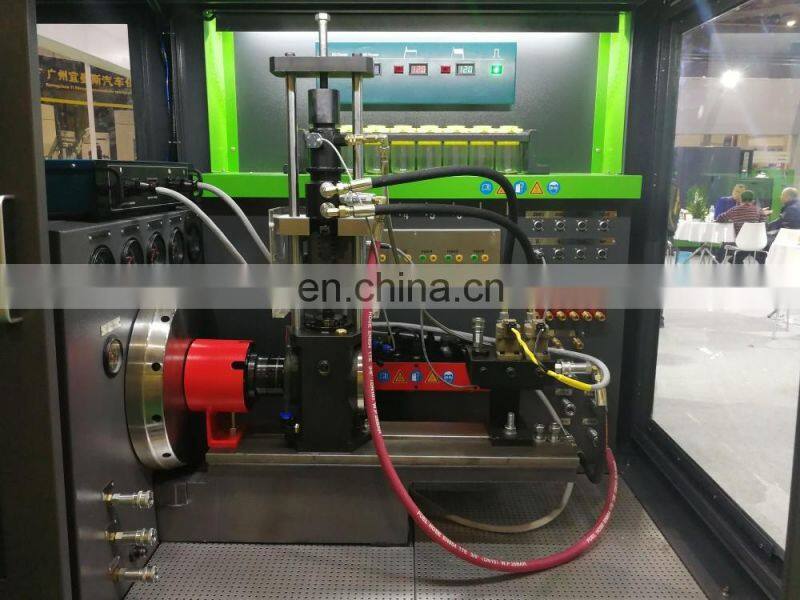

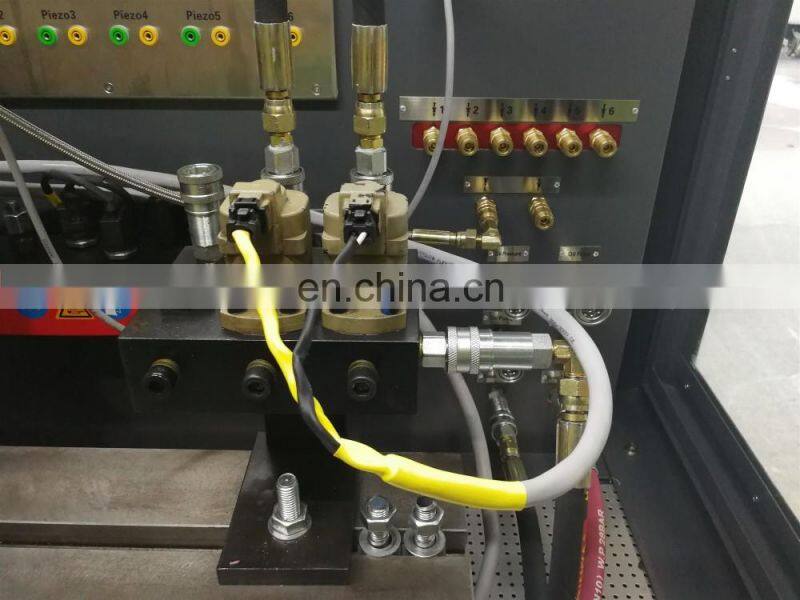

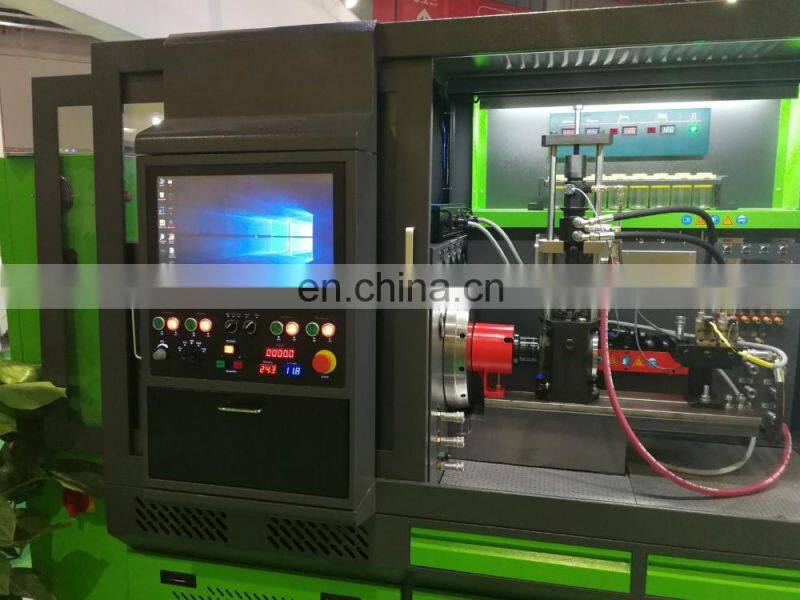

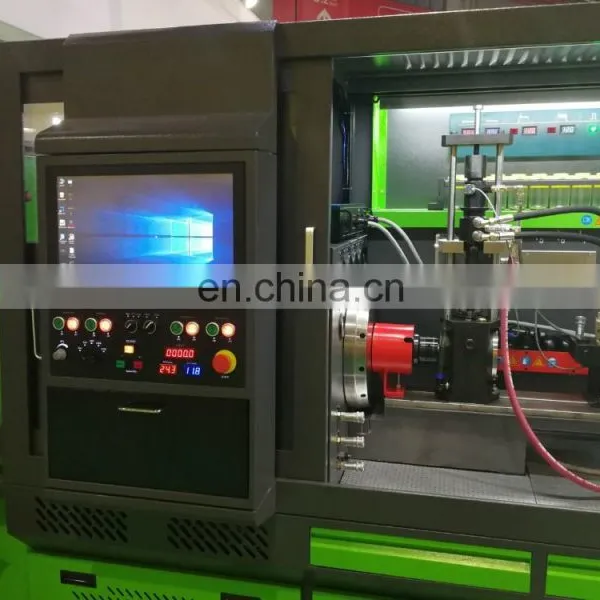

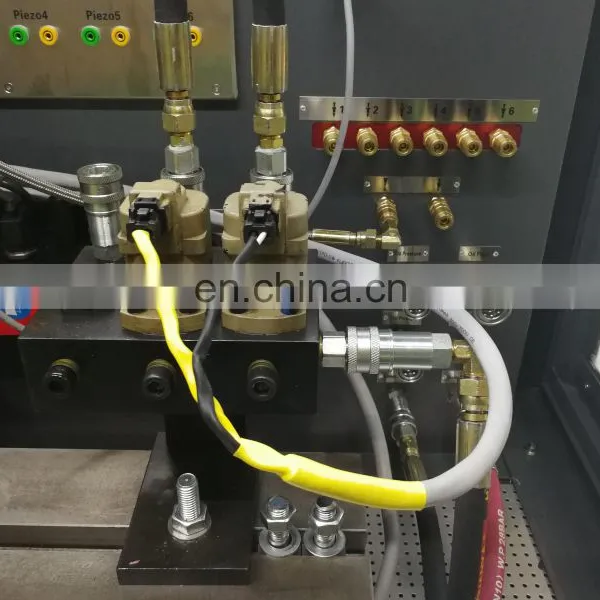

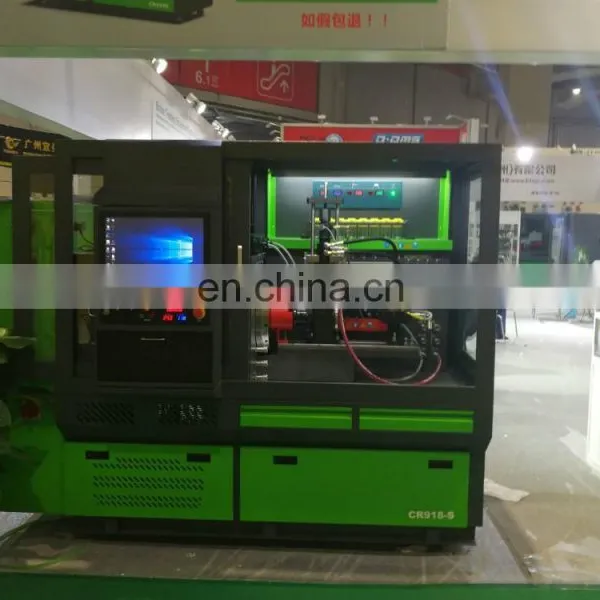

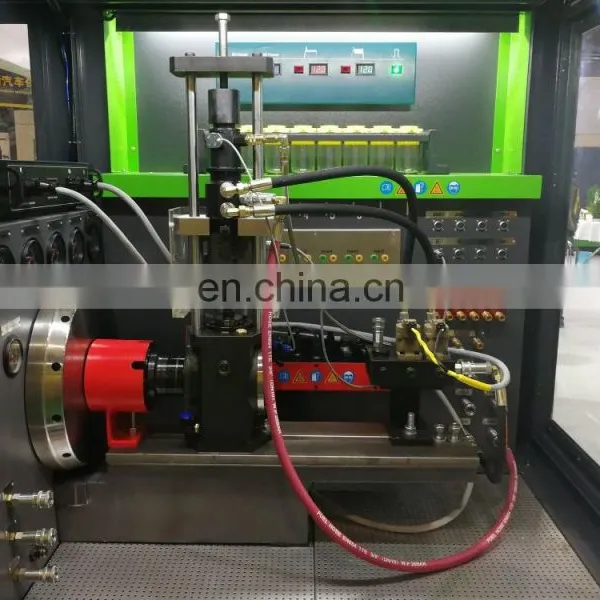

Detailed Images
Certifications

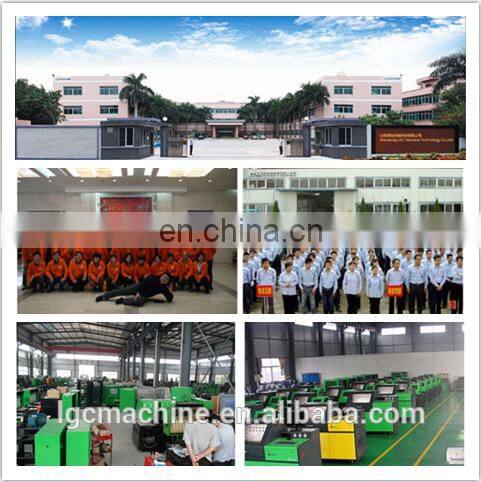

Company Information

Shandong LGC Machine Technology Co.,Ltd

is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China,our products already sold to more than 100 countries.Our products including common rail injector test bench,common rail injector tester (CRDI),diesel injection pump test bench EUI/EUP tester cam box ,Denso ECDV3 ,V4, V5 pump tester,PT cummins pump and injector tester,common rail tools and spare part ,Welcome you to visit our factory and cooperate in the future.


CR918S PT pump test common rail injector pump test bench with coding function

Packing & Delivery
Packaging
Size
7CBM
Weight
1700kg



Packaging Details

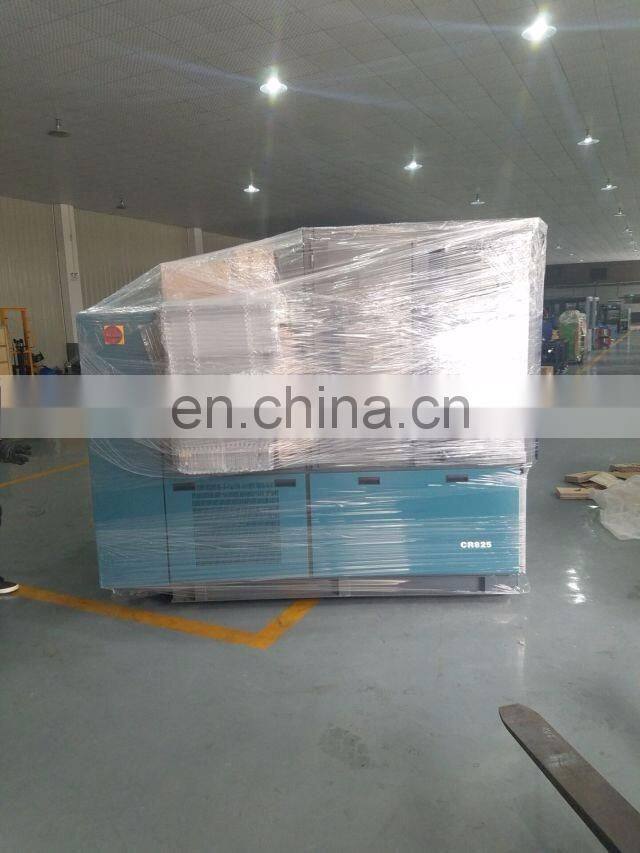

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
7CBM
Weight
1700kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
