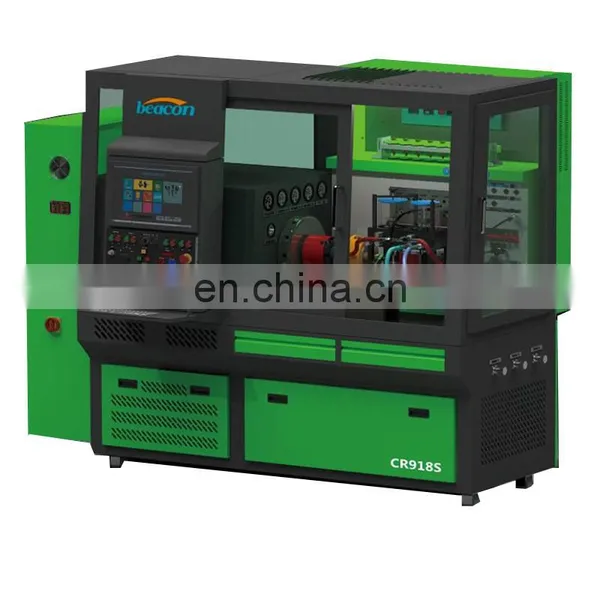

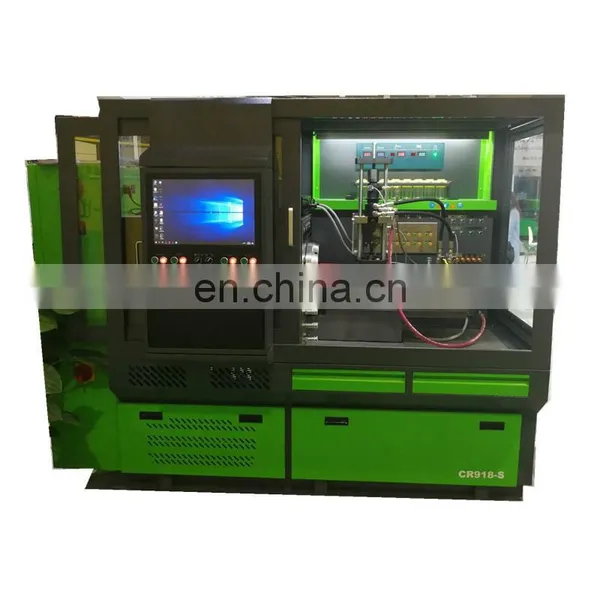

Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function

Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function thumbnail-1
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function thumbnail-2
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function thumbnail-3
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function thumbnail-4
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function thumbnail-5
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function thumbnail-6
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function photo-1
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function photo-2
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function photo-3
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function photo-4
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function photo-5
Automotive Diagnostic CR918S Common Rail Pump and Injector Test Bench Machine With PT and Coding Function photo-6
US$ 19,500 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LGC
Place of Origin:
Shandong, China
Model Number:
CR918S
Contact Supplier Request Quote Chat Now
Jinan Beacon Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or other any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LGC
Place of Origin Shandong, China
Model Number CR918S
Power Electronic
Product Description


6 pcs injectors can be triggered at the same time , and 6 injectors correction codes can be generated simultaneously!
Accurate response time
Generate oil volume correction code
Test PT pump
Test PT injector
Test HPI Q60 X15
Test Cummins HPI Actuator
FEATURES:
Bosch 6,7,8,9,10-digit IMA encoding generation
Bosch piezo injector IMA,ISA encoding generation
DENSO QR oil volume correction code generation
Delphi C2i,C3i encoding generation
Siemens (VDO) ICC code generation
►Test common rail injector
►Test common rail pump
►Test EUI/EUP
►Test the HEUI injector
►Test HEUI actuation pump
►The highest rail pressure is 2600 bar
►Drive motor 22KW
►Injection drive and system voltage monitor
►Common rail with filter function
►Dual DRV configuration
►High pressure filter plugging reminder function
►Waste tank overflow warning
►Oil tank and diesel tank strong integrated air conditioning system

TECHNICAL PARAMETERS

Main power
380V AC 220V(Optional)
Phase
Three,single(Optional)
Frequency
50HZ/60HZ
Current
45A(MAX)
Main Motor
22kw
Main motor rotation
0-4000 RPM/MIN
Oil motor HP/FLOW
0.19KW/13L/MIN
Diesel motor HP/FLOW
0.19KW/13L/MIN
Control circuit voltage
DC12V/24V 350W
ECU internal voltage
0-200V DC(MAX)
Oil tank volume
30L
Diesel Tank volume
52L
Tempreature control
Heating/Forced cooling
Max rail pressure
180Mpa 240Mpa(Optional)
Flowmeter(injection)
4-550ml/min
Flowmeter(pump supply)
1-400L/H
Flowmeter(pump flowback)
1-400L/H
Flowmeter(oil)
5-600L/H
Center distance between motor and working bench
125mm
Weight
1100KG
Outlook size net
(LxWxH)2400x1350x1880
Wooden cage
(LxWxH)2500x1480x2050

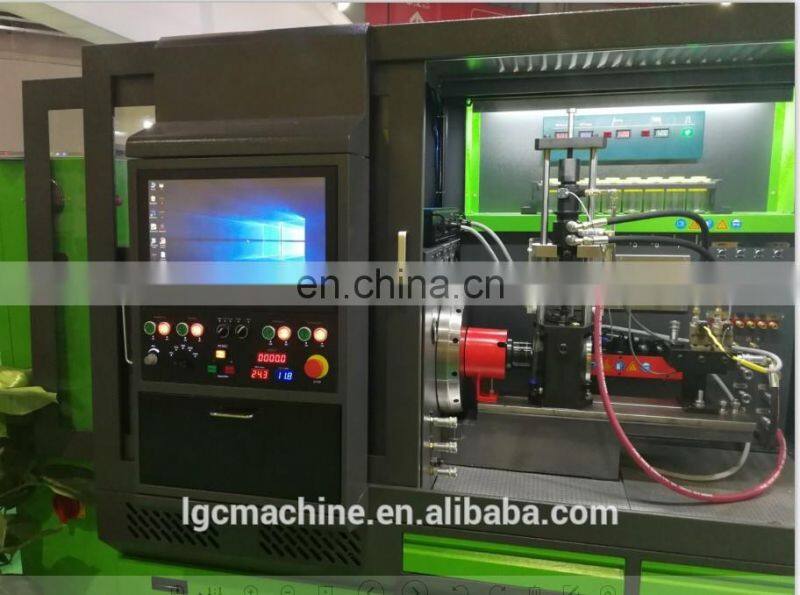

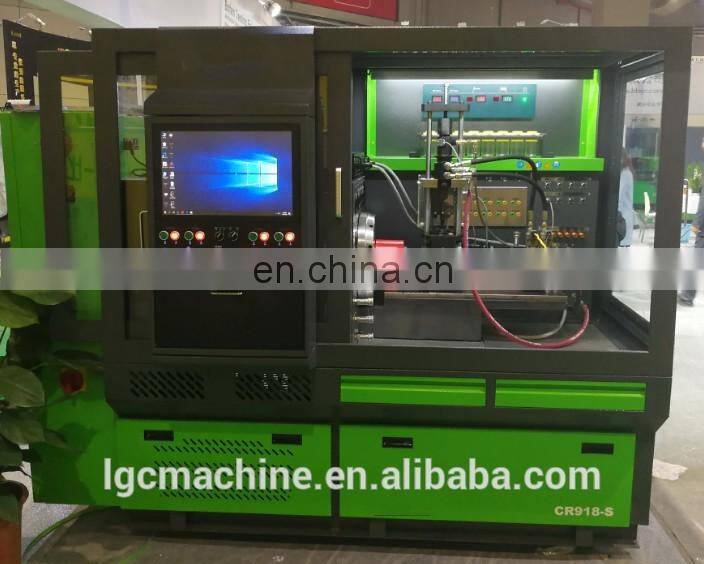

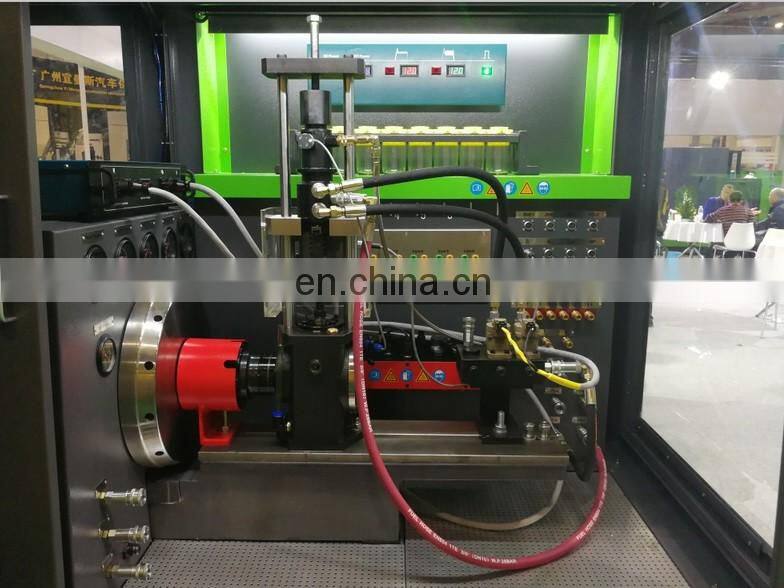

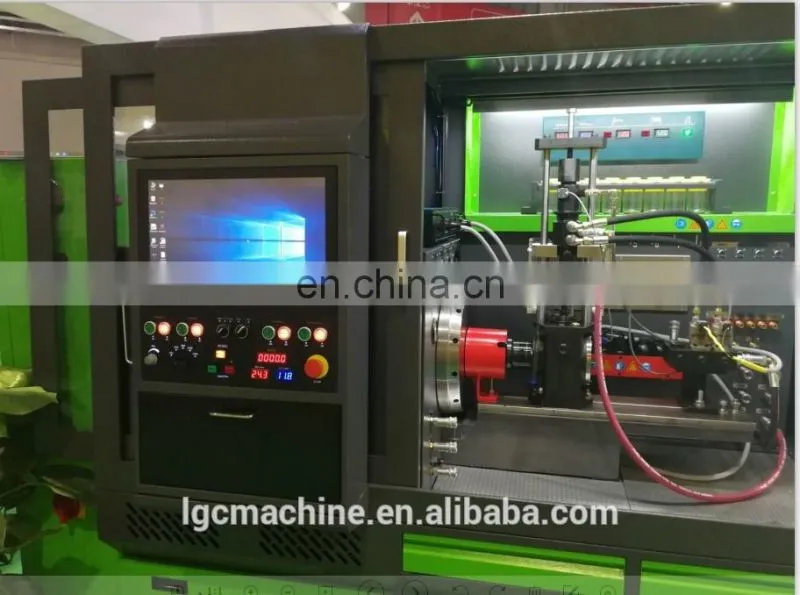

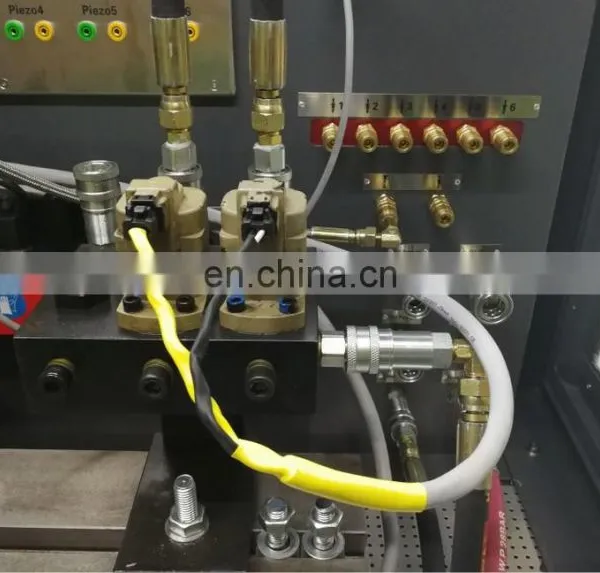

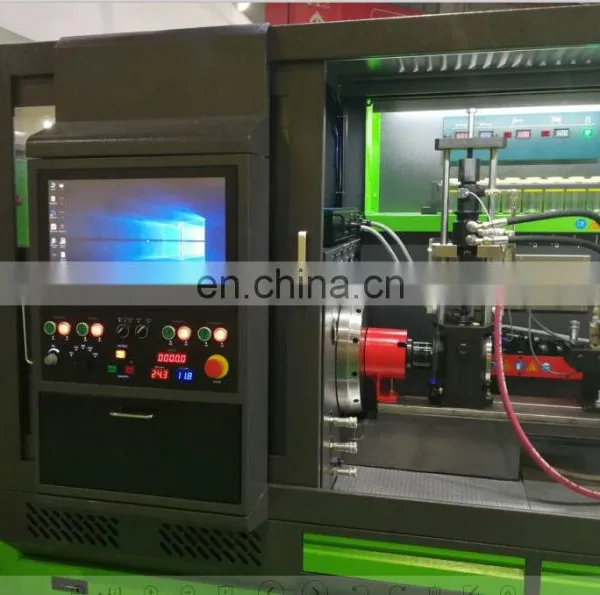

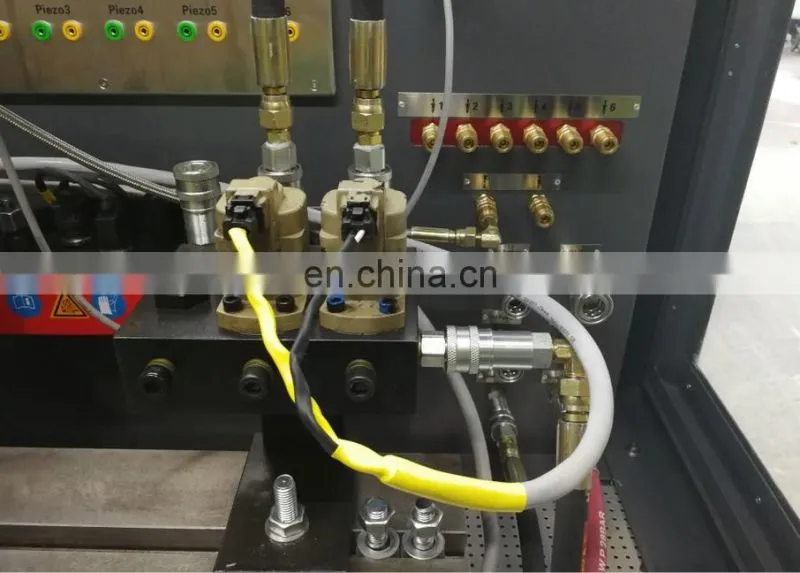

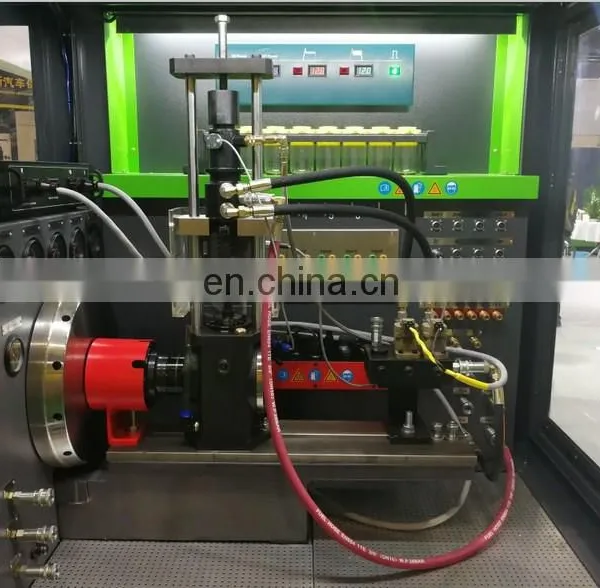

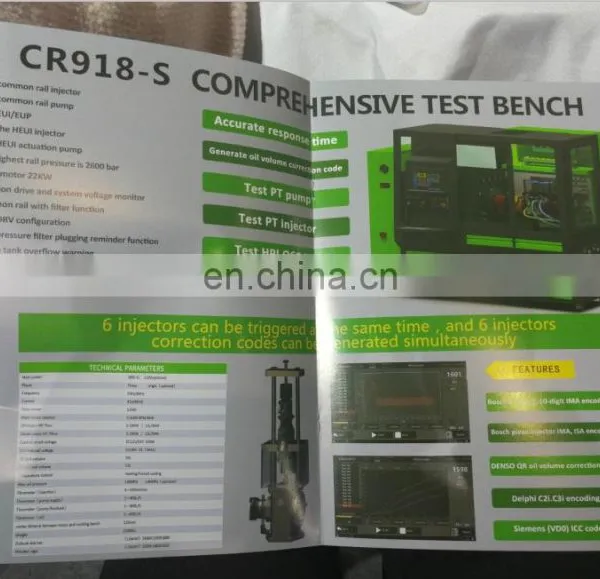

Detailed Images


Related Products

Pls point the model number , you will see more details:

8 cylinder 12psm test bench
EPS100 CR injector test bench
EPT2000 cummins injector test bench
cr825 multi-function test bench
LGC4000 test bench with computer control
CRS-1000 CR injector tester
LGC816 CR injector pump test bench
LGC-CR918 test bench
PQ1000 CR injector tester
PT212 cummins pump test bench
crs709 CR injector pump test bench
crm-100 3 stage tools
LGC-D3 turbochager balancing machine
vp37 pump tester
vp44 pump tester
EUI EUP CAMBOX
12 cylinder 12psb diesel test bench
EPS200 cr injector test bench
crs4000 diesel test bench
cr318 heui ,CR injector test bench
Packing & Delivery
Certifications
Our Company

Shandong LGC Machine Technology Co.,Ltd is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries .
Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part ,
Welcome you to visit our factory and cooperate in the future.

FAQ

1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.


2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.

3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.

4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.

5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
