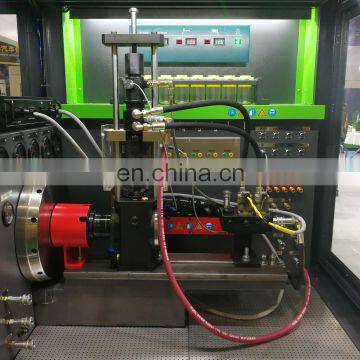

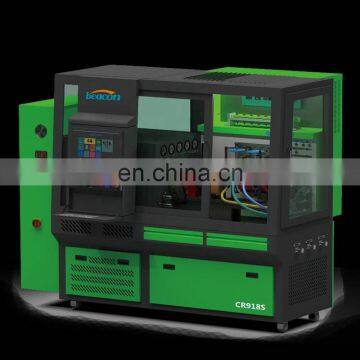

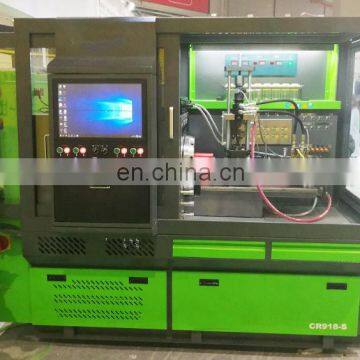

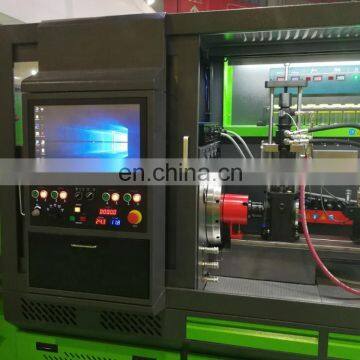

cr918s common rail comprehensive test bench with 6 injectors triggered at one time
- 100 Set / Sets per Month
- Qing Dao or any other port in China
- T/T Credit Card
- ECONOMIC CHOICE BC-CR708 COMMON RAIL INJECTOR TEST BENCH with HEUI EUI EUP function
- BC-CR718 Diesel Fuel Common Rail Injector Test Bench
- BC3000 diesel fuel injection pump test bench
- BCS815 electronic fuel delivery measuring system diesel injection pump test bench
- New Design CR918 full function common rail diesel injector test bench
- CR918S PT pump test common rail injector pump test bench with coding function
Product Details
Brand Name: | BEACON | Place of Origin: | Shandong, China | Model Number: | cr918s |
Certification: | ISO CE | Voltage: | 220V/380V | ||
Power: | 22KW | Warranty: | 1 Years, one year for fee, technical support for life | Applicable Models: | vehicle of all manufacturers |
Product Description

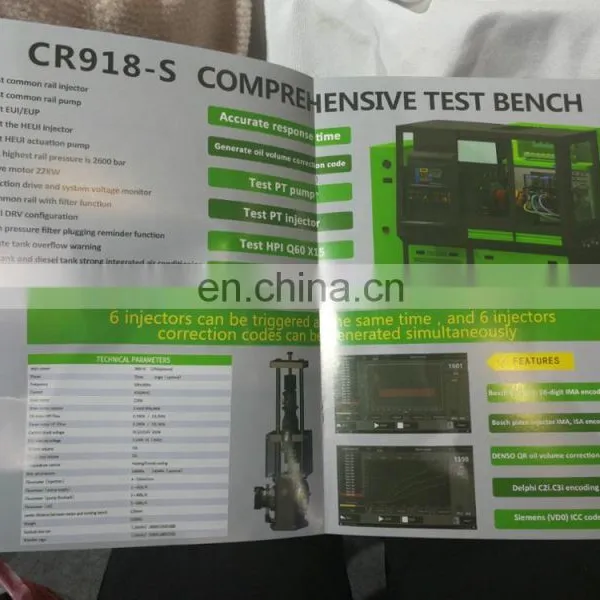

CR918S COMPREHENSIVE COMMON RAIL TEST BENCH
FEATURES:
Bosch 6,7,8,9,10-digit IMA encoding generation
Bosch piezo injector IMA,ISA encoding generation
DENSO QR oil volume correction code generation
Delphi C2i,C3i encoding generation
Siemens (VDO) ICC code generation
►Test common rail injector
►Test common rail pump
►Test EUI/EUP
►Test the HEUI injector
►Test HEUI actuation pump
►The highest rail pressure : 2600 bar
►Drive motor: 22KW
►Injection drive and system voltage monitor
►Common rail with filter function
►Dual DRV configuration
►High pressure filter plugging reminder function
►Waste tank overflow warning
►Oil tank and diesel tank strong integrated air conditioning system
Main power | 380V AC / 220V (Optional) | Diesel Tank volume | 52L |
Phase | Three,single(Optional) | Temperature control | Heating/Forced cooling |
Frequency | 50HZ/60HZ | Max rail pressure | 180Mpa 240Mpa(Optional) |
Current | 45A(MAX) | Flowmeter (injection) | 4-550ml/min |
Main Motor | 22kw | Flowmeter (pump supply) | 1-400L/H |
Main motor rotation | 0-4000 RPM/MIN | Flowmeter (pump flowback) | 1-400L/H |
Oil motor HP/FLOW | 0.19KW/13L/MIN | Flowmeter(oil) | 5-600L/H |
Diesel motor HP/FLOW | 0.19KW/13L/MIN | Center distance between motor and working bench | 125mm |
Control circuit voltage | DC12V/24V 350W | Weight | 1100KG |
ECU internal voltage | 0-200V DC(MAX) | Outlook size net | (LxWxH)2400x1350x1880mm |
Oil tank volume | 30L | Wooden cage | (LxWxH)2500x1480x2050mm |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing Details : standard export packing with wooden cage or customized
Delivery Details : 7-14 days after order
Factory
Team
Our Team
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump
test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical
support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-14 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
