Home > Electrical & Electronics > Power Supply & Distribution > Power Distribution Cabinet & Box > Acrel ANSVG100-400/BC Static Var Generator to Compensate Imbalance

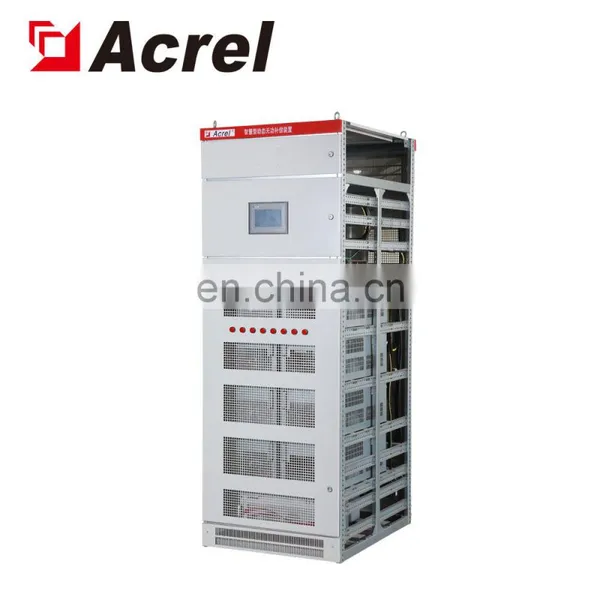

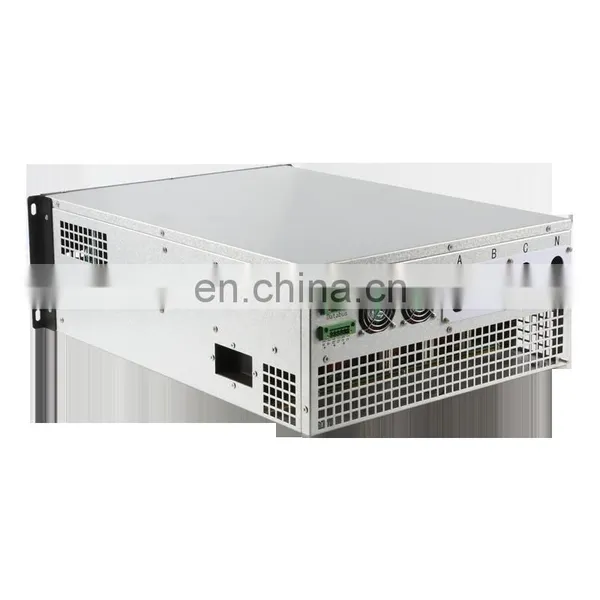

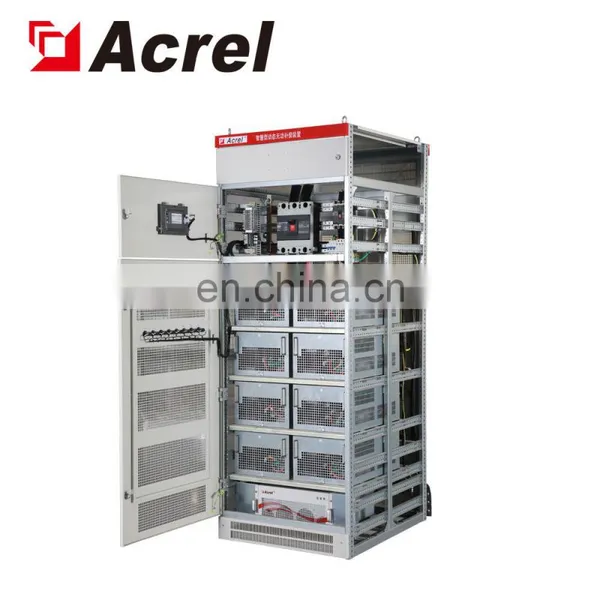

Acrel ANSVG100-400/BC Static Var Generator to Compensate Imbalance
US$ 6,223 - 6,223
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ANSVG100-400/BC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ANSVG100-400/BC Static Var Generator for Reactive Power CompensationUS$ 6,223 - 6,223MOQ: 1 Piece -
Acrel Office Building Smart Lighting Control System Switch Driver ASL100-S12/16US$ 310.8 - 310.8MOQ: 1 Piece
-
SCR Dimming Drive ASL100-TD2/5 Used in Smart Lighting Control System Acrel 300286US$ 166 - 166MOQ: 1 Piece
-
Acrel 300286.SZ ARTM-Pn Wireless Temperature Measuring DisplayerUS$ 155.4 - 155.4MOQ: 1 Piece
-
Acrel 300286.SZ ARTM-Pn Wireless Temperature Measuring Device Used in High Low Voltage CabibetUS$ 155.4 - 155.4MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ANSVG100-400/BC
Product Description
ANSVG: Static Var Generator
ANSVG: Static Var Generator
General
Static var generator is a new type of power electronics used to compensate for reactive power, harmonics, and regulation
imbalances. Mainly used in hospitals, commercial plazas, manufacturing, data centers, charging piles, airports, photovoltaic and other industries.
Features
1）Flexible compensation method：Compensating for reactive power from the load，filter out harmonics within 5th, 7th, 9th, 11th, and 13th;
2）Ability of managing three-phase imbalance;
3）Linear compensation，Response time ≤ 5ms;
4）Humanized human-computer interaction interface, which displays real-time power quality information of the system and the ontology. This interface has the ability to control the device remotely and easy to operate;
5）Adopt imported IGBT which has high power density and high reliability;
6）Using DSP digital control system for high speed detection and calculation;
7）With remote communication interface, real-time monitoring through PC;
8）Standard modular design which reduces lead times and increases reliability and maintainability.
2）Ability of managing three-phase imbalance;
3）Linear compensation，Response time ≤ 5ms;
4）Humanized human-computer interaction interface, which displays real-time power quality information of the system and the ontology. This interface has the ability to control the device remotely and easy to operate;
5）Adopt imported IGBT which has high power density and high reliability;
6）Using DSP digital control system for high speed detection and calculation;
7）With remote communication interface, real-time monitoring through PC;
8）Standard modular design which reduces lead times and increases reliability and maintainability.
Technical Parameters
Rated voltage |
380V±15% |
||||||
Rated frequency |
50Hz±2% |
||||||
Compensation method |
Linear compensation |
||||||
Response time |
Full response time≤5ms, Instantaneous time≤100μs |
||||||
Switching frequency |
20kHz |
||||||
Compensation effect |
≥0.99，Compensates for capacitive reacitive reactive and inductive reactive |
||||||
Self-loss |
≤2% |
||||||
Efficiency |
≥98% |
||||||
Total harmonic compensation rate |
≥97% |
||||||
Noise |
≤60dB |
||||||
Protection level |
IP20 |
||||||
Communication interface |
RS485, Ethernet, Communication function optional |
||||||
Module capacity |
30Kvar, 50Kvar, 75Kvar, 100Kvar, The same models could be directly connected in parallel |
||||||
Cooling method |
Forced air cooling |
||||||
Detailed Information
Main interface
System information interface
Fault information interface
Parameter setting interface
