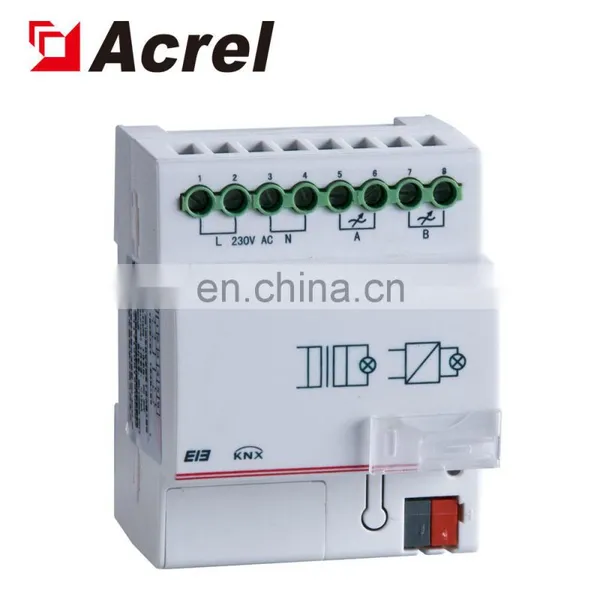

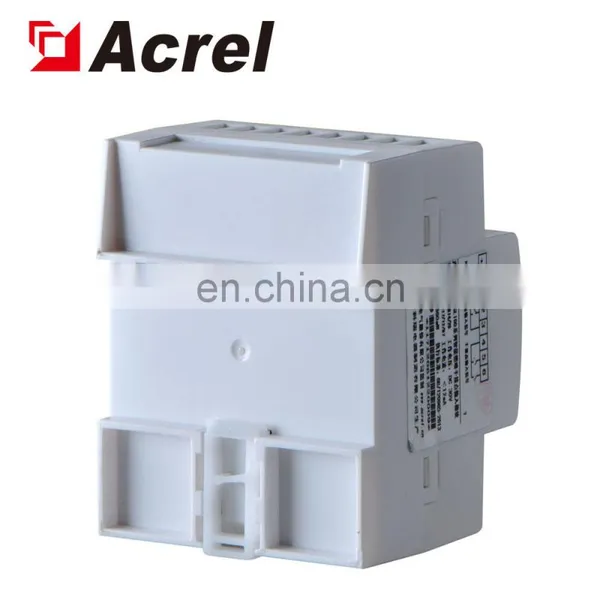

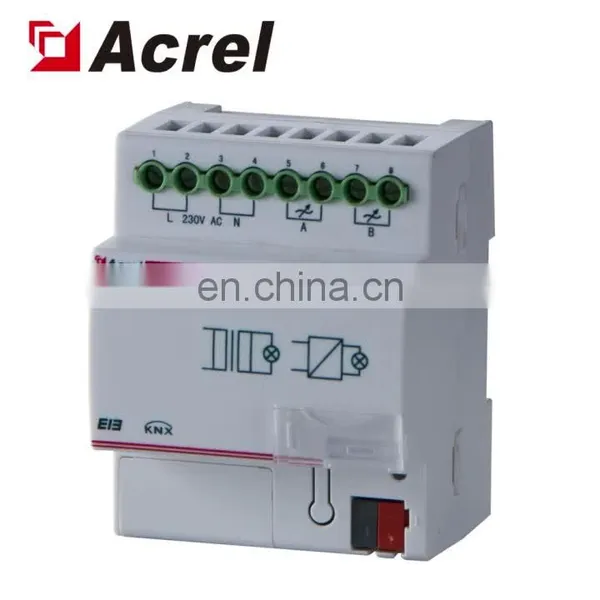

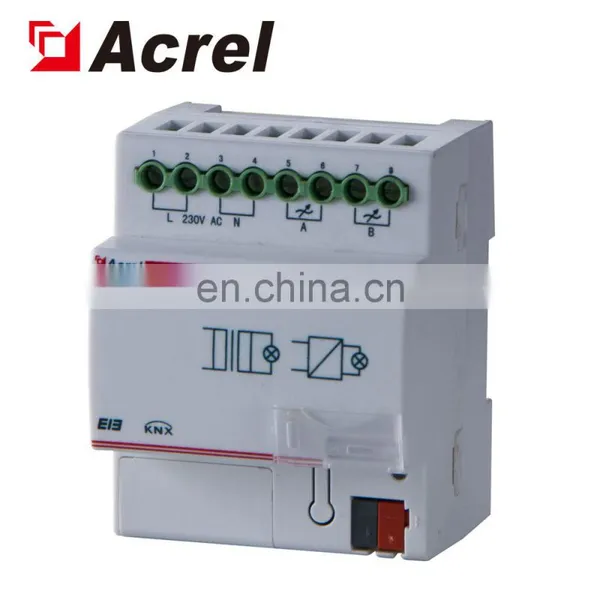

SCR Dimming Drive ASL100-TD2/5 Used in Smart Lighting Control System Acrel 300286
US$ 166 - 166
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
ASL100-TD2/5
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 300286.SZ ARTM-Pn Wireless Temperature Measuring DisplayerUS$ 155.4 - 155.4MOQ: 1 Piece -
Acrel 300286.SZ ARTM-Pn Wireless Temperature Measuring Device Used in High Low Voltage CabibetUS$ 155.4 - 155.4MOQ: 1 Piece
-
Acrel 300286.SZ ARTM-Pn Wireless Temperature Measuring Device Used in High Low Voltage CabibetUS$ 155.4 - 155.4MOQ: 1 Piece
-
Acrel 300286.SZ ARTM-Pn Switch Cabinet Wireless Temperature Measuring EquipmentUS$ 155.4 - 155.4MOQ: 1 Piece
-
Acrel 300286.SZ ARTM-Pn Wireless Temperature Measuring Device Used in High Low Voltage CabibetUS$ 155.4 - 155.4MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
ASL100-TD2/5
Overview
The silicon controlled dimming driver controls the load on-off as the dimming module by controlling the on-off of the input power
supply. Besides, the dimmer can adjust the input voltage with the phase control method to achieve LED dimming. The dimmer receives
the control message form the bus and then execute the corresponding actions according to the set parameters. With ETS programming,
the dimmer can realize multiple control functions. The low voltage line is not changed and the lighting control is changed.
supply. Besides, the dimmer can adjust the input voltage with the phase control method to achieve LED dimming. The dimmer receives
the control message form the bus and then execute the corresponding actions according to the set parameters. With ETS programming,
the dimmer can realize multiple control functions. The low voltage line is not changed and the lighting control is changed.
Technical Parameters
Power supply feature | KNX bus feeder | DC21~30V | |||||
Power supply current | ＜12mA | ||||||
Power consumption | ＜360mW | ||||||
Load current | Max 5A | ||||||
External connection | KNX-TP1 | Use twisted-pair cable conforming to KNX standard. | |||||
Wiring terminal at load end | Terminating with 0.5nm~0.6nm torque | ||||||
Operation and display interface | Programming key and relevant indicator | LED indicator is in red when waiting for programming and is in green during and after programming. | |||||
Temperature range | Operating temperature | -5℃~+45℃ | |||||
Storage temperature | -25℃~+55℃ | ||||||

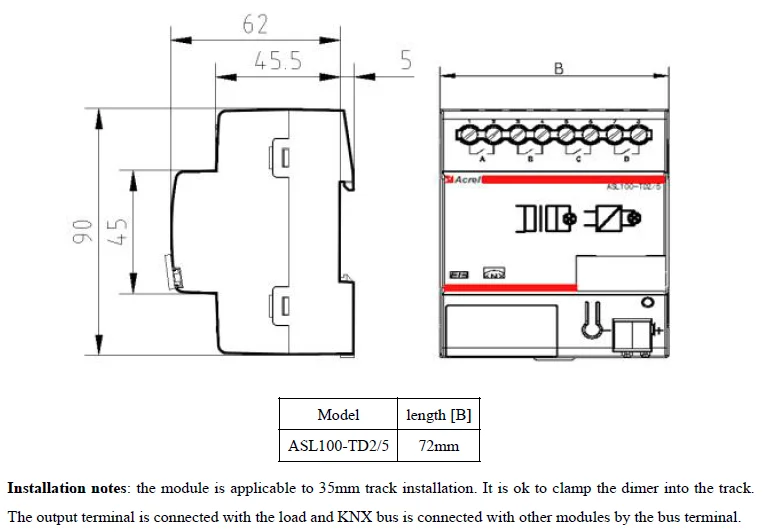

Installation | Standard 35mm track installation | ||||||
Manual Control
Auto Control
Scene Control
Time Control
Centralized Control
