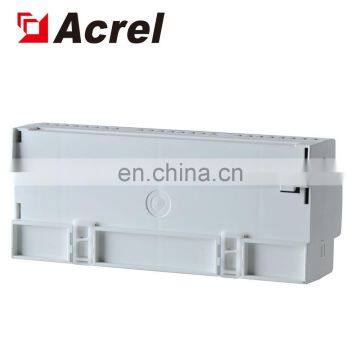

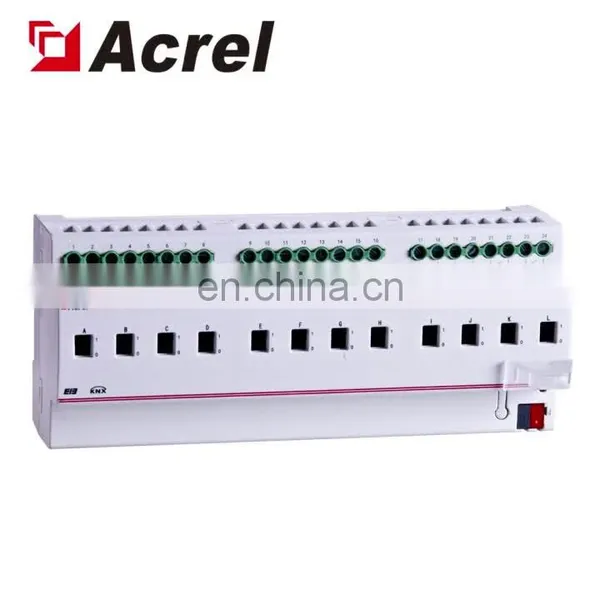

Acrel Office Building Smart Lighting Control System Switch Driver ASL100-S12/16
US$ 310.8 - 310.8
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
ASL100-S12/16
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SCR Dimming Drive ASL100-TD2/5 Used in Smart Lighting Control System Acrel 300286US$ 166 - 166MOQ: 1 Piece -
Acrel 300286.SZ ARTM-Pn Wireless Temperature Measuring DisplayerUS$ 155.4 - 155.4MOQ: 1 Piece
-
Acrel 300286.SZ ARTM-Pn Wireless Temperature Measuring Device Used in High Low Voltage CabibetUS$ 155.4 - 155.4MOQ: 1 Piece
-
Acrel 300286.SZ ARTM-Pn Wireless Temperature Measuring Device Used in High Low Voltage CabibetUS$ 155.4 - 155.4MOQ: 1 Piece
-
Acrel 300286.SZ ARTM-Pn Switch Cabinet Wireless Temperature Measuring EquipmentUS$ 155.4 - 155.4MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
ASL100-S12/16
Overview

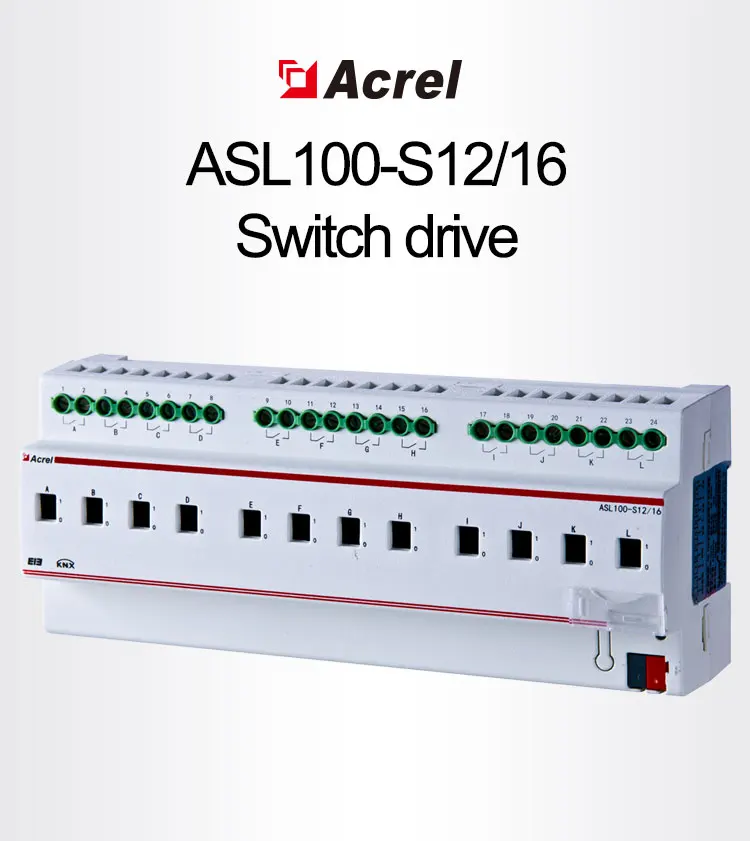

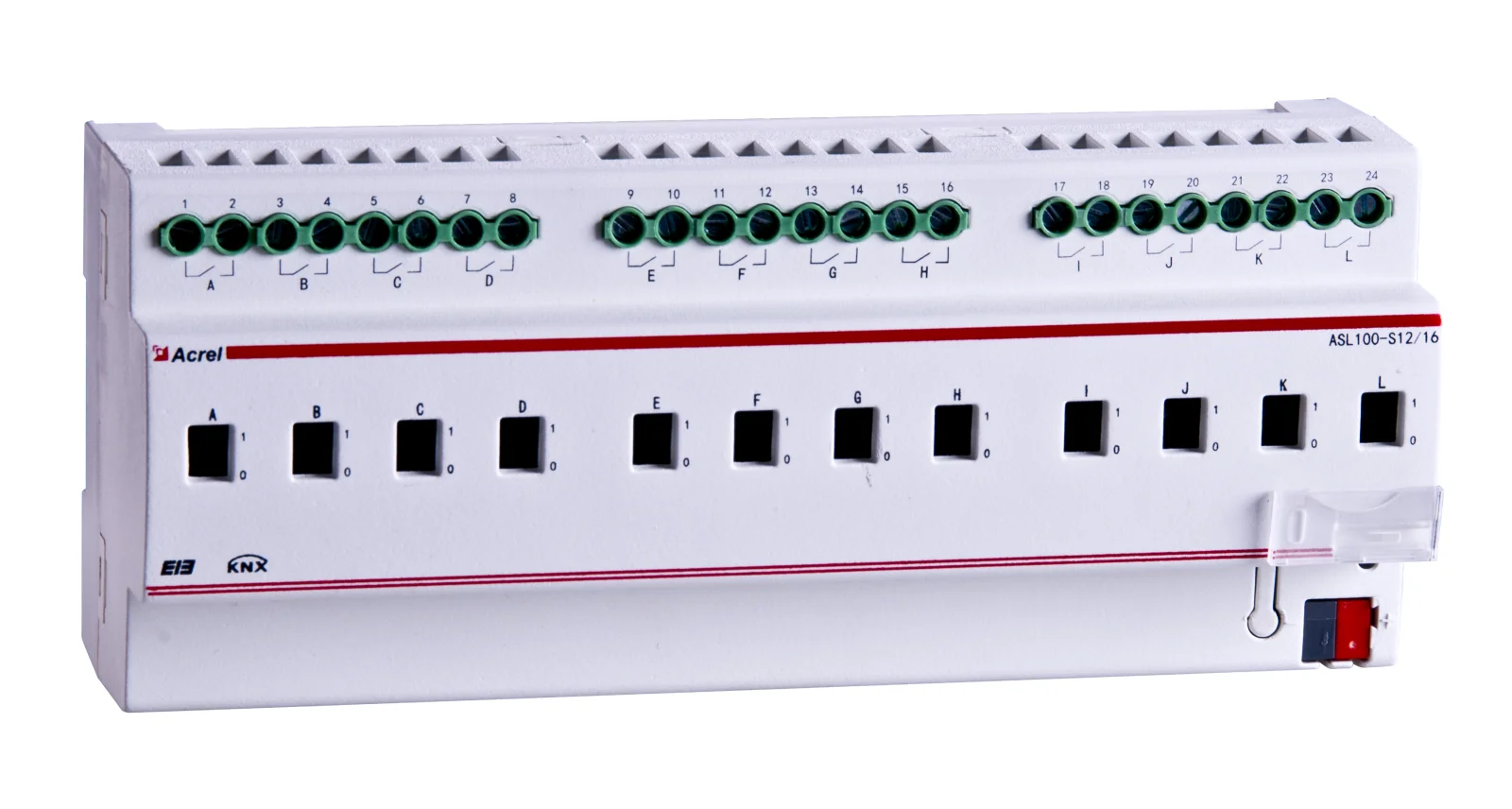

ASL100-Sx/16 series of switch driver
is Acre-bus output control module. the module is an intelligent control module with high stability and reliability, such as smart panel and dry node that achieving intelligence of lighting control. The driver controls the on and off of high voltage circuit by the communication bus. 30V DC voltage is used for module power supply at the communication end and is used for system communication. The relay controls the mains on and off by the relay at the output end. The module is applicable to the resistance, inductance and capacity load.
Technical Parameters
Power supply feature | KNX bus feeder | DC21~30V | ||||
Power supply current | ＜12mA | |||||
Power consumption | ＜360mW | |||||
Load current | ＜16A | |||||
External connection | KNX-TP1 | Use twisted-pair cable conforming to KNX standard. | ||||
Wiring terminal at load end | Terminating with 0.5nm~0.6nm torque | |||||
Operation and display interface | Programming key and relevant indicator | LED indicator is in red when waiting for programming and is in green during and after programming. | ||||
Temperature range | Operating temperature | -5℃~+45℃ | ||||
Storage temperature | -25℃~+55℃ | |||||
Manual Control
Auto Control
Scene Control
Time Control
Centralized Control
