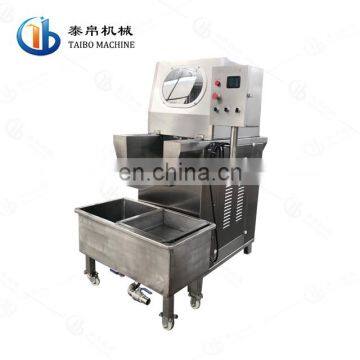

Industrial Pork Beef Chicken Marinade Saline Brine Injection Machine
US$ 5,300 - 5,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Taibo
Place of Origin:
Shandong, China
Type:
Meat Processing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Marinade Saline Brine Injecting Injector MachineUS$ 5,300 - 5,800MOQ: 1 Set -
Industrial Marinade Saline Brine Injecting Injector Machine for FactoryUS$ 5,000 - 5,500MOQ: 1 Set
-
Industrial Pork Beef Chicken Meat Brine Injection MachineUS$ 5,300 - 5,800MOQ: 1 Set
-
Industrial Pork Beef Chicken Marinade Saline Brine Injection MachineUS$ 5,300 - 5,800MOQ: 1 Set
-
Industrial Pork Beef Chicken Marinade Marinate Marinade Saline Salt Brine Injection MachineUS$ 5,300 - 5,800MOQ: 1 Set
Brand Name
Taibo
Place of Origin
Shandong, China
Warranty
1 year
Weight
400kg
Dimension(L*W*H)
1260*740*1800
Production Capacity
100%
Voltage
220V/50Hz, 220V (Customer Sized)
Certification
CE
Condition
New
Product Description
The brine injection machine is used to inject brine, starch, soy protein and auxiliary ingredients into the meat for full
marination. Relying on advanced technology and mechanical devices, the marinade is injected into the product through the injectionneedle to make it evenly distributed in products.
marination. Relying on advanced technology and mechanical devices, the marinade is injected into the product through the injectionneedle to make it evenly distributed in products.
Thus the products will be marinated quickly and added extra flavors while maintaining meat nutrition and strengthening texture. According to different process requirements, the conveying speed, conveying distance, clearance between meat-pressing plates can be adjusted, thus the marinade can be evenly and continuously injected into the meat to achieve the most best injection effect.
Model |
capacity（kg/h） |
power |
Injection speed |
Injection Rate |
Dimension |
Weight |
TZ-48 |
200-300 |
3 kw |
0.1-0.9 Mpa |
40-90% |
1350×600×1750 |
400 kg |
TZ-60 |
300-500 |
3.7 kw |
0.1-0.9 Mpa |
40-90% |
1550*880*1650 |
420 kg |
TZ-80 |
500-700 |
4.5 kw |
0.1-0.9 Mpa |
40-90% |
1550*1060*1720 |
480 kg |
TZ-108 |
700-900 |
5.2 kw |
0.1-0.9 Mpa |
40-90% |
1850*1350*1800 |
500 kg |
TZ-120 |
900-1000 |
6 kw |
0.1-0.9 Mpa |
40-90% |
1850*1450*1850 |
560 kg |
Our Advantages
* All of the machine parts is made of food grade SUS304 ,which is in accordance with food hygiene standards.
* In order to separate the injection machine from small meat block completely, the machine is equipped with filter function. The special design can extrude the small meat block from the injection curing and effectively guarantee the injection pinhole is not blocked
* Transmission chain can be removable, easy to clean, needle disassembling and replacing is easy.
* Injection pressure can be adjusted between 0.1---0.9MMPa. The pressure gage shows the injection pressure, intuitive, and convenient.
* Adopting frequency conversion governor chain step distance and step speed as well as needle injection speed is
adjustable.(OPTIONAL)
* The meat with bones can also be injected. The machine is equipped with the automatic needles protection device. The needles can lift automaticly when touch the hard matter to avoid damage.
* The electric box can be installated separately to avoid damp.
* The mating material barrels can make injection curing recyle, No wasting!
* It is also applied in fish, sea cucumber, poultry products by changing needle.
* In order to separate the injection machine from small meat block completely, the machine is equipped with filter function. The special design can extrude the small meat block from the injection curing and effectively guarantee the injection pinhole is not blocked
* Transmission chain can be removable, easy to clean, needle disassembling and replacing is easy.
* Injection pressure can be adjusted between 0.1---0.9MMPa. The pressure gage shows the injection pressure, intuitive, and convenient.
* Adopting frequency conversion governor chain step distance and step speed as well as needle injection speed is
adjustable.(OPTIONAL)
* The meat with bones can also be injected. The machine is equipped with the automatic needles protection device. The needles can lift automaticly when touch the hard matter to avoid damage.
* The electric box can be installated separately to avoid damp.
* The mating material barrels can make injection curing recyle, No wasting!
* It is also applied in fish, sea cucumber, poultry products by changing needle.
Details Images
Recommend Products
Company Profile
Zibo Taibo Industrial Co.,Ltd. is a comprehensive food processing machine enterprise intergrating scientific research, development, manufacture and sales.
We are mainly engaged in vegetable processing machine, fruits processing machine, nuts processing machine, meat processing machine, bakery equipment and OEM, which includes single machine and turn-key production line solution. We have provided dozens of customers in Central Asia, South Asia, Middle East, Africa, South America, North America, Russia with quality machinery and services since the company is established.
In the future development,we will insist the idea “provide customer professional and high quality products and service”,seek common development with new and old customers.
Certifications
FAQ
Q:Are you a trading company or a factory？
A:We are a factory with more than 10 years of experience in food technology.
Q:How do you guarantee the quality of the machine？
A: We have export experience for 6 years and customers who bought our machine have tested the machine before it was shipped .
Q:Can the voltage of the machine be adapted ?
A:We can adapt the machine to your needs to match your local voltage.
Q:Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q:Can I go to China and visit your factory?
A:Sure, we are in Shandong, China, welcome to our factory.
Q:Do you have operation manual with the machine?
A:Yes, of course, it is in English version.
Q:Can you offer us the necessary paper to do the customs clearance?
A:Yes, we will send you the commercial invoice, packing list, bill of lading and we'll also meet your other request.
Q:How about the packing?
A:Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film
Q: What is warranty period of Meat food bowl cutter?
A:One year upon you receive the goods.
A:We are a factory with more than 10 years of experience in food technology.
Q:How do you guarantee the quality of the machine？
A: We have export experience for 6 years and customers who bought our machine have tested the machine before it was shipped .
Q:Can the voltage of the machine be adapted ?
A:We can adapt the machine to your needs to match your local voltage.
Q:Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q:Can I go to China and visit your factory?
A:Sure, we are in Shandong, China, welcome to our factory.
Q:Do you have operation manual with the machine?
A:Yes, of course, it is in English version.
Q:Can you offer us the necessary paper to do the customs clearance?
A:Yes, we will send you the commercial invoice, packing list, bill of lading and we'll also meet your other request.
Q:How about the packing?
A:Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film
Q: What is warranty period of Meat food bowl cutter?
A:One year upon you receive the goods.
