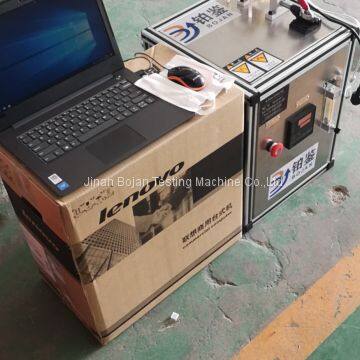

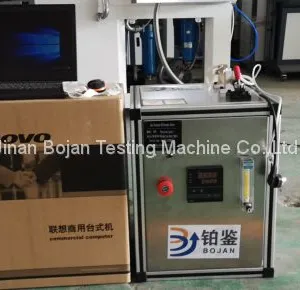

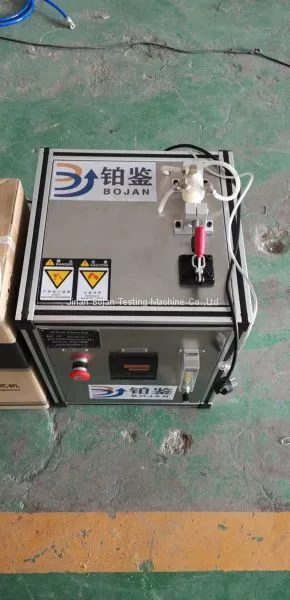

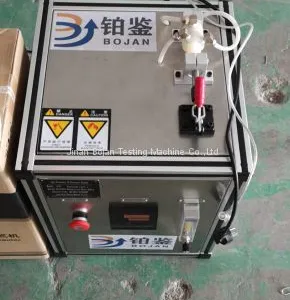

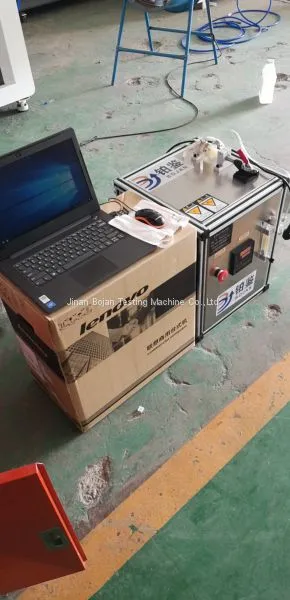

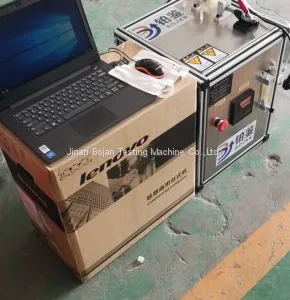

Help CenterMask Differential Pressure Tester
Related Products
-
ASTMF2100 EN149 Photometer Particle Filtration Efficiency Pfe TesterUS$ 34999 - 35000MOQ: 1 Unit -
Mask PFE Testing MachineUS$ 19999 - 22000MOQ: 1 Unit
-
EN143 EN149 Photometer Automatic Filtering Pfe TesterUS$ 34999 - 35000MOQ: 1 Unit
-
Mask PFE Test Instrument+photometer MethodUS$ 34999 - 35000MOQ: 1 Unit
-
PFE Testing Machine+Particle Counter MethodUS$ 19999 - 20000MOQ: 1 Unit
1. Equipment Features
1). The equipment is equipped with a pump to simulate artificial respiration.
2). The detector is equipped with a positive pressure sensor, which is used to collect the test data pressure and reflect it into the computer software.
3). The pressure has stepless adjustable function, and the technical parameters such as holding pressure and holding time can be set.
4). The instrument is composed of a breathable air source with adjustable flow rate, a human head model specified by the standard, an inspiratory and expiratory piping system, and a respiratory resistance measurement system.
5). The use of special pneumatic circuit conversion elements ensures that the expiratory and inspiratory two-casing system can be easily and quickly replaced.
6). Digital display of breathing resistance, with zero point correction, accuracy correction and over-range alarm function.
7). Standard flow meter is adopted, and the flow control accuracy is high.
8). The computer control and acquisition system realizes the control of pressure, breathing frequency control and real-time detection and output of breathing resistance test data.
2. Technical Parameters
Fundamental | Simulated breathing by vacuum pump and detection of pressure difference |
test pressure | 0-500pa |
Micro-pressure measuring range | 0-500pa,Accuracy 1pa |
Pressure value resolution | 1Pa |
Time accuracy | 0.1s |
Test medium | air |
control method | computer |
Check flow | 8L/min |
3. Test Standards:
YY 0469-2011 Surgical mask
YY 0969-2013 Single-use medical face mask
EN 14683:2014 Medical face masks - Requirements and test methods
Send Inquiry to This Supplier
