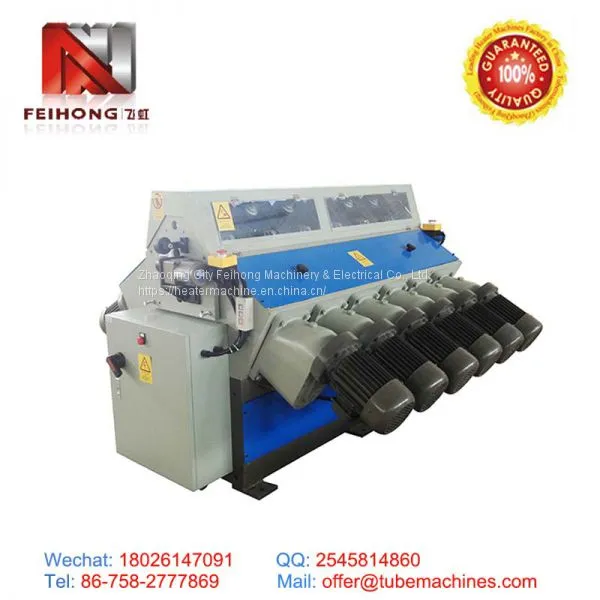

Help CenterSGB2 12 Station Roll Reducing Machine 60RPM Diameter 25.4mm
Related Products
-
SG8A 8 Station Roll Reducing Machine 18M/min 0.75KW 60rpmNegotiableMOQ: 1 Set -
SG8B 8 Station Roll Reducing Machine With Stamping MechanismNegotiableMOQ: 1 Set
-
SG16B 16 Station Copper Pipe, Stainless Steel Pipe, Roll Reducing MachineNegotiableMOQ: 1 Set
-
SG-A1 12 Station Rolling Shrinking Machine for Small Sizes Heaters,hot Runner HeaterNegotiableMOQ: 1 Set
-
SGC Flat Tubular Heater Shrinking Machine, Diameter Max 45mmNegotiableMOQ: 1 Set
Rotating speed of Roller: 60rpm
Roller dimension:outside dia.φ98.5mm ;inside diameter φ45mm; thickness 38mm
Center distance between rollers: 115 mm (with adjustable distance 0.5 mm downward)
Motor power (single): 1.1KW
Function:
Reduce heater to increase density;
Main features:
(suitable for shrinking round tubes, flat tubes, square , oblate elements etc.)
Features: The transmission of this roller reducing machine is mainly designed for large diameter and long heating elements. The gearbox uses multiple sets of gears, connect with motor, to set up a group of gear reduction motors with large torque. Which will avoid when shrink large heater or long heaters, transmission is not strong enough or the motor easily damaged. Between the motor and roller shaft, it connected with gimbal, in this way, the machine will driven smoothly, and torque is increased, so the direct force to the motor and roller shaft will be lower, which will protect the motor.
1. The best diameter to reduce: 3-25 (mm);
2. The best length to reduce: 30-4000(mm);
3. Machine structure: Whole/separate machine (according to customers' order);
4. Transmission structure: Double Cardan shaft;
5. Can match with tungsten carbide roller, high speed roller and Cr12Mov roller;
6. Can make 8-16 groups, the 12 group mainly have in stock, other groups need to be customized;
7. Transmission motor warranty: 10 years !
Application:
Round heater reduce, such as tubular heater, cartridge heater, cable heater;
Oblate heater reduce, such as railway heater reduce, fryer heater;
Information need for order SG12B roll reducing machine:
Tube diameter before and after reduce, such as Φ14-12mm
Length before reduce
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)
-----------------------------------------------------------------------------------------------------------
FeiHong heater machinery factory was established in 1992, our products are applicable for large mass production of home appliances heating components, industry appliances heating components, hot running heating tube and any other craft refers to the production of heating.
