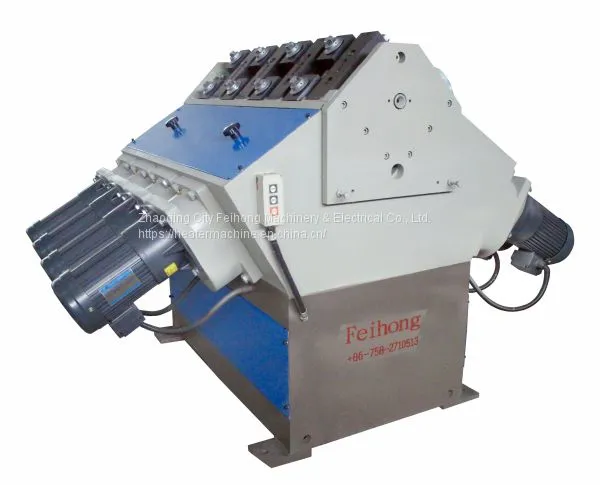

SG8A 8 Station Roll Reducing Machine 18M/min 0.75KW 60rpm

SG8A 8 Station Roll Reducing Machine 18M/min 0.75KW 60rpm thumbnail-1
SG8A 8 Station Roll Reducing Machine 18M/min 0.75KW 60rpm photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1992
Factory Size:
5,000-10,000 square meters
Contact Supplier Request Quote Chat Now
Zhaoqing City Feihong Machinery & Electrical Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

  • Item No.: SG8A

  • Rotating speed of Roller: 60rpm

  • Roller dimension: outside diameter φ98.5 mm; inside diameter φ45 mm; thickness 38 mm

  • Motor power (single): 0.75KW

Features

  • Small power;

  • Few noise;

  • The best reference range to shrink (mm): Φ4-Φ10mm variety of specifications，length shorter than 1 meter(within the reference range, the life of the equipment will be longer)

  • Suitable tubes' material: copper, aluminum, iron, stainless steel etc.;

  • Suitable tube's shape: round;

  • Shrinking speed: uniform speed,non-uniform speed (according to the demand of customer).

  • Change roller or roll assemble can reduce different diameter;

  • Can match with our feeding machine to increase of efficiency;

  • Can match with our marking mechanism for mark your brand heaters.

    • Application
    Round heater reduce, such as tubular heater.

    Information need for order SG8A roll reducing machine

    • Tube diameter before and after reduce, such as Φ8-6.6mm

    • Length before reduce

    • Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)


    The SGA rolling reducing machine is to make up for the short-comings of the SGA-2 model. The machine adds gearbox to the drive to increase the bearing capacity and increase the torque. Model: SG8A 8 station, SG12A 12 station.

    Features: compared with the SGA-2 machine, the torque is large and the strength is increased.

    Recommended range of reducing tube: within 3.5-16mm.


    A style reducing machine Main models and technical parameters


    models

    installation

    tube diameter to reduce

    Min length to reduce

    rotating speed of roller

    Power supply single / total power

    Productivity/8h

    size

    weight

    SGA reducing machine

    vertical or horizontal two styles

    3.5-16mm round/ square/flat

    / elliptical  pipe

    150mm

    Between 20-70 rpm

    380V 50HZ /0.75KW / 9KW

    5000-70000m/8h

    1.6*1.3*1.1m

    2000KG

-----------------------------------------------------------------------------------------------------------

FeiHong heater machinery factory was established in 1992, our products are applicable for large mass production of home appliances heating components, industry appliances heating components, hot running heating tube and any other craft refers to the production of heating.

The machine make in Feihong included pipe cutting machine, resistance wire coil machine, welding machine, MGO powder filling machine, reducing machine, trimming machine, annealing machine, bending machine etc.
our company has a special design team and technical staff engage in 24H sale service, who can design and manufactrue the desired equipment and frock according to manufacturing characters.
If you want to upgrade your equipment and want to make more nice heater, please feel free to contect us.


Product Tags: roll reducing equipment , heater reducing machine , heavy duty roll reducing mahcinery
