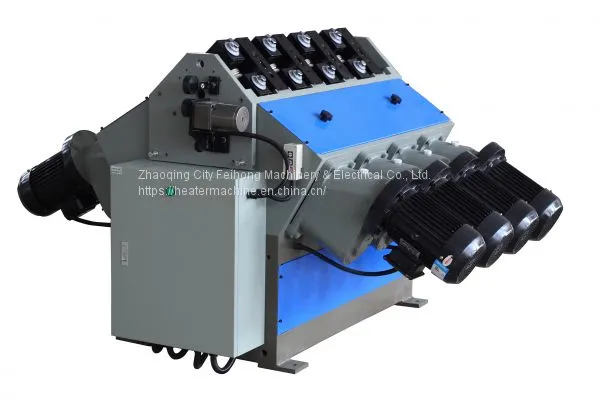

SG8B 8 Station Roll Reducing Machine With Stamping Mechanism

SG8B 8 Station Roll Reducing Machine With Stamping Mechanism thumbnail-1
SG8B 8 Station Roll Reducing Machine With Stamping Mechanism photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1992
Factory Size:
5,000-10,000 square meters
Contact Supplier Request Quote Chat Now
Zhaoqing City Feihong Machinery & Electrical Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

  • Rotating speed of Roller: 60rpm

  • Roller dimension:outside dia.φ98.5mm ;inside diameter φ45mm; thickness 38mm

  • Center distance between rollers: 115 mm (with adjustable distance 0.5 mm downward)

  • Motor power (single): 1.1KW


Features:
Large power, single power can be 1.1kw,1.5kw,2.2kw according to order;
Large torque, large power, more suitable for high density tubes, large tubes and long tubes;
The best reference range to shrink (mm): Φ4-Φ25mm; length recommend shorter than 4 meters (within the reference range, the life of the equipment will be longer). Φ6-Φ16mm; if Φ 8-12mm, recommend length within 2 meters, if smaller thanΦ8mm, can reduce 3 meters, if diameter larger thanΦ12mm, length recommend shorter than 2 meters (within the reference range, the life of the equipment will be longer).
Suitable tubes' material: copper, aluminum, iron, stainless steel etc.;
Suitable tube's shape reduce: round, oblate, square shape;
Shrinking speed: uniform speed, non-uniform speed (according to the demand of customer).
Change roller or roll assemble can reduce different diameter;
Can match with our feeding machine to increase of efficiency;
Can match with our marking mechanism for mark your brand heaters.


Application:
Round heater reduce, such as tubular heater, cartridge heater, cable heater;
Oblate heater reduce, such as railway heater reduce, fryer heater;


Information need for order SG8B roll reducing machine:
Tube diameter before and after reduce, such as Φ14-12mm
Length before reduce
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)

-----------------------------------------------------------------------------------------------------------

FeiHong heater machinery factory was established in 1992, our products are applicable for large mass production of home appliances heating components, industry appliances heating components, hot running heating tube and any other craft refers to the production of heating.

The machine make in Feihong included pipe cutting machine, resistance wire coil machine, welding machine, MGO powder filling machine, reducing machine, trimming machine, annealing machine, bending machine etc.
our company has a special design team and technical staff engage in 24H sale service, who can design and manufactrue the desired equipment and frock according to manufacturing characters.
If you want to upgrade your equipment and want to make more nice heater, please feel free to contect us.


Product Tags: roll reducing equipment , heater reducing machine , heavy duty roll reducing mahcinery
