The Whole Plant Planning of 800 Ton Hot Pressing Machine Gluing Sheet Layer Automatically Incoming and Outgoing Material Man-made Board

The Whole Plant Planning of 800 Ton Hot Pressing Machine Gluing Sheet Layer Automatically Incoming and Outgoing Material Man-made Board photo-1
The Whole Plant Planning of 800 Ton Hot Pressing Machine Gluing Sheet Layer Automatically Incoming and Outgoing Material Man-made Board photo-2

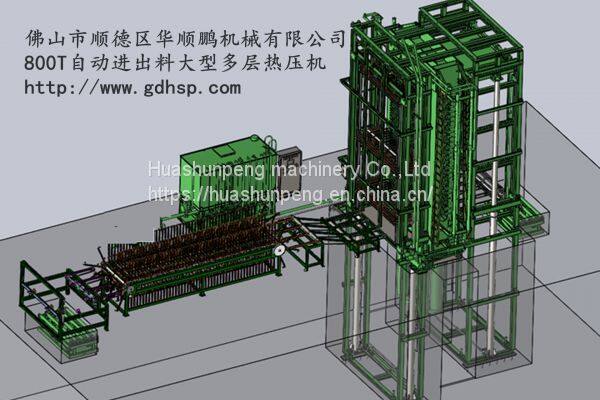

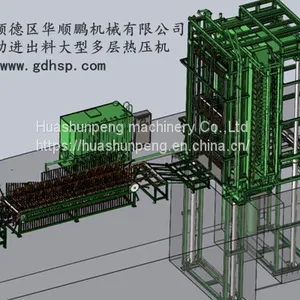

The Whole Plant Planning of 800 Ton Hot Pressing Machine Gluing Sheet Layer Automatically Incoming and Outgoing Material Man-made Board photo-3
The Whole Plant Planning of 800 Ton Hot Pressing Machine Gluing Sheet Layer Automatically Incoming and Outgoing Material Man-made Board photo-4
The Whole Plant Planning of 800 Ton Hot Pressing Machine Gluing Sheet Layer Automatically Incoming and Outgoing Material Man-made Board photo-5
US$ 222000 - 370000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huashunpeng
Place of Origin:
China
Model Number:
HSP-H-800T
Payment & Shipping
Payment Methods:
Port of Shipment:
NANSHA
Delivery Detail:
60 days
Brand Name Huashunpeng
Place of Origin China
Model Number HSP-H-800T
Type Hot Press
After-sales Service Provided No overseas service provided
Warranty ISO
Weight 28T
Dimension(L*W*H) 5120*1700*5580
Application CNC
Condition New
Pressure 800 Tons
Power(W) 26KW

It can used in various man-maded board, especial for plywood production line. Our hot press is easy to operate and maintant, can automatic control the temperatue and time which ensure the quantity of the products, The temperatue of press plates is even, and the close speed for plated is fast while the machine is working. With good synchronization, stable lilting low failure rate, easy to maintant, low motor power, energy saving. high Efficiency and Stability, it" s one o the best choice for plywood producing factory,

-Hot platen with high strength. high precision, durable and easy to operate.

-Cylinder is made from excellent steel and it is high strength and durable.It uses high quality oil envelop so as to avoid of oil leaking.

-Control system adopts PLC controlled. It can lift the hot platen, close these operation, add the pressure, keep the -pressure, keep time, descend the hot platen, etc

Model

HSP-H800T-20L

Working Pressure

800T

Max. pressure on board

10-16kg/cm2

Hot Platen Size

2700x1370x421

Diameter of cylinder

320x4pcs

Stroke of platen

80mm

NO. of layers

20-50L

Oil pump motor#1

18.5kw

Oil pump motor#2

7.5kw

Overall Dimensions

5120x1700x5580mm


Product Tags: Hot pressing machine , Plywood manufacturing equipment , Large hot pressing machine , Automatic feed in and out hot pressing machine
