plywood hot press / hot press machine
- 10 Set / Sets per Month
- Qingdao
- T/T
-
china hot press BY21-4*8/120ton(3)D
-
900 ton/1200 ton hydraulic hot press machine BY21-4*8/900(3-15)D
-
hydraulic hot press 4'*8' BY21-4*8/120ton(3)D
-
new hydraulic plywood hot press machine/hot press for plywood BY21-4*8/120ton(3)D
-
melamine boards press/hydraulic hot press BY21-4*8/120ton(3)D
-
hydraulic woodworking hot press/hydraulic door hot press for kinds of furnitures 4'*8' BY21-4*8/120ton(3)D
Product Details
| Condition: | New | Type: | Hot Press Machine | Place of Origin: | China |
| Brand Name: | SEFE | Model Number: | BY214*8/900(3-15)D | Voltage: | 380V |
| Power(W): | 5.5K-30K | Dimension(L*W*H): | 4900*1600*2150MM | Weight: | 7,000kgs-30,000kgs |
| Certification: | CE ISO9001 | Warranty: | 1 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
in bulk or wood box.
Product Description

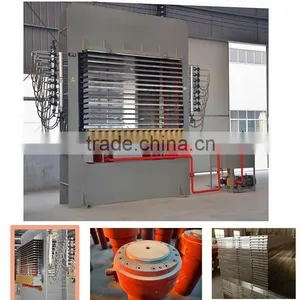

plywood hot press / hot press machine
1. full-automatic and manual integration.
2.CE, ISO9001
3.Woodworking Machinery,plywood hot press,veneer hot press.
4.Model: BY214*8/900(3-15)D
5.Save Electricity 20% at least.
Model | BY21-4'*8'/1200-11 |
Frame style | Combination frame |
Quantity and Diameter of Cylinder | 6 units Φ320mm |
Nominal Pressure | 1200Tons |
Quantity of layers | 11 layers |
Separation between layers | 70mm |
Stroke of Cylinder | 1050mm |
No-load closing time | About 15s |
Hydraulic system control method | Manually/Automatic controlled |
Hydraulic system pressure | 25MPa |
Main motor | 11KW |
Pressurized motor | 7.5KW |
Main pump | Shanghai Aviation 250 pump |
Pressurized pump | 10ml/rev plunger pump |
Heating platen(working table size) | 2700*1370*42mm |
Heating Meduim in the heating platen | steam or heat transfer oils |
main frame steel plate thickness | 35,22,12mm |
Upper, Bottom crossbeam | 900,800,400mm |
Movable crossbeam | 2700*1370*400mm |
Dimensions of Main frame | 3560*1370*4240mm |
Weight | 32000KG |
Production Capacity | about 30 sheets of plywood in one hour |

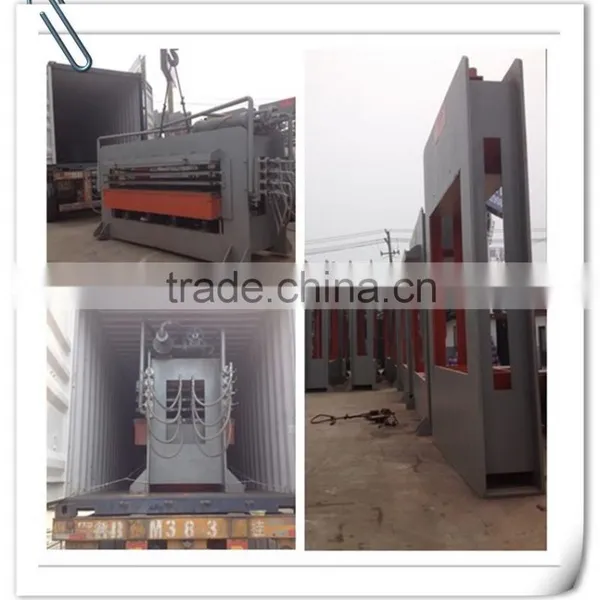

1. Packing in Bulk or wood box.
2. Shipping: 20-30 days after deposit.
BASED ON MORE THAN TEN YEARS EXPORT EXPERIENCES IN WOODWORKING MACHINERY,WE OFFER A FULL LINE OF HIGH QUANLITY CHINA HOT PRESS,PRE-PRESS,SANDER,WOOD VENEER DRYER MACHINE.
CONTACT INFORMATION:
Company Profile
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company. We are specialized in manufacturing woodworking machines, located in Qingdao, China.
With over 50 years of experience in woodworking machine and metalworking fields, we have developed various series of woodworking machines, such as wide belt sanders, edge banding machines, slitter machines and vacuum press machines. In order to supply high quality products and excellent services, we are continually improving our products with the latest technologies according to the market prevailing requirements. In the past few years, we have already got CE and ISO9001 certifications. Our product quality is also well accepted by our overseas clients.
We sincerely welcome every client to visit our factory and hope to cooperate with you in the future.
