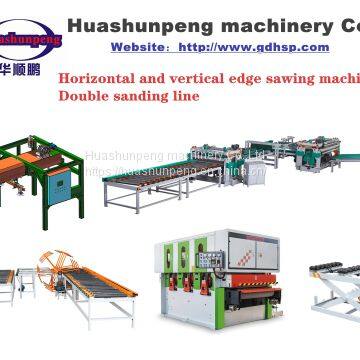

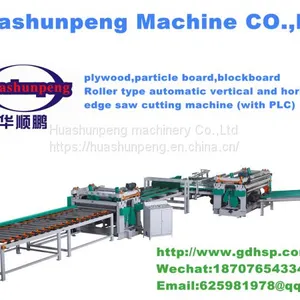

Help CenterRoller Type Automatic Vertical and Horizontal Edge Saw Cutting Machine With PLC Custom
Related Products
-
Double-sided Gluing Machine, Gluing Machine Roll, Can be Equipped With Material Rack Line, Wood Board Factory PlanningUS$ 13500 - 26500MOQ: 1 Set -
Lifting Glue Mixer Double Side Gluing Machine Supporting Equipment F Type Dispersing Machine Contain Gluing BarrelUS$ 1500 - 2800MOQ: 1 Set
-
Woodworking Machinery Hydraulic Lifting Table Saw Edge Machine Sanding Assembly Line Inlet and Outlet Plate Stacking 3 TonsUS$ 2200 - 2800MOQ: 1 Set
-
Man-made Panel Whole Factory Planning，automatic Hot PressNegotiableMOQ: 1 Set
-
The Whole Plant Planning of 800 Ton Hot Pressing Machine Gluing Sheet Layer Automatically Incoming and Outgoing Material Man-made BoardUS$ 222000 - 370000MOQ: 1 Set

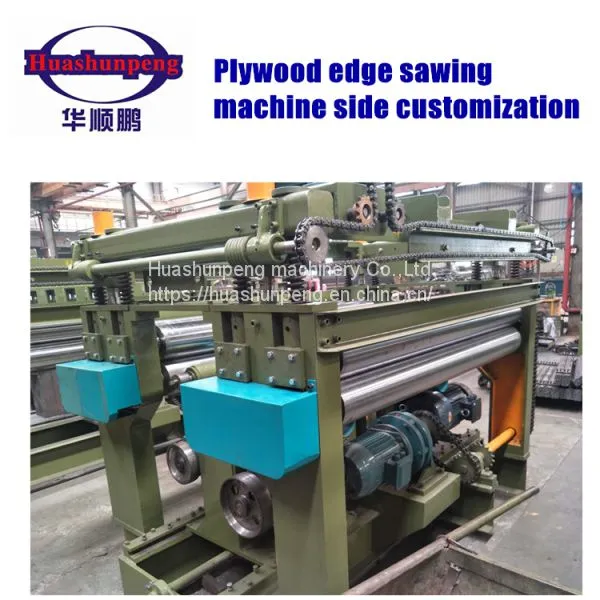

Vertical and horizontal edge saw cutting machine is one of the most importance equipment for plywood making. This production line is designed and produced according to oversea and domestic advanced equipment. Feeding by labor, then from sawing, stacking, all controled by PLC,which saving 50% labor,and increase 30% working efficiency. In normal condition, the daily output can reach 100-120 m2. It with high precision cutting, good quality sawing, burr-free, precision diagonal, is the best choice for plywood and lumber core factories.
We can custom woodworkong machine!!!!
Vertical edge cutting machine |
Horizontal edge cutting machine |
|
Model |
HSP-R48A |
HSP-R48A |
Sawing width |
950-1220mm |
1220- 2400mm |
Sawing thickness |
2-35mm |
2-35mm |
Sawblade size |
305x3.2/2.2x60x120t |
120x3.0x4.0/2.2x24t |
Sawblade speed |
8000r/min |
8000r/min |
Feeding speed |
0- 75m/min |
0- 75m/min |
Total motor power |
22.3kw |
22.3kw |
