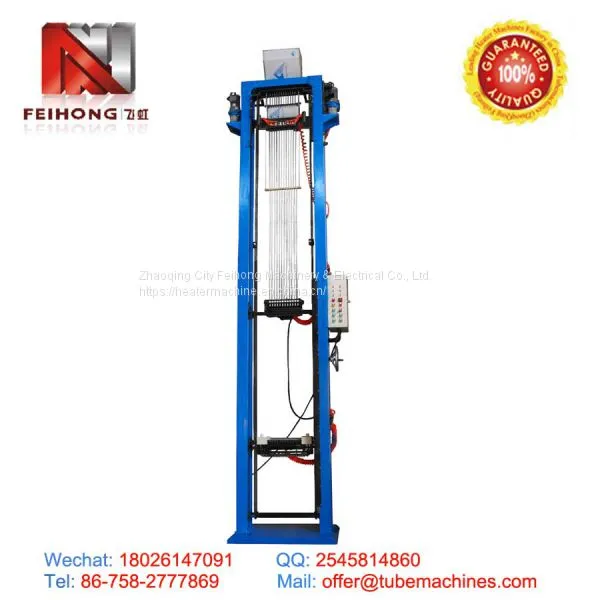

FM12 6M PLC 12 Station MGO Powder Filling Machine

FM12 6M PLC 12 Station MGO Powder Filling Machine thumbnail-1
FM12 6M PLC 12 Station MGO Powder Filling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1992
Factory Size:
5,000-10,000 square meters
Contact Supplier Request Quote Chat Now
Zhaoqing City Feihong Machinery & Electrical Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

  • station: 12 stations

  • filling length: 300-8000 mm according to order

  • filing density: up to 2.35g/cm3

  • Air supply: 0.6MPa clean compressed air


FM12-PLC (double guide tubes 6-48 station) MGO powder filling machine, is designed and manufactured according to the characteristics of imported similar machines. The machine is controlled by PLC and Human machine interface (HMI/touch screen), and add guide rail and rotary clamping mechanism. It can make 6-48 different stations, custom according to customers requirement, different diameters, different length. At present the max filling length can up to 8000mm, and max filling diameter is Φ28.5mm.

Due to use PLC and encoder counting device, it can set the length on the machine easily, just enter the actual length need to fill (length of the empty pipe) on the touch screen, the machine will adjust automatically, the adjustment is quicker and more accurate. Besides, the position during filing will be more accurate. There is helical nozzle inside the guide tubes, the exposed of mandrel (hook) can be adjusted by the motor. It is a recommend filling machines for tubular heaters.



model

diameter/length to fill

control

vibration

power

air supply

Size(H*L*W)

weight

FMPLC - (6-48) station double three guide tubes

Φ7.5-Φ28.5mm

300mm-8000mm


PLC+touch screen

mechanical and electromagnetic

380V /50Hz/500W

0.6Mpa

（4500*1700*1000mm）--（176000*1700*1000mm）

800Kg-2000Kg

Remarks:
FeiHong heater machinery factory was established in 1992, our products are applicable for large mass production of home appliances heating components, industry appliances heating components, hot running heating tube and any other craft refers to the production of heating.
The machine make in Feihong included pipe cutting machine, resistance wire coil machine, welding machine, MGO powder filling machine, reducing machine, trimming machine, annealing machine, bending machine etc.
our company has a special design team and technical staff engage in 24H sale service, who can design and manufactrue the desired equipment and frock according to manufacturing characters.
If you want to upgrade your equipment and want to make more nice heater, please feel free to contect us.
