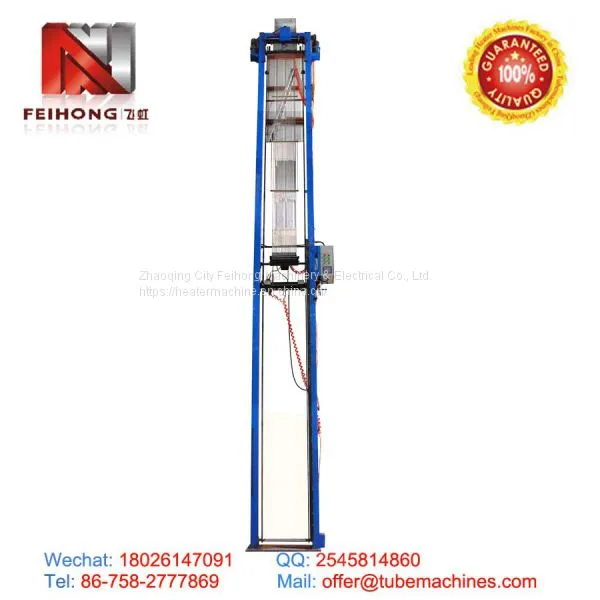

Help CenterFM PLC 24 Station Cartridge Heater MGO Powder Filling Machine Below 1500MM
Related Products
-
FM16 PLC 16 Station MGO Powder Filling Machine Diameter 10MMNegotiableMOQ: 1 Set -
FM12 6M PLC 12 Station MGO Powder Filling MachineNegotiableMOQ: 1 Set
-
TL-6 Hot Runner Heater Filling Machine 150MM-2000MMNegotiableMOQ: 1 Set
-
TL-12 Cartridge Heater Filling Machine With MGO Rod InsideNegotiableMOQ: 1 Set
-
GY-24 Industrial MGO Powder Filling Machine for Cartridge Heater (fill MGO Powder Directly) 2000MMNegotiableMOQ: 1 Set
station: 24 stations
filling length: 300-8000 mm according to order
diameter:<Φ12.7mm
Air supply: 0.6MPa clean compressed air
Application:
suitable for tubular heaters, long heating elements, large diameter heaters to add MGO powder;
Features:
*** can make in double filling guide tubes (one diameter install on the machine);or three filling guide tubes (different diameters install on the machine);
*** operation in the middle of the machine, easy to operate;
*** length can be custom according to order, it is recommend machine for long heating elements. (filling length in 300-8000mm can be adjustable, according to order);
*** stations: 24 station. (one time fill 24 pcs, or custom accroding to order such as 6/8/10/12/16/36/48 etc)
*** shape to fill: round tube;
FM24-PLC (double guide tubes 6-48 station) MGO powder filling machine, is designed and manufactured according to the characteristics of imported similar machines. The machine is controlled by PLC and Human machine interface (HMI/touch screen), and add guide rail and rotary clamping mechanism. It can make 6-48 different stations, custom according to customers requirement, different diameters, different length. At present the max filling length can up to 8000mm, and max filling diameter is Φ28.5mm.
Due to use PLC and encoder counting device, it can set the length on the machine easily, just enter the actual length need to fill (length of the empty pipe) on the touch screen, the machine will adjust automatically, the adjustment is quicker and more accurate. Besides, the position during filing will be more accurate. There is helical nozzle inside the guide tubes, the exposed of mandrel (hook) can be adjusted by the motor. It is a recommend filling machines for tubular heaters.
model | diameter/length to fill | control | vibration | power | air supply | Size(H*L*W) | weight |
FMPLC - (6-48) station double three guide tubes | Φ7.5-Φ28.5mm 300mm-8000mm | PLC+touch screen | mechanical and electromagnetic | 380V /50Hz/500W | 0.6Mpa | （4500*1700*1000mm）--（176000*1700*1000mm） | 800Kg-2000Kg |
