Paper mill manufacturers pulp digester wood pulp digester
- 100 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 90 days
Product Description

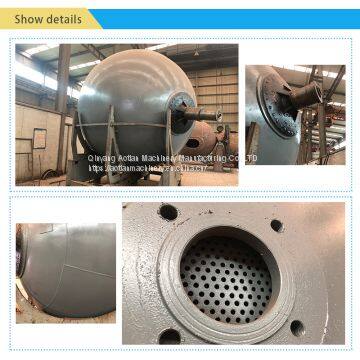

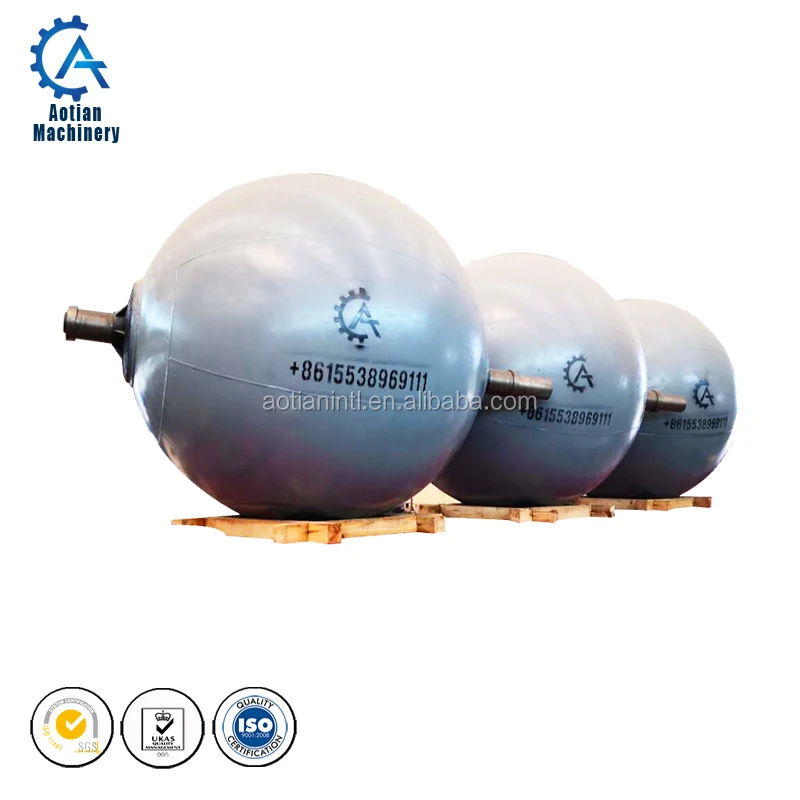

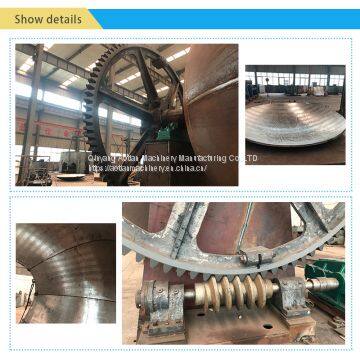

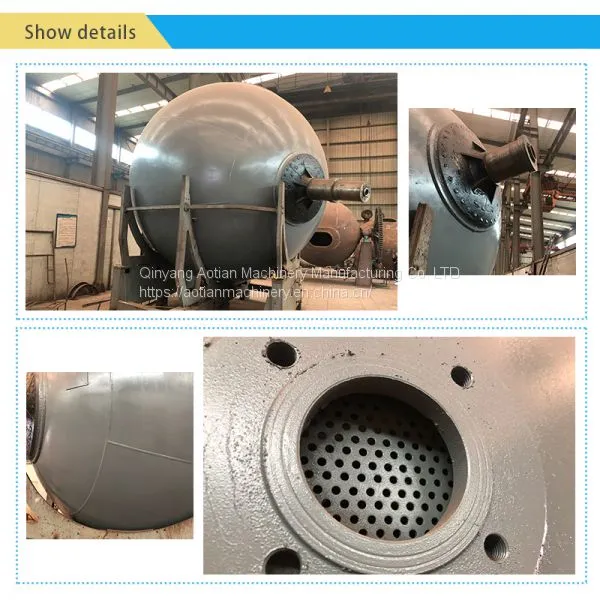

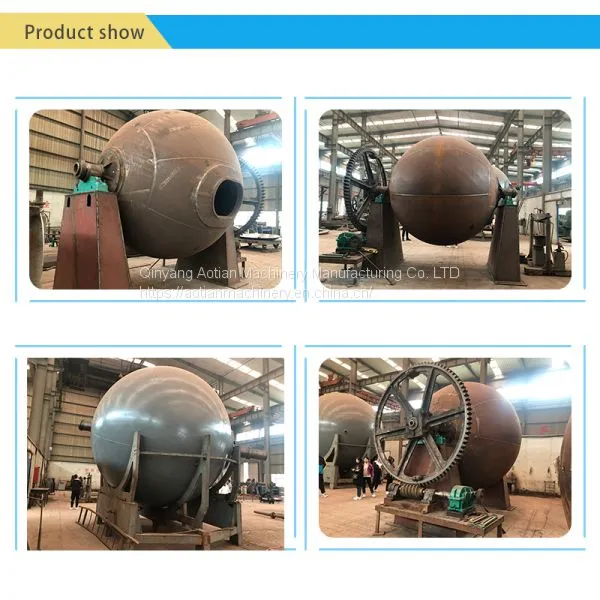

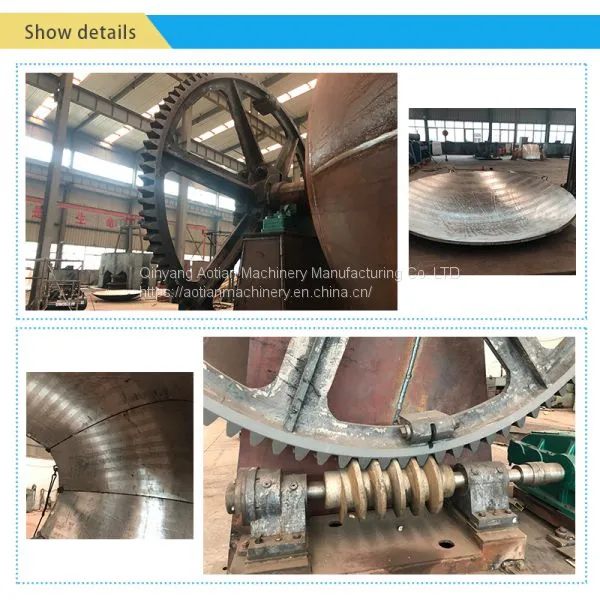

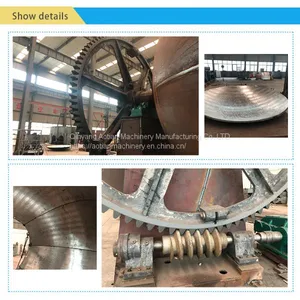

Rotary Spherical Digester is a rotary batch cooking pulping equipment.It is spherical in shape and consists mainly of spheres, bases, transmissions, etc.The sphere is made of steel plate welded or riveted.A charging hole is opened at the vertical center line of the sphere for loading and feeding the cooking liquid. Passing the steam for cooking heating and discharging the condensed water from the hollow journal.
pulp and paper equipment
Main Technical Data Impurity Cleaner For Pulp And Paper Equipment
Sphere volume | 25m3 |
Max designed Pressure | 0.88MPa |
Max working pressure | 0.8MPa |
Hydraulic test pressure | 1.26MPa |
Design temperature | 200℃ |
Max working temperature of the medium | 175℃ |
Sphere nominal inner diameter | 3650mm |
Sphere rotate speed | 0.48r/min |
Inlet hole size | 600*900mm |
Blow/Discharge valve size | 150mm |
Inlet Diameter | 80mm |
Motor model | Y132S-4 |
Power | 5.5KW |
Rotate speed | 1440r/min |
Reducer model Right hand | ZQ400-VI-2F15.75 |
Reducer model Left hand | ZQ400-VI-1F15.75 |
Rotate the triangle belt specification | B2030 |
Total equipment weight | About 11755kg |
Max dimension of the equipment | Φ 4570*7530mm |
Max DimensionMax Weight Sphere | 3685*5460mm About 6860kg |
Material | Q245R |
Main board | S216 |
Design Features:
1.the raw materials in the ball are fully mixed with the liquid medicine.
2.the quality of the pulp is relatively uniform.
3.the equipment is simple.
4.investment is small.
5.the management is easy to manage.
6.The disadvantage is that the floor space is large.
Aotian Machinery Manufacturing Co., Ltd. was founded in 1985, according to the modern enterprise mechanism into a large-scale standardized joint-stock enterprises, with 278 workers,including 23 engineers and technicians,15 senior engineers.In general, Aotian is in the leading place of paper-making industry in China .
We will provide whole services according to our clients’ demand, like technical design, equipment production, installation and test instruction and so on. We will meet and exceed your expectations. Please contact our custom service for details.
Our products have win high reputatio among our customers
These are our clients in Iran ,Pakistan and India.
Our products are sold to more than 100 countries all over the world.

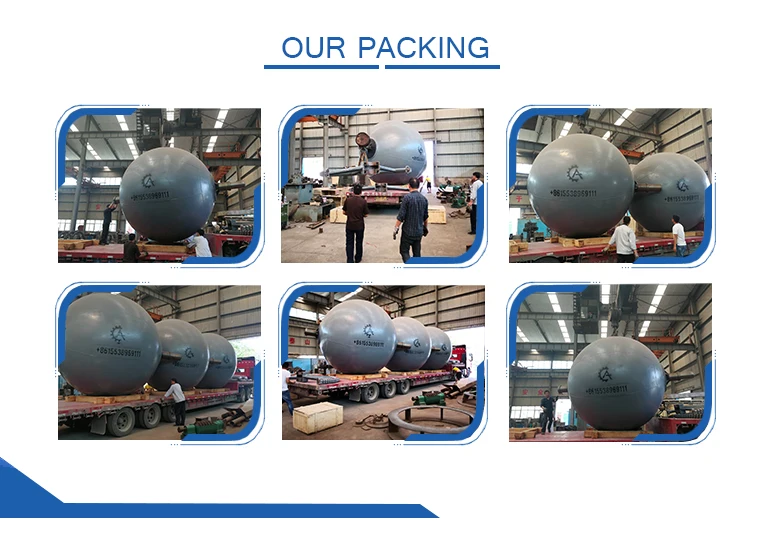

Packaging
products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc
Shipping
sea transportation is from Qingdao seaports or other china main ports.
the delivery time is decided by machine types.But we also try to make it follows your needs.
Service first
1.To provide you with the transformation and upgrading of plant equipment programs, in order to improve the yield and quality
2.Always online to answer technical questions
3.The customer arrives China, accompanied this translation facility until send customers back
4.send engineers to the customer's national installation and commissioning of the machine, to ensure the normal operation of the machine
5.Our products can guarantee excellent quality, if there is any quality problems, we flew to your country for your free service
1.Q:Are you a manufacture?
A: Yes,we have been in providing the professional products in this field for 30 years.
2.Q:How to install the machine?
A:we can help with the installation by vedio,email,picture.if it is a large project,we can arrange our worker help you to install it in your country.
3.Q:How do you pack the products?
A:Normally as the export standard packaging or as your requirement.
4.Q:What's your available port of shipment?
A:Qingdao port,Shanghai port and so on.
5.Q:Is it customized available?
A:Yes,according to your detailed drawing you provided.
