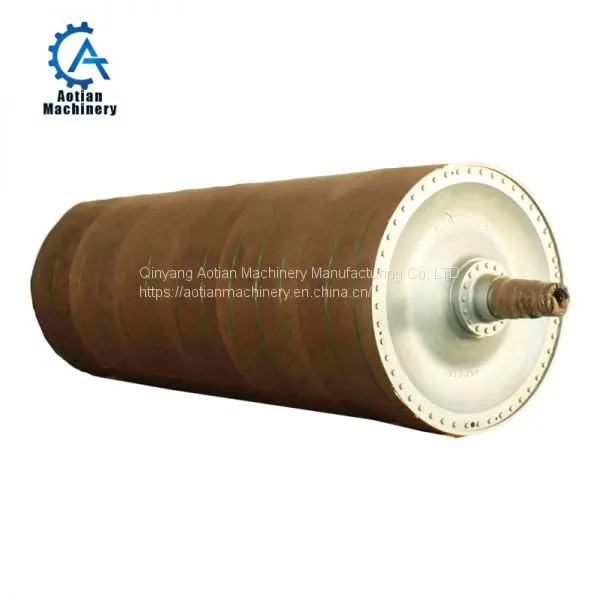

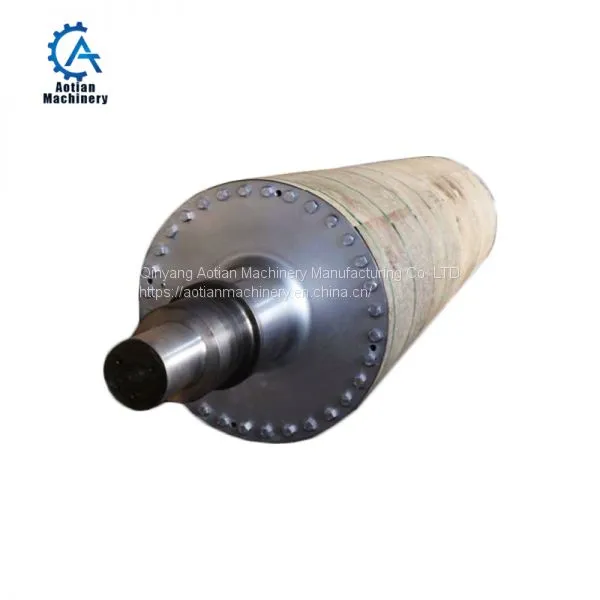

The dryer cylinder is used as a key component for paper drying - Class I pressure vessels.
The saturated steam introduced from the steam joint condenses inside the dryer, and the released heat causes the temperature of the dryer to rise, thereby heating the sheet coated on the surface of the roll shell. Heat is transferred to the paper during contact between the paper and the dryer surface. The steam releases heat and condenses to produce a large amount of condensed water, which is discharged.
Main Features:
1) Excellent welding process applied for steel plates eliminating possible leakages
2) Increase cylinder drying capacity
3) Improve drying / moisture cross profile
4)Increase the area and the rate of water filtration, increase production
5)Improve the quality of paper, including the degree of uniformity, weight, aspect ratio
6)Reduce the copper net, cloth etc. consumption and maintenance cos
7)To strengthen the integrity of the equipment and anti-corrosion performance, durable
Technical parameter
| 1 | Product name | Dryer cylinder | ||||||
| 2 | Diameter(mm) | Design pressure (Mpa) | Material | Hardness (HB) | Width (mm) | Shell Thickness (mm) | Roughness | Working speed(m/min) |
| 3 | 1500 | 0.3-0.8 | HT350-300 | 190-240 | 3500-10000 | 25-32 | 0.2-0.4 | 200-1200 |
| 4 | 1800 | 0.3-0.8 | HT350-300 | 190-240 | 3500-10000 | 28-36 | 0.2-0.4 | 200-1200 |
| 5 | 2000 | 0.3-0.8 | HT350-300 | 190-240 | 1350-5000 | 30-40 | 0.2-0.4 | 200-1200 |
| 6 | 2500 | 0.3-0.8 | HT350-300 | 190-240 | 1350-5000 | 32-47 | 0.2-0.4 | 200-500 |
| 7 | 3000 | 0.3-0.8 | HT350-300 | 190-240 | 1350-5000 | 37-56 | 0.2-0.4 | 200-600 |
| 8 | 3660 | 0.3-0.8 | HT350-300 | 190-240 | 1350-5000 | 40-65 | 0.2-0.4 | 200-1200 |
| 9 | 3680 | 0.3-0.8 | HT350-300 | 190-240 | 1350-5000 | as required | 0.2-0.4 | 200-1200 |
| 10 | <=1500 | 0.3-0.5 | HT200-250 | 190-240 | 1350-5000 | 18-27 | 0.2-0.4 | 200-1200 |

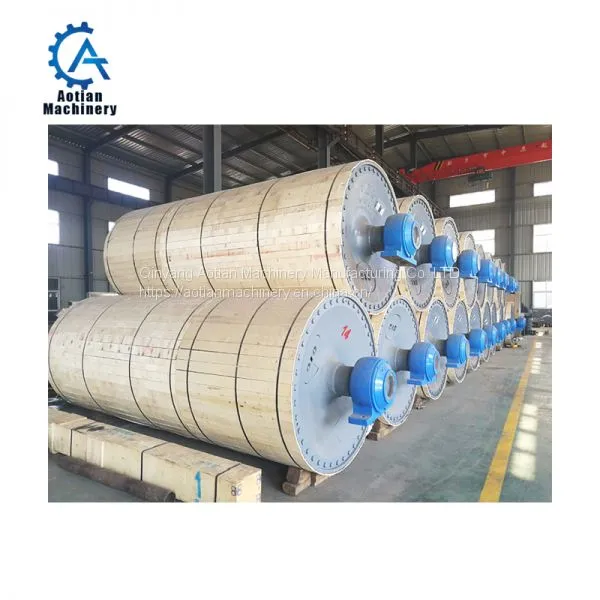

Packing
products will packaged according to their shapes, weight, transport distance and transport modes.Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc.
shipping
sea transportation is from Qingdao seaports or other china main ports.the delivery time is decided by machine types.But we also try to make it follows your needs.
Before Purchase
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
After purchase
1.Highly inspecting equipment in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems;
7.Providing life-long maintenance service;
8.Providing technical exchanging;
Qinyang Aotian Machinery Manufacturing Co., Ltd. was founded in 1985, according to the modern enterprise mechanism into a large-scale standardized joint-stock enterprises, with 278 workers,including 23 engineers and technicians,15 senior engineers.In general, Aotian is in the leading place of paper-making industry in China
Our factory covers an area of about 60000 square meters, has a technical research and development department, eight large modern processing workshops, and a quality inspection center, with more than 50 large and medium-sized equipment and scientific research design, manufacturing, testing, assembly and debugging and a series of functions.
The company has passed ISO9001:2000 international quality management system certification, self-supporting and export rights.
Papermaking machine and papermaking machine parts is our company's main product.Our factory can produce mechanical pulping equipment, chemical pulping equipment, paper scrap deinking equipment, pulping and paper-making sewage treatment equipment, paper-plastic of composite paper separating equipment, etc.We will provide whole services according to our clients’ demand, like technical design, equipment production, installation and test instruction and so on. We will meet and exceed your expectations. Please contact our custom service for details4.We will supply best pre-sale, after-sales for you.
Q:Are you a manufacture?
A: Yes,we have been in providing the professional products in this field for 30 years.
Q:How to install the machine?
A:we can help with the installation by vedio,email,picture.if it is a large project,we can arrange our worker help you to install it in your country.
Q:How do you pack the products?
A:Normally as the export standard packaging or as your requirement.
Q:What's your available port of shipment?
A:Qingdao port,Shanghai port and so on.
Q:Is it customized available?
A:Yes,according to your detailed drawing you provided.
There are our best selling products,the quality is praised by customers all over the world.
All products comply with GB and ISO standards.the enterpries passed the ISO9001 international quality system certification in 2000.
