Home > Products > Paper machine parts > Material HT250 HT300 HT200 Paper Machine Drying Parts Cylinder Dryer
Material HT250 HT300 HT200 Paper Machine Drying Parts Cylinder Dryer
- 100 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 90 days
Product Details
Brand Name: | aotian | Place of Origin: | China | Model Number: | AT |
Product Description

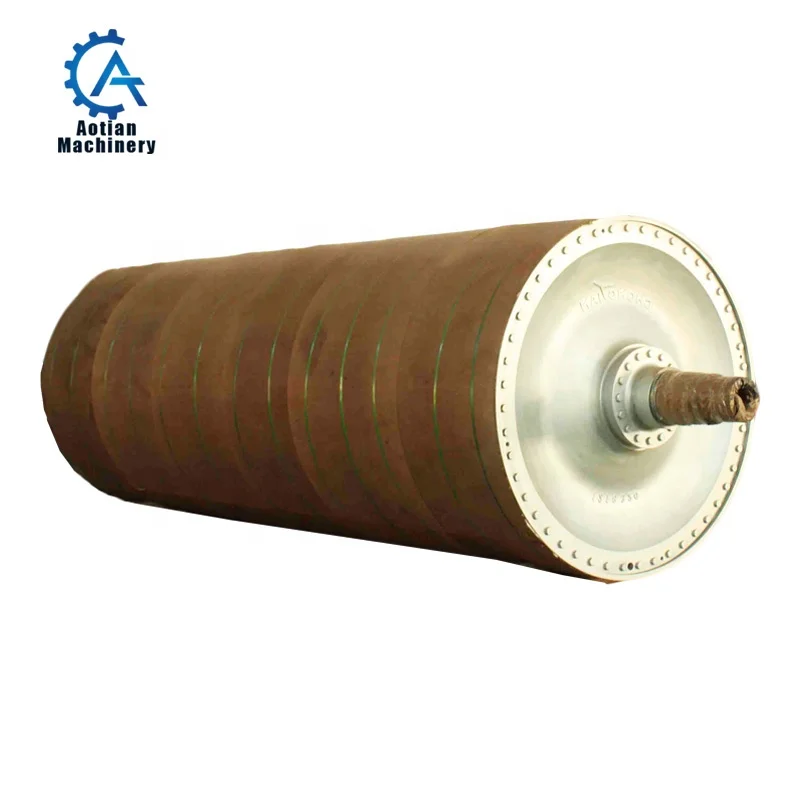

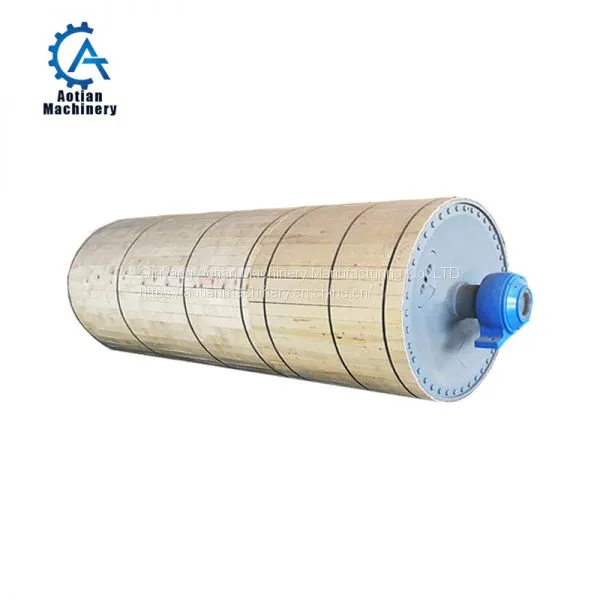

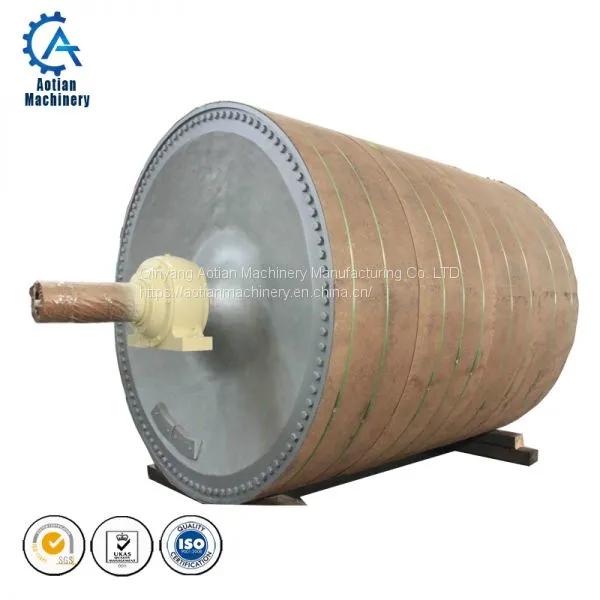

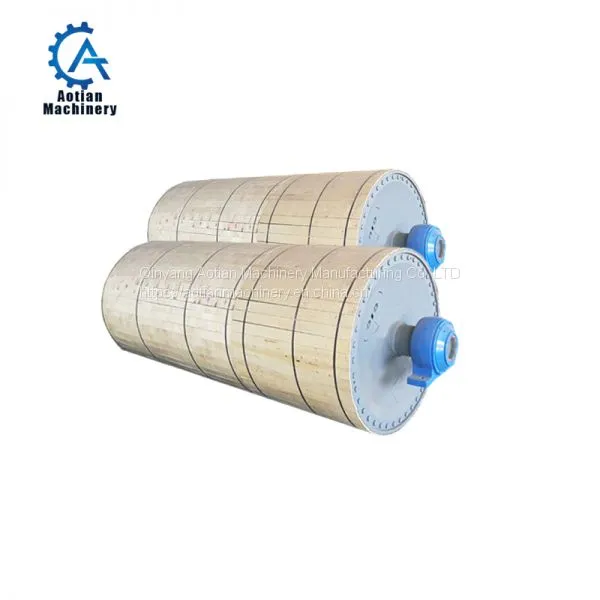

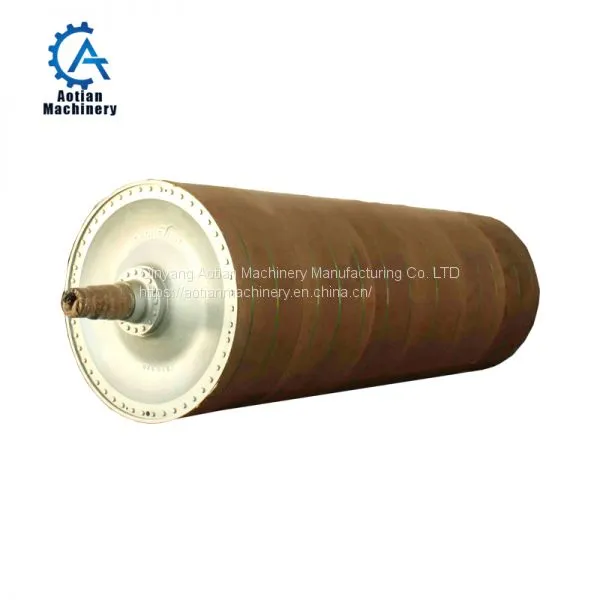

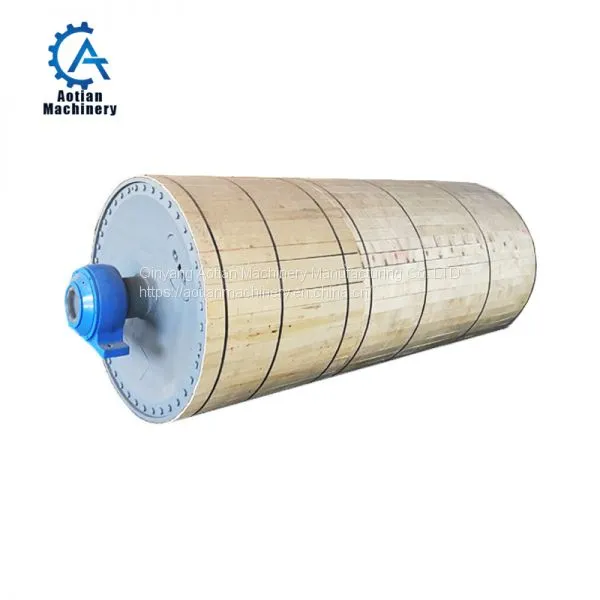

Material HT250 HT300 HT200 Paper Machine Drying Parts Cylinder Dryer
The dryer cylinder is used as a key component for paper drying - Class I pressure vessels.
The saturated steam introduced from the steam joint condenses inside the dryer, and released heat causes the temperature of the dryer cylinder to rise, thereby heating the sheet coated on the surface of the roll shell. Heat is transferred to the paper during contact between the paper and the dryer surface. The steam releases heat and condenses to produce a large amount of condensed water.
Technical Data
Diameter | Design Pressure Mpa | Material | Hardness | Width | Shell Thickness | Roughness | Working Speed |
1500 | 0.3-0.8 | HT250-300 | 190-240 | 350-10000 | 25-32 | 0.2-0.4 | 200-1200 |
1800 | 0.3-0.8 | HT250-300 | 190-240 | 350-10000 | 28-36 | 0.2-0.4 | 200-1200 |
2000 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | 30-40 | 0.2-0.4 | 200-1200 |
2500 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | 32-47 | 0.2-0.4 | 200-500 |
3000 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | 37-56 | 0.2-0.4 | 200-600 |
3660 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | 40-65 | 0.2-0.4 | 200-1200 |
3680 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | As Required | 0.2-0.4 | 200-1200 |
≤1500 | 0.3-0.5 | HT200-250 | 190-240 | 1350-5000 | 18-27 | 0.2-0.4 | 200-1200 |

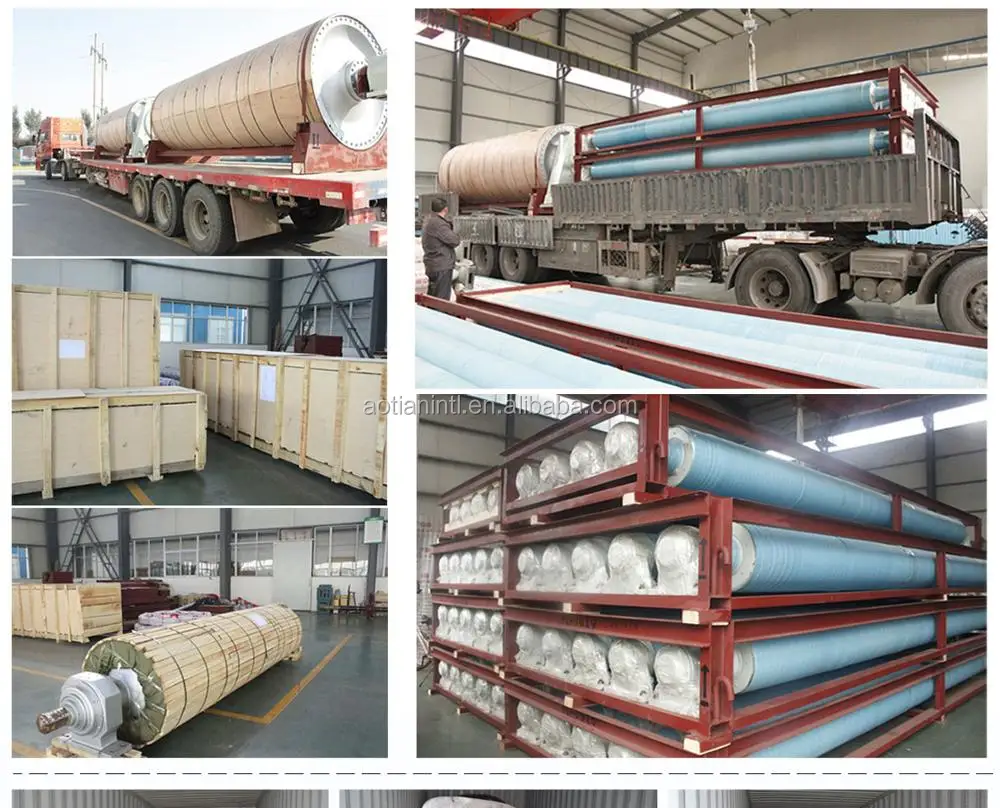

Packaging
products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc
Shipping
sea transportation is from Qingdao seaports or other china main ports.
the delivery time is decided by machine types.But we also try to make it follows your needs.
Service first
1.To provide you with the transformation and upgrading of plant equipment programs, in order to improve the yield and quality
2.Always online to answer technical questions
3.The customer arrives China, accompanied this translation facility until send customers back
4.send engineers to the customer's national installation and commissioning of the machine, to ensure the normal operation of the machine
5.Our products can guarantee excellent quality, if there is any quality problems, we flew to your country for your free service
Aotian Machinery Manufacturing Co., Ltd. was founded in 1985, according to the modern enterprise mechanism into a large-scale standardized joint-stock enterprises, with 278 workers,including 23 engineers and technicians,15 senior engineers.In general, Aotian is in the leading place of paper-making industry in China .
We will provide whole services according to our clients’ demand, like technical design, equipment production, installation and test instruction and so on. We will meet and exceed your expectations. Please contact our custom service for details.
These are our clients in Iran ,Pakistan and India.
Our products are sold to more than 100 countries all over the world.
1.Q:Are you a manufacture?
A: Yes,we have been in providing the professional products in this field for 30 years.
2.Q:How to install the machine?
A:we can help with the installation by vedio,email,picture.if it is a large project,we can arrange our worker help you to install it in your country.
3.Q:How do you pack the products?
A:Normally as the export standard packaging or as your requirement.
4.Q:What's your available port of shipment?
A:Qingdao port,Shanghai port and so on.
5.Q:Is it customized available?
A:Yes,according to your detailed drawing you provided.
