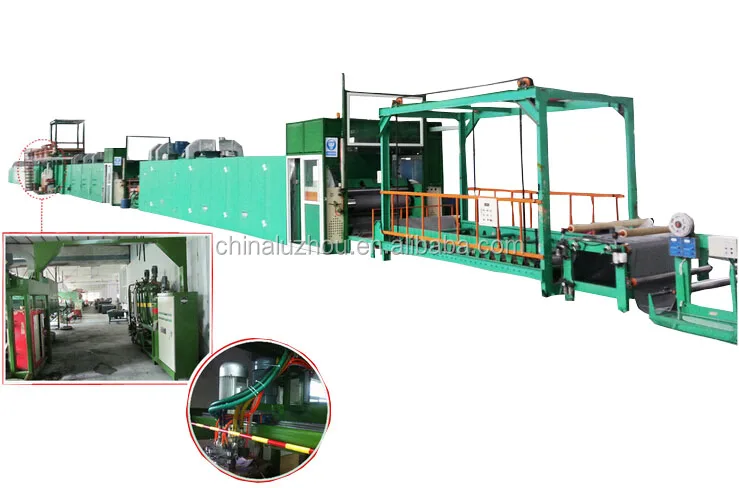

Continuous PU Panel leather Production Line Machine Manufacturers
PU eco-friendly non-solvent leather machine Line of Product characteristics:
1. High accuracy of the coating head and blade with single, double and triple coating types.
2. Recycling use of hot air heating system to assure the evenness of the heat in the oven. Full-automatic temperature control.
3. Easy to handle. Only 8 workers are needed for the whole production line with a output of up to 30,000 square feet.
4. It can manufacture leather of double color leather and pull-up leather. It also has the device to avoid the process of attaching newspapers so as to reduce the production cost.
PU eco-friendly non-solvent leather machine Line of Product Application:
Eco-friendly non-solvent leather processing is mainly to make leather which can be widely applied in shoe materials, apparel, sofa, cases and bags, belts etc.
PU eco-friendly non-solvent leather machine Line of Principles:
A.B materials are conveyed to the injection head on the shifting rack through the filter metering pump, and the injection head shuttle and injects uniformly on the pattern paper on the assembly line. Blades on the assembly line scrape the material to film and then the material will be foamed with heat, bonding with the base layer(split skin, recycle skin, base fabric or other material) before its thorough curing( drawing status). After roller pressing the two into one, it is shaped in the oven and peeled.
Equipment Model No. | LZ-828B |
Power Suply | Total power 16KW,4*380V/50HZ |
Type of applicable foam | Leather manufacturing equipment |
Flux of injection | 30g-100g/S (note:the flux could be configured) |
Pressure of injection | 0.1MPA-3.99MPA |
Mixing Proportion | 50-100:100 |
Viscosity(22°) | POLY( polyethylene )500-2000MPAS |
Viscosity(22°) | ISO( Multi-isocyanate )500-2000MPAS |
Type of injection | Continuous type |
Precision of injection | 0.1/100 |
Injection control system | PLC touch screen |
Pneumatic working pressure | 0.6-0.8MPa |
Floor area | Width 1.6M Height 2.85M Length 3.8M |
Total weight | 1.5 ton |
Pouring nozzle | With fire pin valve, Never wear, Never blocked |
Heating system | It can automatic control temperature |
Metering pump control system | Servo motor |
Q: Are you a trading company or a manufacture factory?
A: 100% Manufacture factory, welcome to visit our factory.
A: Yes, for sure.
Q: What forms of payment do you accept?
A: We accept payment by T/T, LC.
Q: How about after- sale service?
A: We will send professional engineers to final customer's factory for machine installation, commissioning and careful working training. The final customer will afford related cost .
