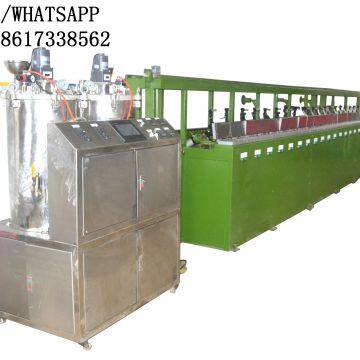

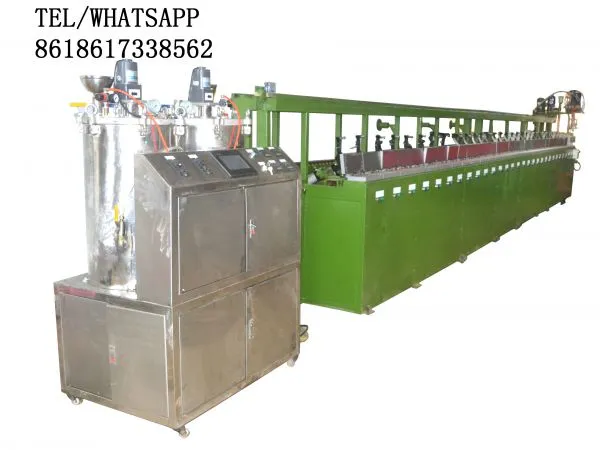

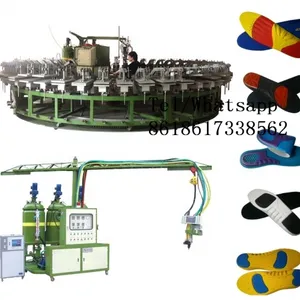

Polyurethane Pneumatic Round Rotary Production Line, Silicone Cushion Automatic Turntable Production Line

FOB Price

2000 - 4000 / Set

1 Set(Min.Order)

Supply Ability 40 Set / Sets per Month
Port GUANG ZHOU
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	LU ZHOU	Place of Origin:	China	Model Number:	LZ-XC606
After-sales Service Provided:	Engineers available to service machinery overseas	Condition:	New

Product Description

Polyurethane Pneumatic Round Rotary Production Line, Silicone Cushion Automatic Turntable Production Line

LZ-907 Series hith pressure foaming machine is my company tracking the international high-end technology products, combined with high technology products by domestic polyurethane industry independent innovation development. The main parts are imported from abroad, the technical performance of equipment and saftety performance reached the advanced level of similar foreign products over the same period.

In the development of the green state series, the technology into the "best practice" and "plug and play" in the process, all the module of equipment instllation in an overall frame, pipeline equipment components of short, small loss of pressure and temperature control is more precise, and the optimized control technology, thus further to improve the reliability of process and product quality.

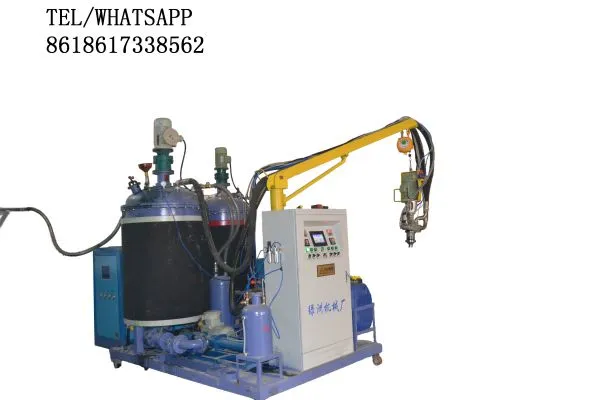

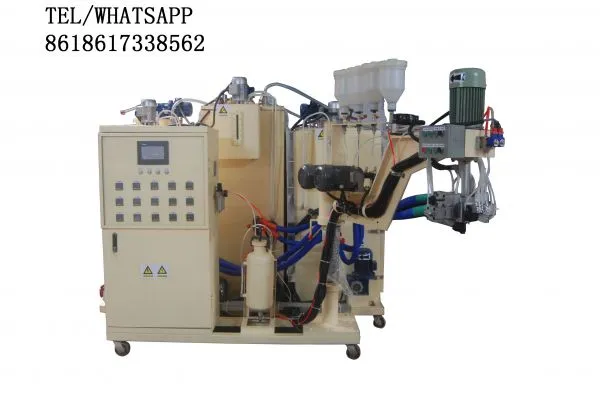

LZ-907(flow control)type high pressure foaming machine adopts 1 polyether polyol tank(POLY), 1 multi isocyanate(ISO) tank; two measurement nuit are respectively the independent motor drive output flow rate by changing the high pressure metering pump to control the speed of the metering pump, can carry out the open loop/closed loop control. Specially used in polyurethane foam production .

POLY, ISO metering pump frequency control(group four CC/ four proportional control)

Product Purpose:

This machine used for Car seat cushions, furniture cushions, pillows, deflectors, instrument panels, sun visor, motorcycle cushions, bicycle cushions, insulation materials, refrigerators, refrigerated trucks, roof insulation panels, cushions, office chairs, handrails, furniture, decorative materials etc.

Product Characteristics:

Easy to maintain and operate; highly efficient under any production situation; simple and efficient; self cleaning; cost saving; direct material calibration at measurement; high mixing Precision; good repeatability and evenness; accurate material mixing ratio control.

Main Technical Parameters:

Model	Output Volume(g/s)	Material Pot Volume(L)	Mixing Ratio(P:I)	Total Power(KW)
LZ-907A	65-250	250	100:35-65	18
LZ-907B	108-450	250	100:35-65	22
LZ-907C	266-1330	250	100:35-65	26
LZ-907D	520-2620	250	100:35-65	55
LZ-907E	1050-5230	250	100:35-65	110

Contact Us

FOSHAN LUZHOU PU MACHINERY CO.,LTD: Contact nameChristine; Phone86-18617338562; Address525100 Foshan,Guangdong
