Help CenterLPCB CE Approved Infrared Detector Tx7130 Beam Detector Conventional Reflective Beam Smoke Detector for Fire Alarm System
Related Products
-
Ceiling White 2 Wires Conventional Smoke Detector Photoelectric Smoke Sensor Fire Alarm for Fire Alarm Security SystemNegotiableMOQ: 100 Pieces -
CST Smoke Detector CE Certified Smoke Alarm 2 Wires Fire Sensor for Conventional Fire Alarm System YT102NegotiableMOQ: 10 Pieces
-
IR3 Flame Detector Infrared Flame Sensor Fire AlarmNegotiableMOQ: 1 Piece
-
Dual Infrared Flame Detector IR2 Flame Detector Flame Alarm Sensor EXUS$ 180MOQ: 1 Piece
-
CE Smoke Detector Conventional Smoke Sensor Photoelectronic Detector 2 Wires for Fire Alarm SystemUS$ 5 - 5.50MOQ: 100 Pieces
Any interest, please feel free to contact me as below:
skype: firealarm87 wechat: 15220176087

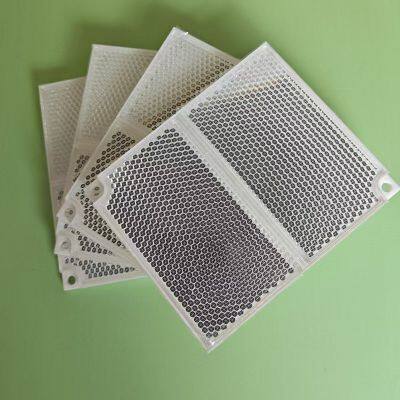

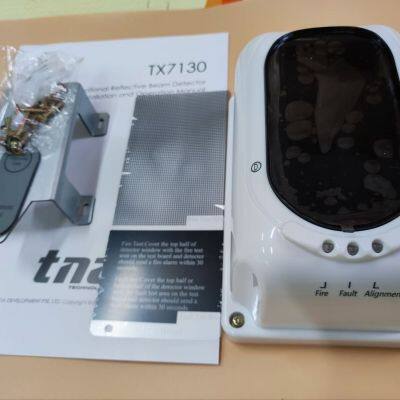

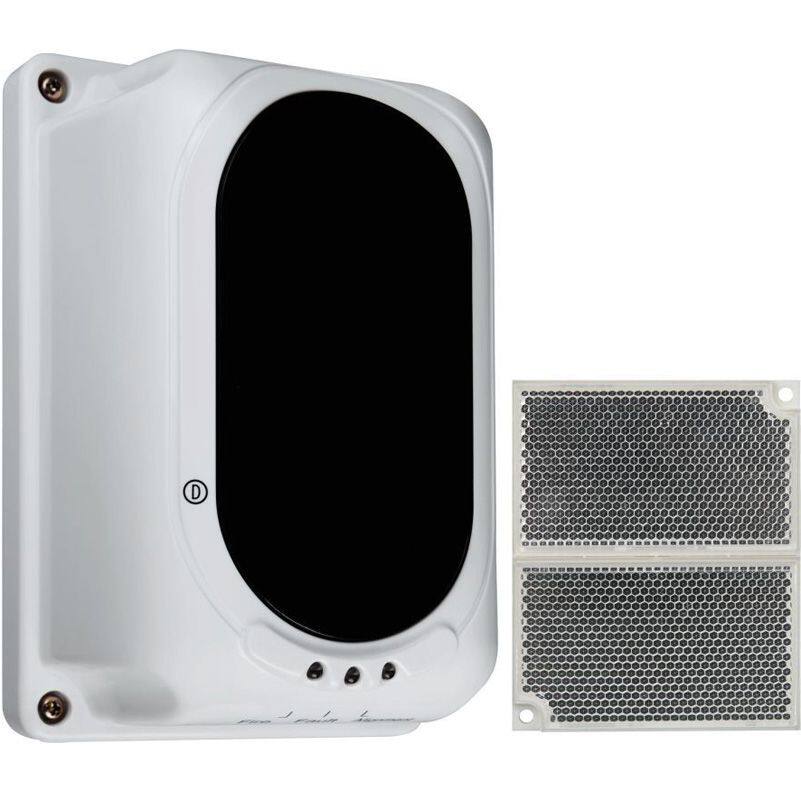

TX7130 Conventional Reflective Beam Detector has built in Laser beam pointing and Digital guide display for real user friendly alignment method. The Laser beam pointing accurately point the exact location where to mount mirror and with additional digital guide display allows to monitor and guide on the actual light intensity between the mirror and detector which cannot be seen by our naked eye making it more easy and convenient in alignment commissioning. The TX7130 has four adjustable operational ranges of between 8 to 20, 20 to 40, 40 to 70 and 70 to 100 meters beside with three adjustable sensitivity setting ranges from 2.6dB, 3.8dB and 5.8dB to meet the specific environmental requirement. The TX7130 works on the principle of reflective infrared beam obscuration. Used in conjunction with a reflector, it will notify the fire alarm panel when the infrared beam is obscured by smoke. The TX7130 is ideal for use high ceiling and wide areas such as warehouses, large storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist.
2 Feature and Benefits
EN54-12 Compliance 2. Hassle free alignment, built with digital guide display and laser beam pointing 3. Employ single-ended design through reflective mirror 4. Four ranges wide monitoring from 8-100 meters via encoder 5. Three users programing sensitivity adjustment 6. Built-in microprocessor 7. Self-diagnosis function can monitor for internal faults 8. Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter 9. Fire and Fault interfacing relays 10. Attractive and pleasing appearance 11. Real User friendly alignment method
Send Inquiry to This Supplier
