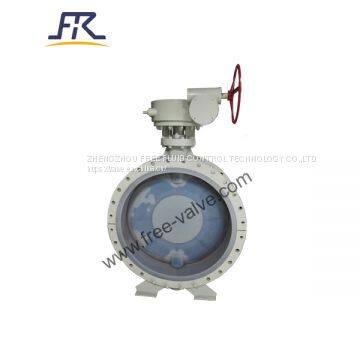

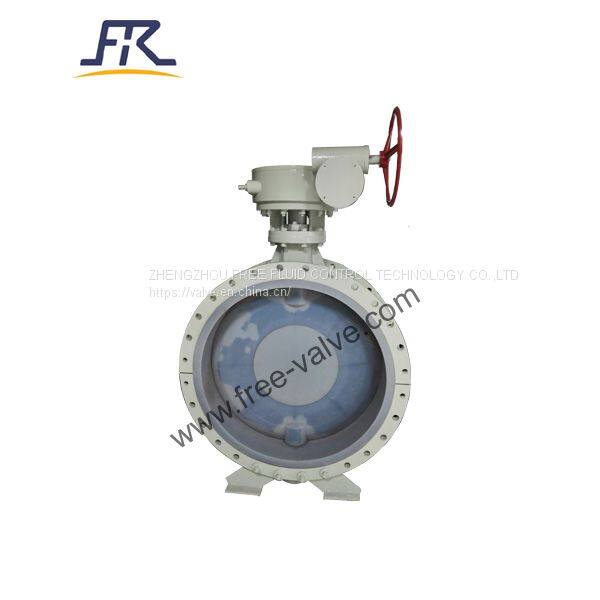

PTFE Lined Butterfly Valve

 FREE-VALVE’s PTFE lined butterfly valve adopts the central line fluorine lined structure,the valve body and disc are lined with anti-corrosive materials so as to effectively avoid the corrosion of the valve by strong corrosive media,so the valve has both the common butterfly valve mechanical strength, and also can play strong resistance to chemical medium properties .

Features

1.PTFE Lined butterfly valve has good sealing performance and is bi-directional flow for zero leakage.

2. PTFE lined materials of body and trim for a variety of medium service,the valve is an ideal solution to control and shut-off applications.

3.As PTFE material have nice stable chemical performance ,so you can install the butterfly valve at any corrosive working condition

5.It has small torque and easy to operate,you can install the butterfly valve in any direction.

Technical Specification

1) Size Range: DN50~DN600

2) Pressure Range: PN6~PN16

3) Connection Type: Wafer,lug,Flange

4) Lining Material:PTFE , PFA , FEP

5) Body material:WCB, CF8 ,CF8M

6) Pressure test:GB/T13927, API598

7) Face to Face: GB/T12221,  API 609

8) Operation Method: Manual

9) Spark Test : 15 K.V.D.C.

10) Service temperature:-20°C to 150°C

Application

FREE-VALVE’s PTFE  lined butterfly valve are ideally suited for the stringent performance requirements demanded with isolating and controlling all kinds of acid,alkali,salt and oxidant,reductant,organic solvent and other media.it is widely used in chemical industry,petroleum,medicine,food,paper-making semi-fluid piping and container closure and adjust equipment.

Model:FRD371F46,FRD371F

Price terms:FOB,CIF,FCA,CFR

Price:100-5000USD/set

Origin:China

Brand:FREE-VALVE
