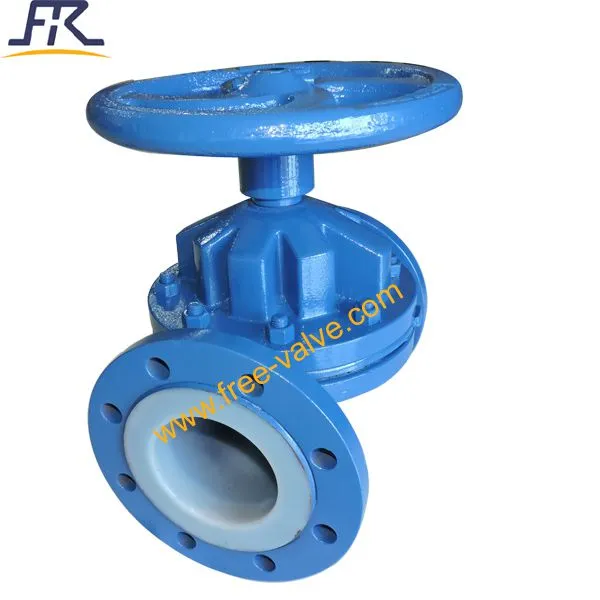

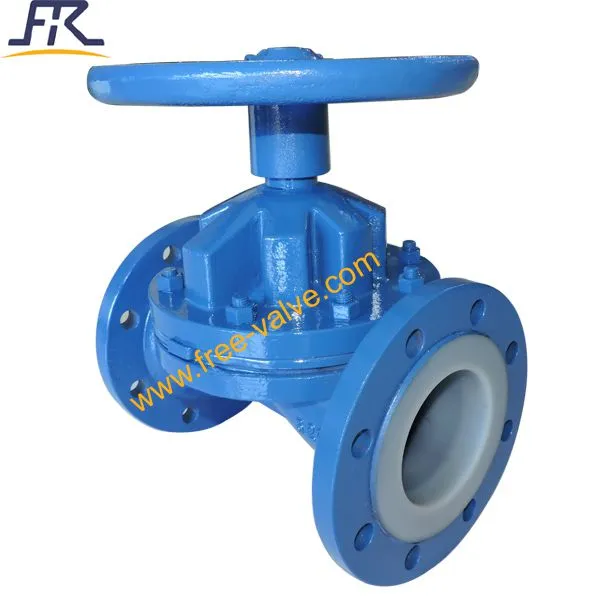

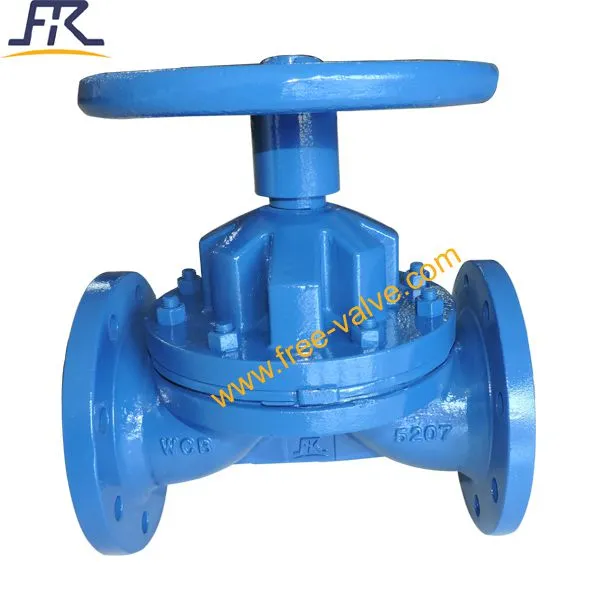

FREE-VALVE brand hand wheel oeprated PTFE lined diaphragm valve is a special form of on-off valve, which disc is a diaphragm made of corrosion-resistant soft material,the diaphragm separates the bottom body cavity from the top bonnet cavity, so that the stem, metal disc and other parts above the diaphragm are not subject to media corrosion,so fluorine lined diaphragm valve eliminate the packing seal structure, and will not occur media leakage.
Features:
1. The diaphragm of using FEP/FPA and rubber composite, suitable for variety of corrosive media.
2. 100% gas seal can be achieved to ensure no leakage in outlet port.
3. No direct contact between metal parts and slurry medium .
4. Bi-directional and full flowing path can reduce pressure drop, weaken abrasion and prolong the service working life.
Technical Specification
1) Size Range: DN25~DN100
2) Pressure Range: Class 150 /PN10 /PN16
3) Connection Type: Flange
4) Lining Material:PTFE
5) Body Material:WCB
6)Design Standard :BS
8) Operating Type: Handwheel
Application
FREE-VALVE brand hand wheel operated PTFE lined diaphragm valves are widely used in chemical industry, medicine and other industrial sectors to achieve the cutting of acid, alkali and other corrosive media in the production process
Model：G41F46
Price:100-5000USD/set
Payment terms:TT,LC
Price terms:FOB,CIF,FCA,.CFR
Delivery time:30days
Origin:China
Brand:FREE-VALVE
