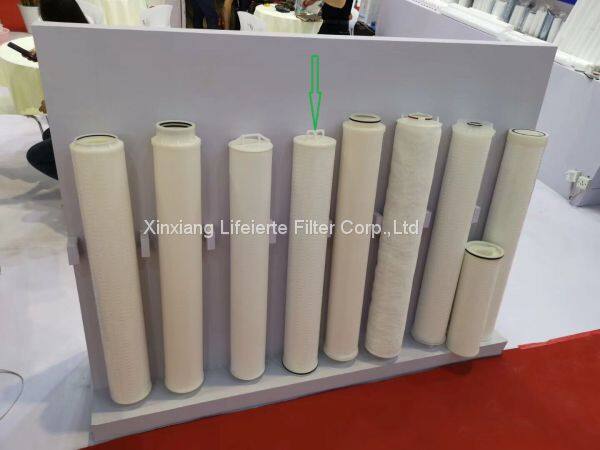

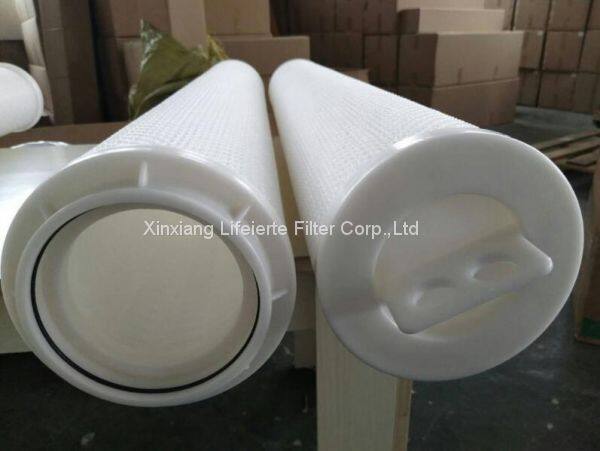

6inch Outer Diameter Parker Rscp010-40spp Large Flow Water Filter Cartrigde

6inch Outer Diameter Parker Rscp010-40spp Large Flow Water Filter Cartrigde
Nominal filtration accuracy of large flow filter element MNFP series (90%): 0.5um 1um 5um 10um
Large flow filter element MNFP series size specifications:
   Outer diameter: 152mm Inner diameter: 89mm
    Length: 1016mm
    Surface area: 5.6 square meters
Large flow filter element MNFP series structure material:
    Filter layer: microfiltration polypropylene (PP)
    Supporting layer: polypropylene (PP)
    End cap: glass fiber reinforced polypropylene
    O-ring: ethylene propylene rubber, Teflon
Large flow filter MNFP series operating environment:
    Replacement pressure difference: 2.4bar
    Large flow rate: 70T/H
    the highest temperature: 80 degrees Celsius
    Maximum pressure drop: 3.4bar

MNFP Series Model:
MFNP005-40N, MFNP010-40N, MFNP010-40N-VGS,

MFNP050-40N,MFNP050-40N-ITT,MFNP050-40N-VGS,

MFNP1000-40N, MFNP100-40N,MFNP100-40N -VGS

Other Parker High Flow Water Filter Model
RSCP100-60EPP,RSCP200-20EPP,RSCP200-20NPP,
RSCP200-40EPP,RSCP200-40VPP,RSCP200-60EPP,
RSCP900-20EPP,RSMG045-20EPP,RSMG045-60NPP,
RSMG100-20NPP,RSMG100-20VPP,RSMG100-40EPP,
RSMG200-20NPP,RSMG200-20VPP,RSMG400-40EPP,

RFP010-40NPX-L RFP050-40NPX-L RFP100-40NPX-L

RFP500-40NPX-L RFP1000-40NPX-L RMHM-P010-40EP

RMHM-P020-40EP RMHM-P050-40EP RMHM-P050-40EP

RMHM-P100-40EP RMHM-P150-40EP RMHM-P400-40EP

MFAC1000-20N,MFAC1000-40N,MFAC100-20N,MFAC100-40N,
MFAC1500-20N,MFAC1500-40N,MFAC150-20N,MFAC150-40N,
MFAC250-20N,MFAC250-40N,MFAP010-20N,MFAP010-40N,
MFAP010-40N-PHS,MFAP010-40N-VGS,MFAP010-40S,
MFAP010-40V,MFAP010-6N,MFAP020-20N,MFAP020-40N,
MFAP050-20N,MFAP050-40E,MFAP050-40N,MFAP050-40S,
MFAP050-40V,MFAP100-20N,MFAP100-40N,
MFAP100-40N-PHS,MFAP100-40N-VGS,MFAP100-40S,
MFAP100-40V,MFAP200-20N,MFAP200-40N,MFAP200-40V,
MFAP400-20N,MFAP400-40N,MFAP400-40S,MFAP400-40V,
MFAP700-40N,MFAP700-40N-KEM,MFDCOMPONENTSV2,
MFDCOMPONENTSV3,MFNC005-40N,MFNC005-40N-SHL,
MFNC010-40N,MFNC050-40N,MFNC100-40N,MFNC100-40V,
MFNG100-40V,MFNG200-40V,MFNP005-40N,MFNP005-40V,
MFNP010-40N,MFNP010-40N-CHR,MFNP010-40N-PHS,
MFNP010-40N-VGS,MFNP010-40S,MFNP050-40E,
MFNP050-40N,MFNP050-40N-CHR,MFNP050-40N-ITT,
MFNP050-40N-PHS,MFNP050-40N-VGS,MFNP050-40S,
MFNP050-40V,MFNP1000-40N,MFNP100-40E,MFNP100-40N,
MFNP100-40N-PHS,MFNP100-40N-VGS,MFNP100-40S,
MFNP200-40N,MFP004-40N,MFP400-40N,MFPCP010-40S,
MFPCP020-40S,MFPCP050-40S,MFPCP100-40N,
MFPCP200-40N,MGSP005-40E-SM,MGSP005-40N-SM,

MGSP005-40V-SM,MGSP020-40N-SM,MGSP020-40T-SM,
MGSP020-40V-SM,MGSP050-40N-SM,MGSP050-40V-SM,
MGSP100-40E-SM,MGSP100-40N-SM,MGSP200-40E-SM,
MGSP200-40N-SM,MGSP400-40E-SM,MGSP400-40N-SM,
MGSP400-40T-SM,MGSP400-40V-SM,MGSP700-40N-SM,
MXCP010-40N-SM,MXGC020-40E-SM,MXGC100-30N-SM,
MXGC100-40N-SM,MXGC700-40N-SM,MXGC700-40V-SM,
MXGC900-40N-SM,MXGP005-40E-SM,MXGP005-40N-SM,
MXGP005-40V-SM,MXGP020-30N-SM,MXGP020-40N-SM,
