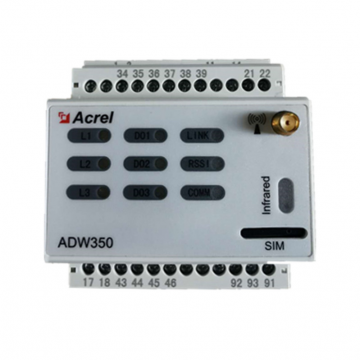

AC Din Rail 3 Circuit Telecommunication Site Wireless Energy Meter ADW350WA for BTS Project photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
Southeast Asia
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
ADW350 Wireless Energy Meter
Product Description
GeneralADW350 wireless energy meter is mainly used for measuring low voltage network of three-phase active power, has the advantages of small size, high precision, feature-rich, and optional communication way, more can support RS485 communication and Lora, 2 g, NB,4g wireless communication methods, increased external CT , and convenient for the user to install and use in different occasions.It can be flexibly installed in the distribution box to realize the demand of electricity metering, operation and maintenance supervision or power monitoring for different areas and different loads.

Display: Light-emitting diode indication
Accuracy:
Voltage,current and power:class 0.5
Active powe:class 1.0
Frequency: 50Hz
Power Supply: AC 85V~265V or DC 48V
Pulse constant:
AC 400imp/kWh  DC1600imp/kWh ;
Input consumption
Voltage:Power consumption:<0.5VA;
Current:Power consumption:<1.0VA;
Power supply:power consumption≤5W
Installation: DIN35mm
Dimension(L*W*H): 72*87.8*71.5mm
Switch relay: DC 30V/5A AC 250V/5A
Communication:
Infrared communication
RS485（optional C)
GPRS（optional 2G）
NB-IOT（optional NB）
4G（optional 4G）

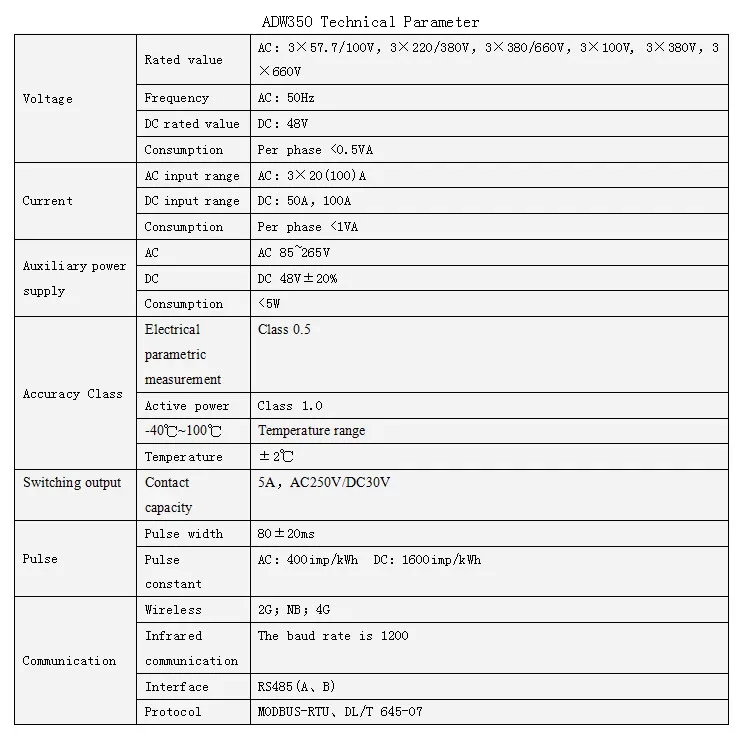

Specification
Main function
Function
Functional specifications
Display mode
Light-emitting diode indication
Electric energy metering
Active power measurement (positive and negative),
Four quadrant reactive energy
Power measurement
Voltage, current, power factor, frequency, active, reactive, apparent power
DC power parameters measurement
Voltage, current, active power,
Harmonic
THD、2-31st individual harmonic distortion
Pulse output
Active pulse output
Three-phase unbalance degree
Degree of voltage and current unbalance
Temperature measurement
2 channels（optional T）
DI/DO
3DO（optional K）
External CT or hall sensor
External CT or hall sensor（optional W）
Alarm
Undervoltage, overvoltage, undercurrent, overcurrent, underload, overload, etc




Communication
Infrared communication
RS485（optional C）
GPRS（optional 2G）
NB-IOT（optional NB）
4G（optional 4G）

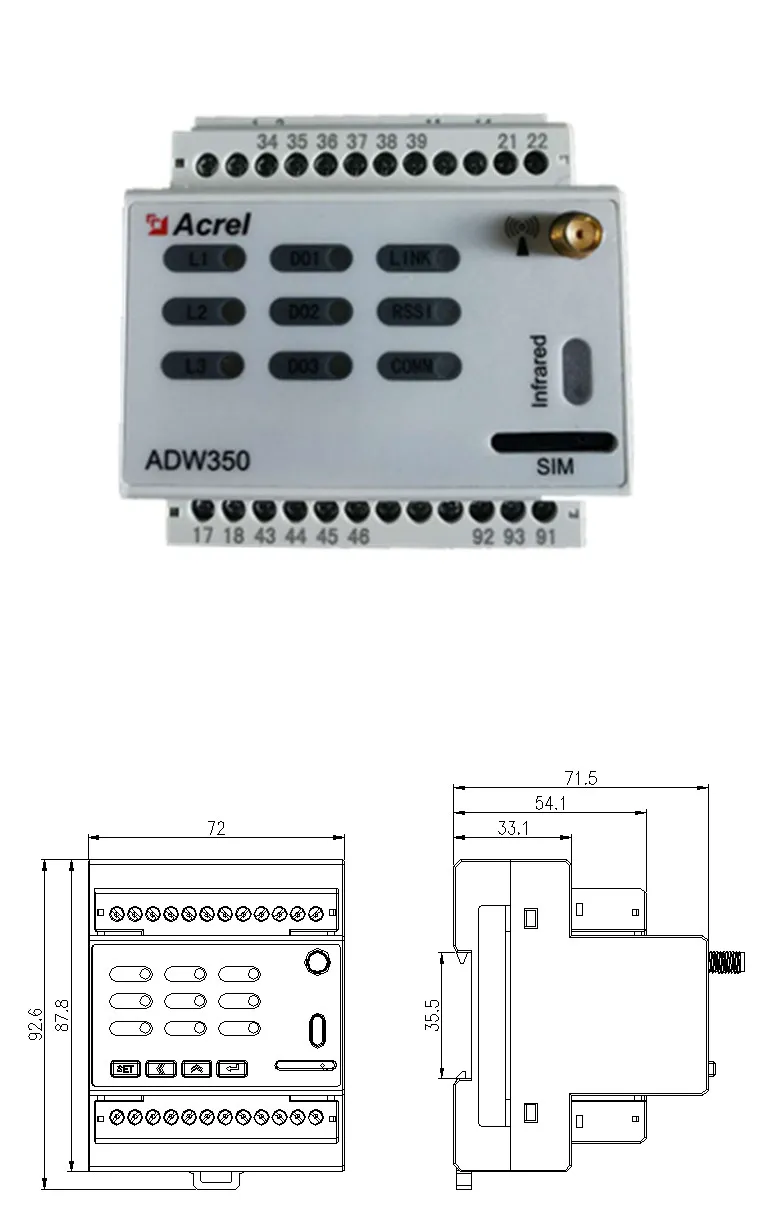

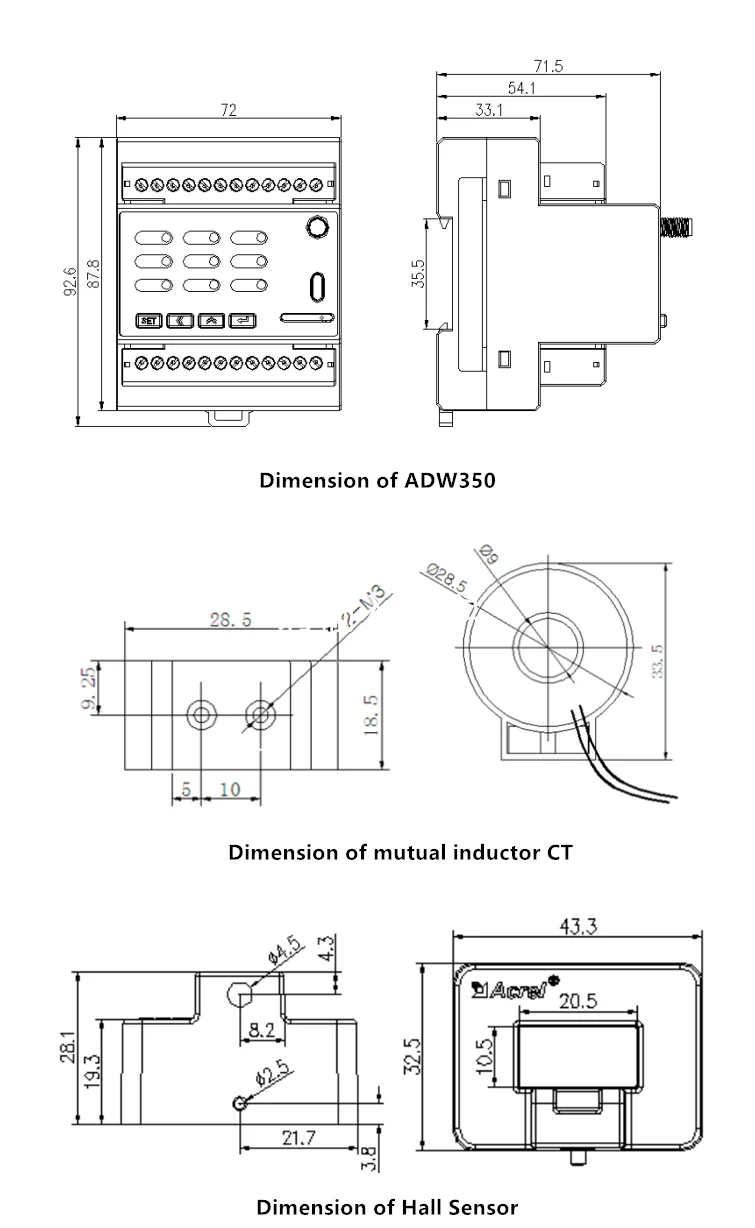

Dimension


Product Tags: wireless energy meter , Base Transceiver Station , BTS energy meter
