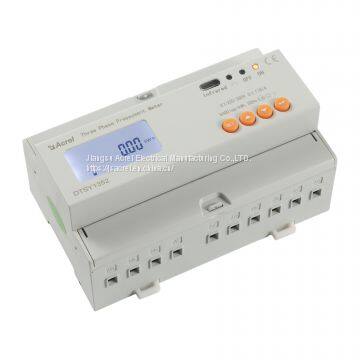

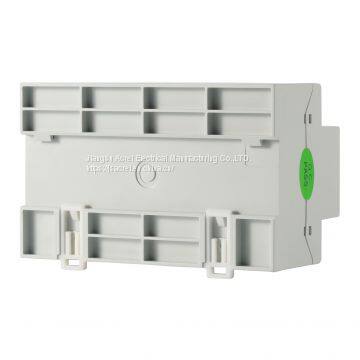

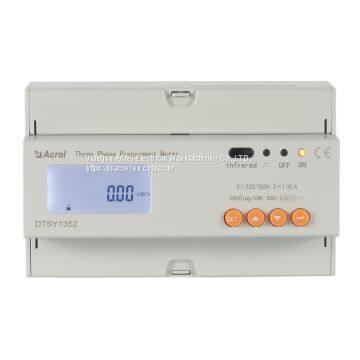

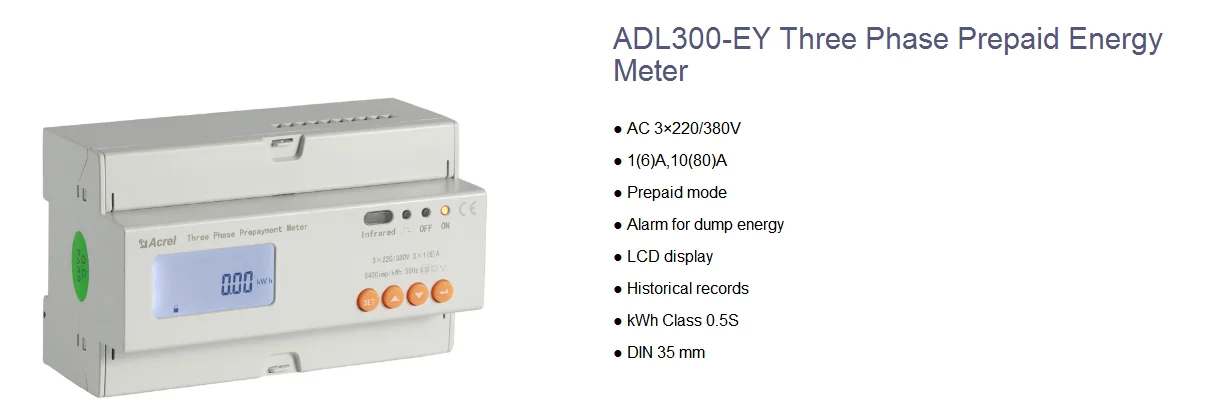

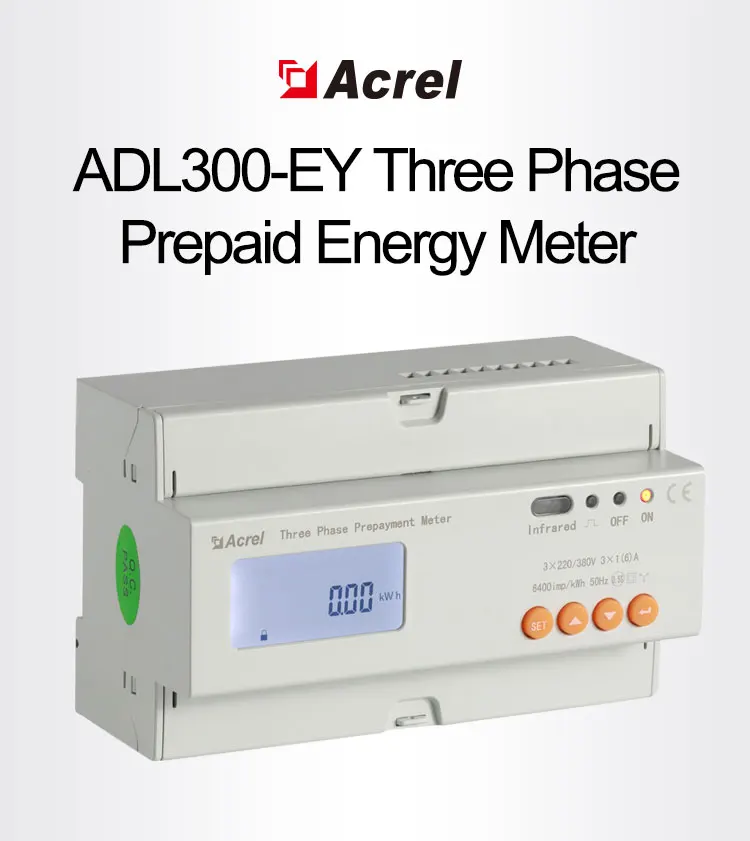

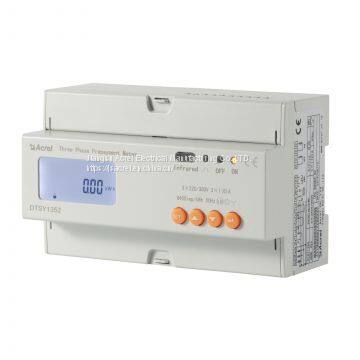

Three phase digital kwh meters Prepaid Energy Meter meter 50HZ supporting infrared communication ADL300-EY

Name: Three phase digital kwh meters Prepaid Energy Meter meter 50HZ supporting infrared communication ADL300-EY
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Product Description

Parameters

Rated voltage		3*200/380V
Voltage reference frequency		50Hz
Voltage consumption		<4VA(Each phase)
Input current		1(6)A, 10(80)A
Starting current		Connet directly:0.004 Ib, Connect via CT:0.002In
Current consumption		<4VA

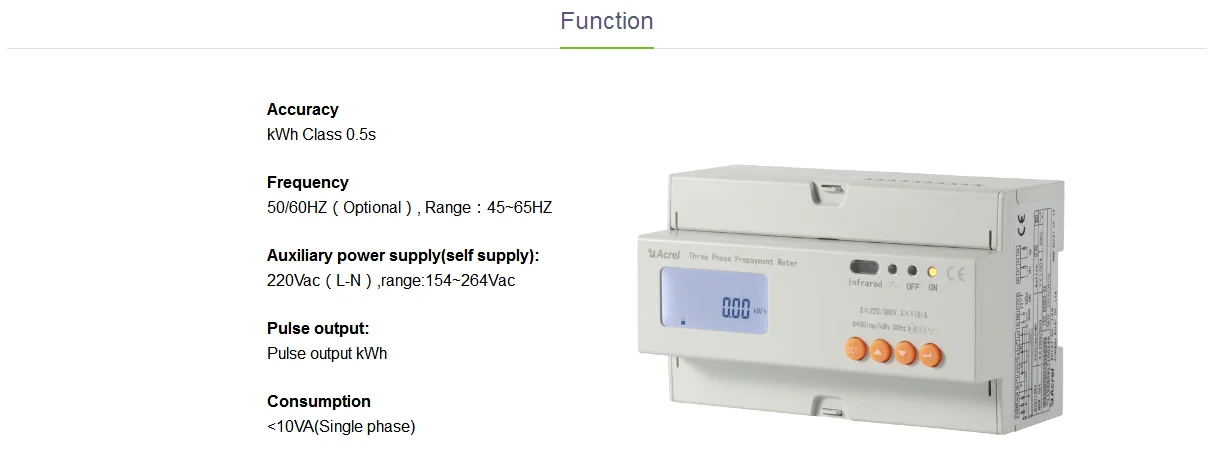

Accuracy		Class 0.5
Clock accuracy		≤0.5s/d
Active pulse	Pulse width	80±20ms
	Pulse constant	6400imp/kwh, 400imp/kwh
Communication	Interface	RS485
	Connection mode	Shielded twisted pair condutors
	Protocol	MODBUS-RTU

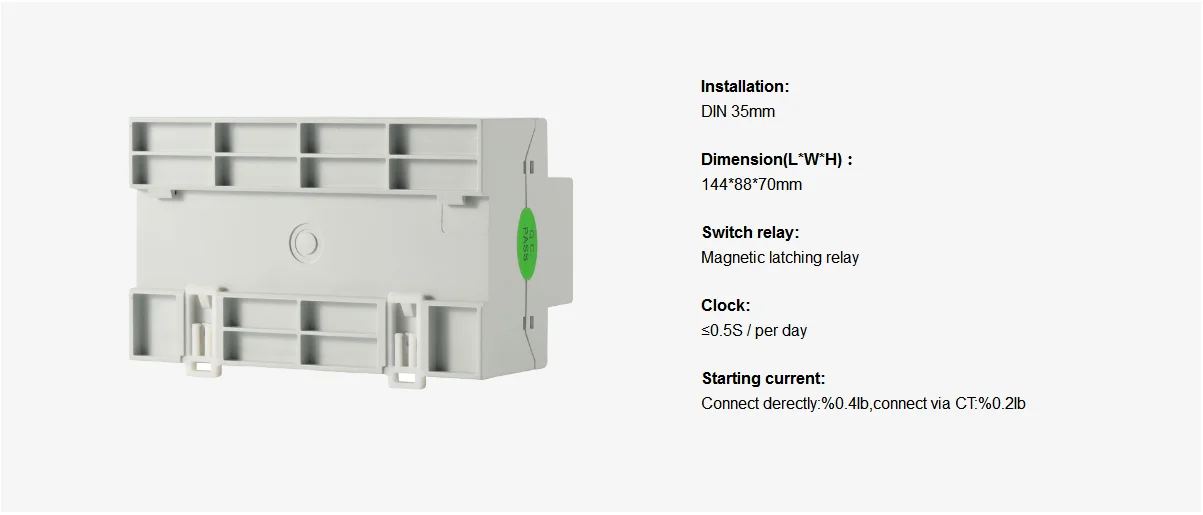

Dimensions(Length * Width* Height)		144mm88mm70mm
Maximum wiring ability(flexible cable)		25mm²
Temperature	Operature temperature	-25℃~55℃
	Storage temperature	-40℃~70℃
Relative		≤95%（No condensation）
Altitude		<2000m
