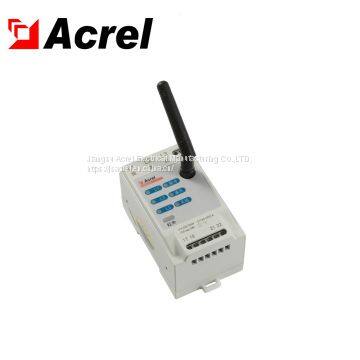

Acrel AEW-D20 Energy Meter Lora Iot for Monitor With Electric Charger

AEW100 wireless energy meter

2 Product specification

Naming rule of main part

Note:
1. Type D10 and D15 do not adapt the function of temperature measurement;
2. There is a mobile antenna lay outside can be chosen, and the length of wire is 2 meters.

3 Technical parameter
3.1  Wireless measurement module

Chart 2 Main function

3.2 Electrical performance

Chart 3 Electrical performance

4  Dimension and installing description (Unit: mm)
4.1 Dimension drawings (Unit: mm)

Chart 5 Dimension of mutual inductor

Fig 5 Dimension of mutual inductor AKH-0.66/K-10

4.2 Installing description

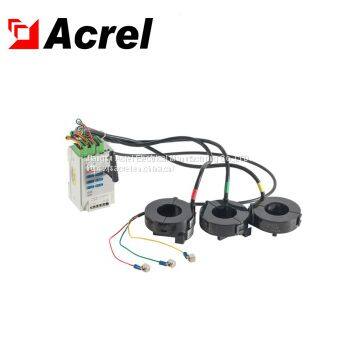

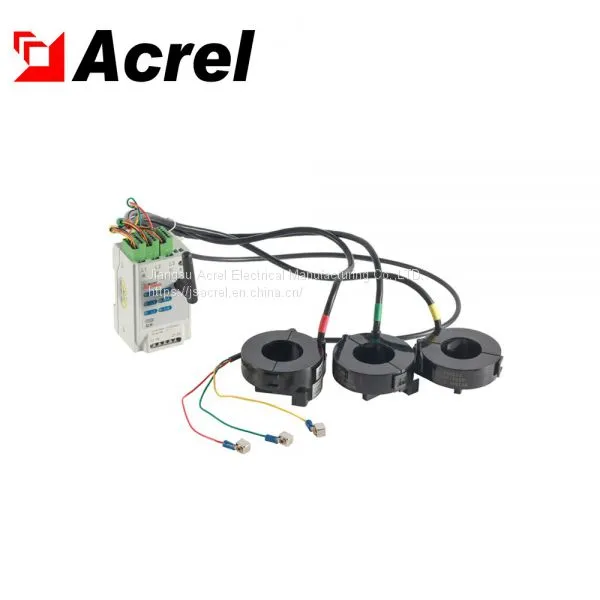

1 The mutual inductor adapts the specification of AKH-0.66/K-20 and AKH-0.66/K-36. L1, L2, L3 prick in to A, B, C phase respectively, and especially the A phase and N terminal powered for the AEW100. And A, B, C phase transmits the voltage and current to AEW100 by mutual inductor, and then the AEW100 transmits the single to PC via RS485.

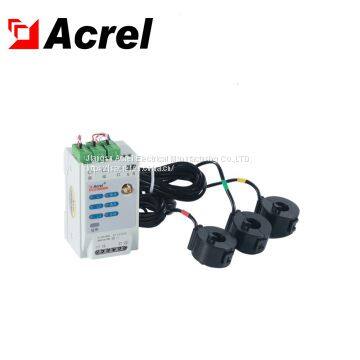

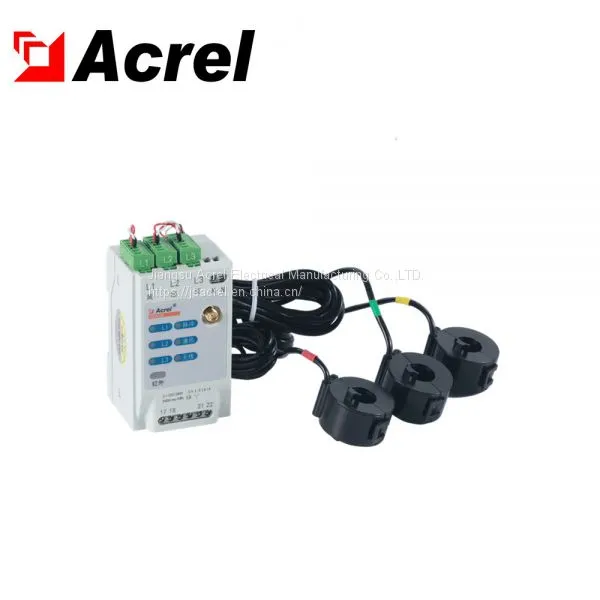

2 The mutual inductor adapts the specification of AKH-0.66/K-10 and AKH-0.66/K-15.

3-phase 4-wire (voltage and current connected via CT)

5 Operating and display
There are 6 LED lights on the surface of the meter represent for L1, L2, L3, pulse, communication, wireless respectively.
L1 light on means L1 phase powered;
L2 light on means L2 phase powered;
L3 light on means L3 phase powered;
Pulse light on each time means one electric pulse output;
Communication light will flash while communicating via RS485;
Wireless light will flash while communicating via wireless module.
