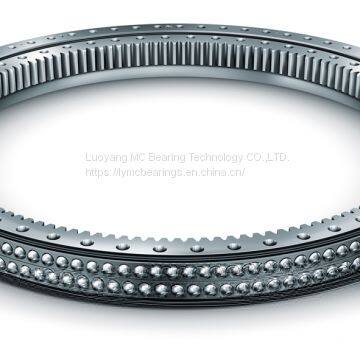

023.40.1800 Slewing Ring/Slewing Bearing/Turnable Ring with internal gear 1976*1624*160mm

023.40.1800 Slewing Ring/Slewing Bearing/Turnable Ring with internal gear 1976*1624*160mm information:

The outer ring diameter:1976mm

The inner ring diameter:1624mm

The thickness diameter:160mm

Static load ratingCo(Kn):692

Weight:820kg

Cage Material:Nylon/ Steel /Copper

Precision rating:P0 P2 P4

Material:50Mn/42CrMo/42CrMo4V /Customized

Package:Wooden box

Delivery Time: 3 days in stock

Slewing Bearing Type:

 Single row four point contact ball slewing bearing
 Single row crossed cylindrical roller slewing bearings

023.40.1800 Slewing Ring/Slewing Bearing/Turnable Ring with internal gear 1976*1624*160mm

Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force, radial force and overturning moment at the same time, has strong dynamic load.

Application:Ladle turret, Stacker crane, Bucket wheel machine, Solar heliostat Tracking System, port crane, Cabling machine, tower crane, offshore platform, ferris wheel, Palletizing robot, Rotary metallurgical furnace, can packing machine, Wind blade transporter, shield tunneling machine, tube push bench, excavator
