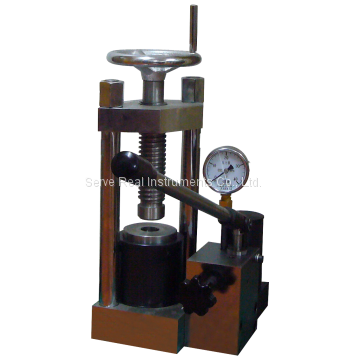

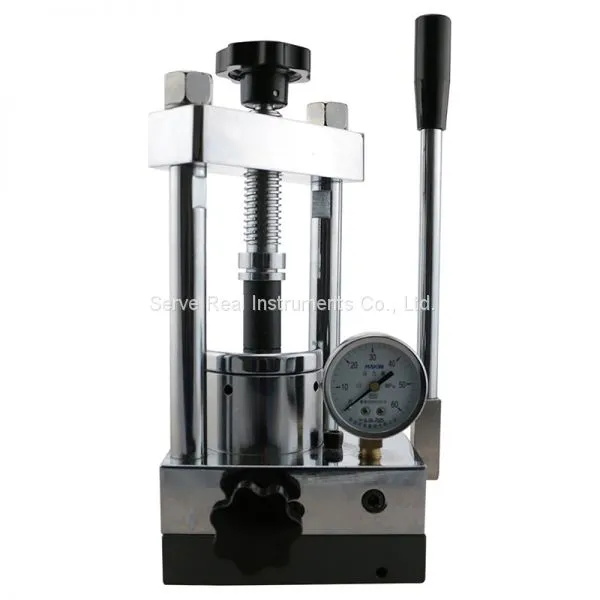

Manual Hydraulic Pellet Press

The hydraulic press machine is mainly used to make pellet sample in laboratory for testing and analysis purpose, it is a auxiliary device for calcium-iron analyzer, infrared spectrometer, X fluorescence and other testing instruments.

Specifications

1. 8 Ton model

Pressure range: 0-80kn

Piston stroke: 0-20mm

Piston diameter: dia. 70mm

Work space: 100*100*100mm

Overall dimension: 210*190*400mm

Pressure stability: <=0.5Mpa/5min

Net weight: 19kg

2. 15 Ton model

Pressure range: 0-150kn

Rated working pressure: 36Mpa

Piston stroke: 0-20mm

Work space:95×95×85mm

Overall dimension: 175×175×300mm

Net weight: 15kg

3. 24 Ton model

Pressure range: 0-24 tons

Working piston diameter: 88mm

Maximum working stroke: 20mm

Workbench space: 120mm

Oil volume: 400ml

Pressure stability: ≤1Mpa/5min

Weight: 47.5Kg

Dimensions: 470×380×200 (mm)
