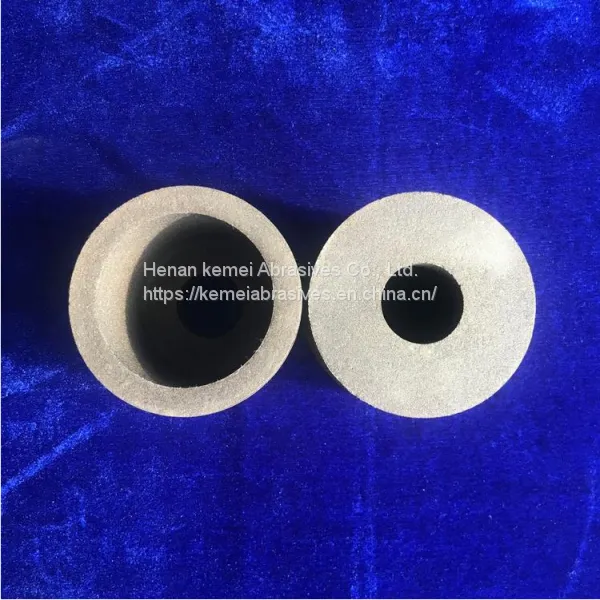

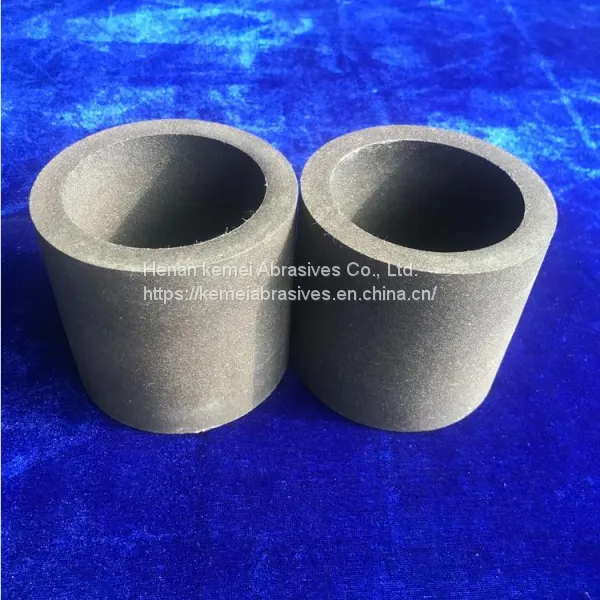

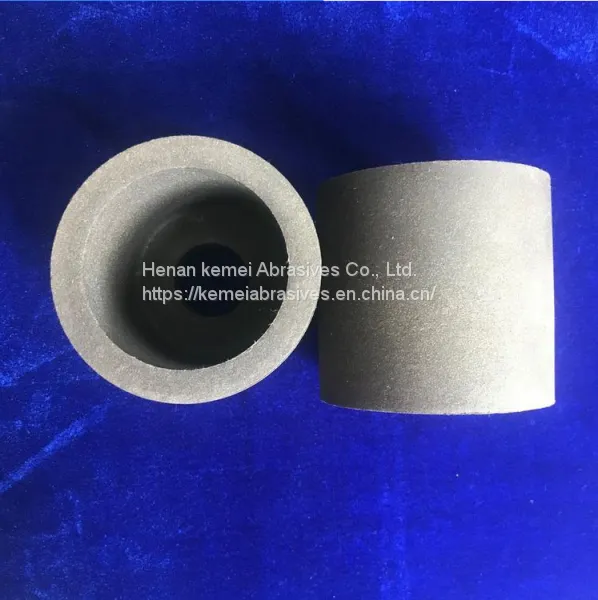

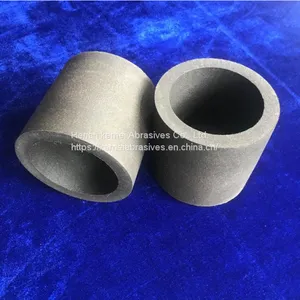

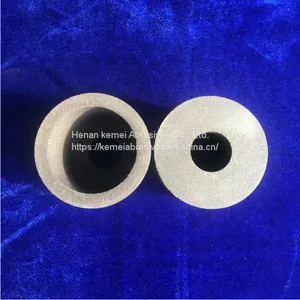

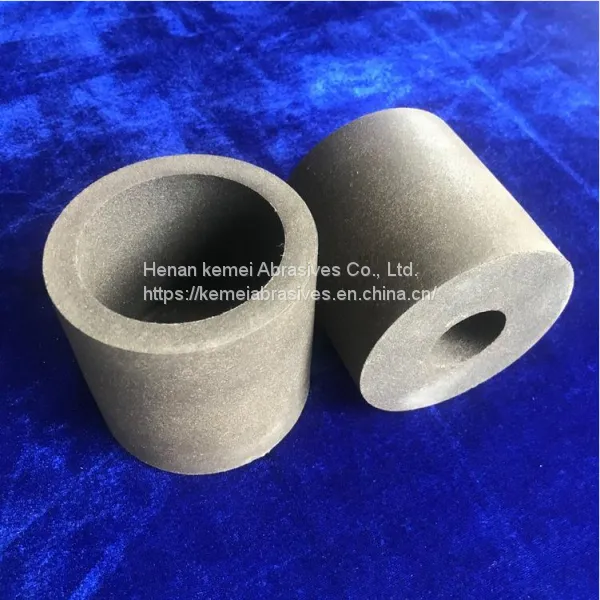

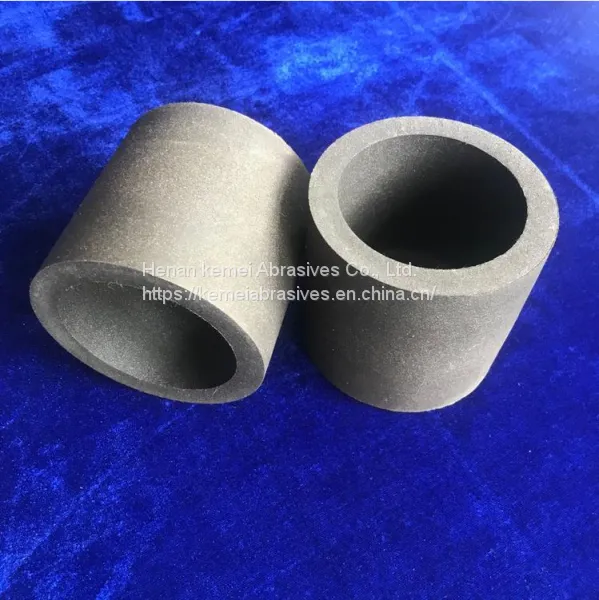

Help CenterBearing Coarse Grinding Wheel,cup Bearing Ball Machining Grinding Wheel
Related Products
-
Cup Wheel Gear/thread Grinding/ High Speed Grinding Wheel/cutting Disc/ceramics SG Cup WheelNegotiableMOQ: 100 Pieces -
Graphite Mirror Polishing WheelNegotiableMOQ: 100 Pieces
-
Ceramic White Fused Alumina Dressing RingNegotiableMOQ: 100 Pieces
-
Polyurethane Foam Wheel Special for Polishing Mobile Phone Shell,aluminum AlloyNegotiableMOQ: 100 Pieces
-
Vitrified Green Silicon Carbide Grinding Wheel for Grinding RubberNegotiableMOQ: 50 Pieces
The selection suggestions of bearing channel grinding wheel
1. Select grinding wheel according to different working procedure. When selecting the grinding wheel, it should be different to use one process of rough and fine grinding or two processes of warm and fine grinding.
2. Select proper grinding wheel hardness. The grinding wheel is very hard. Although the groove guard changes little and the grinding wheel is more durable, the cutting ability of the grinding wheel is reduced and it is not easy to wear off the surplus. The surface of the grinding wheel is easy to plug and the workpiece is easy to burn. If the grinding wheel is too soft, the sand will fall off too fast, and the grinding mark will be deep. There is no polishing process, and the surface finish and precision of the workpiece are not easily guaranteed. At the same time, grinding wheel consumption, uneconomical.
3. Mill bearing outer groove, similar to the inner circle grinding, grinding wheel speed is low, if the use of grinding wheel diameter is large, its hardness is lower, if the grinding wheel diameter is small, its hardness outside groove grinding wheel is generally based on the size of the parts size and decide, but ground of some of the large size of bearing, may not necessarily want to choose again big wheel, because after grinding wheel diameter increase, arc with a surface is also big, grinding crack (grinding wheel flower) increase mill bearing inner groove, similar to the external cylindrical grinding, grinding condition is better.
Welcome inquiry~
Website: /
Email:kmabrasives@hotmail.com
Phone No.:+8618838275294
WhatsApp:+8618838275294
Wechat:grindingwheel8888
