high quality Portable mobile 125 lpm 7500 lph hydraulic transformer oil filter cart
Applications
● The purifying of turbine oil and transformer oil
● The water and dust purifying of hydraulic oil lubrication system
● Access hydraulic lubrication system comprehensively improve the cleanliness of the system
Product Description
This machine has five filtration systems, combining precise filtration and dewatering two functions into one efficient. The introduction of the US "coalescing separation" technology for dehydration, which has high efficient dehydration, especially is adapted to the large amount of water separation from oil, dehydration ability is far better than the centrifugal method, you can get rid of all of the oil-water emulsion medium structure ; by filtration, particle filtration system, the cleanliness of the medium can be controlled in a stable state of the system requirements to ensure the cleanliness; the oil does not change the physical and chemical properties, to extend the service life of the oil; energy small, low operating costs; excellent system configuration, continuous strong performance for online operation.
LYC-J Technical Data:
Model | LYC-25J-*/** | LYC-50J-*/** | LYC-100J-*/** | LYC-150J-*/** | LYC-200J-*/** | LYC-2400J-*/** |
Rated flow (L/min) | 25 | 50 | 100 | 150 | 200 | 400 |
Temperature (°C) | 25-80 | |||||
Recommended viscosity (CSt) | 10-120 | |||||
Rated pressure (Mpa) | 0.6 | |||||
The original pressure loss (Mpa) | ≤0.1 | |||||
Filtration precision before pump (μm) | 100 | |||||
First filtration precision (μm) | 10、20、40 | |||||
Secondary filtration precision (μm) | 3、5、10 | |||||
Voltage (V) | Three-phase AC380V | |||||
Motor Power Kw | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13 |
Weight (Kg) | 150 | 200 | 300 | 520 | 860 | 2860 |
Dimensions(mm) | 1200x820x1250 | 1350x820x1400 | 1740x980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x1600x2000 |
Note: * Secondary precision filter accuracy, such as 003 means 3 um
** The applicable media: generally hydraulic oil
BH: water, ethylene glycol V: phosphate ester hydraulic fluid
*** When the medium viscosity fluid temperature is too high or low, needed to increase the heating device

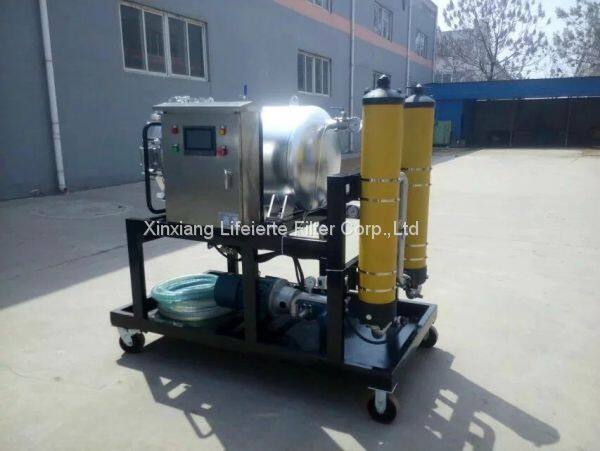

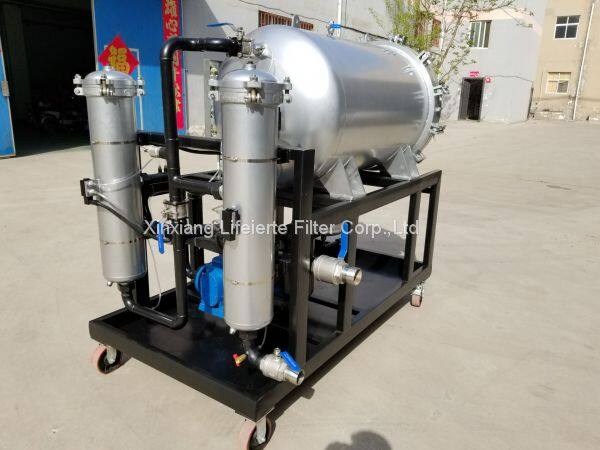

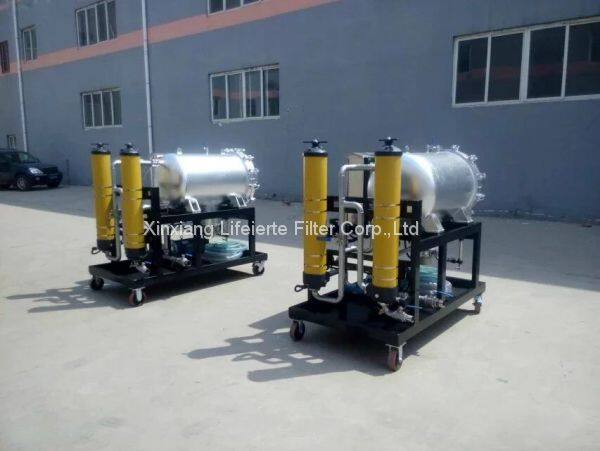

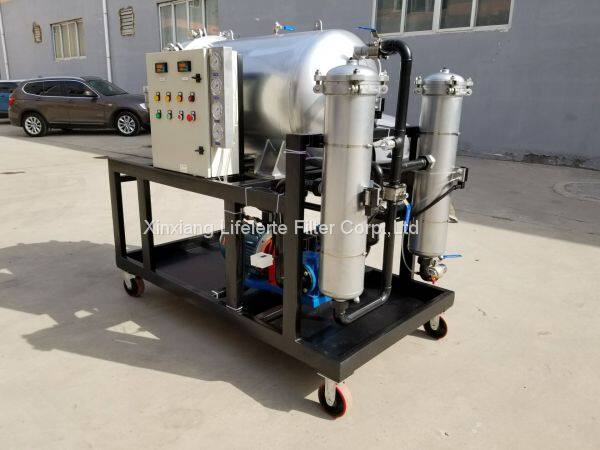

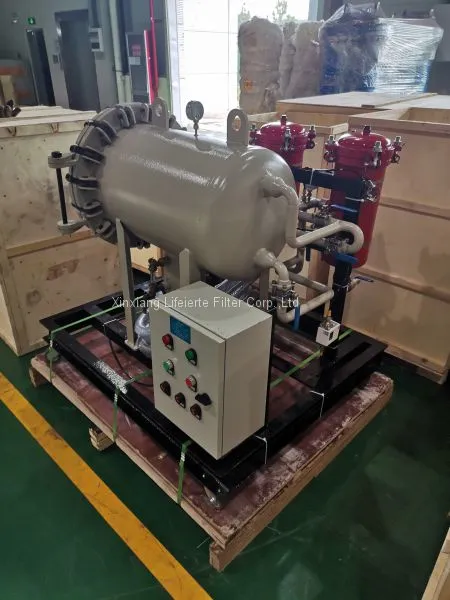

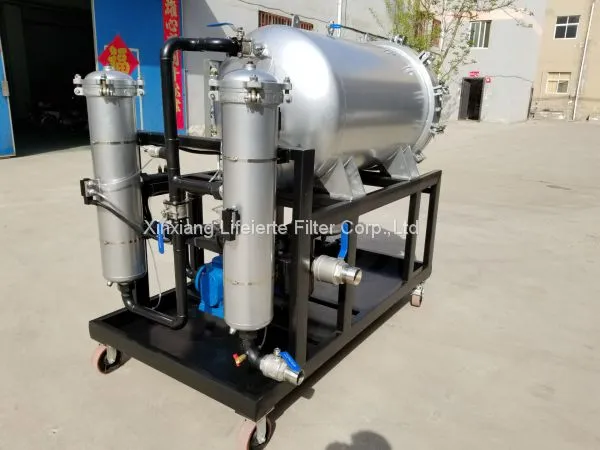

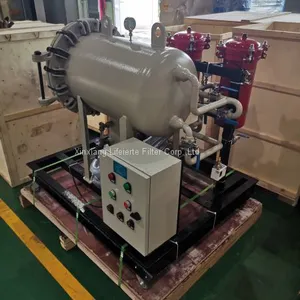

Exactly Pictures:
