Mobile HYDAC OF5 Oil Filtration Equipment for Hydraulic Oil

Max.   flow rate

30L/min  40L/min

Voltage

230V 50Hz,380-420V 50Hz,440V-480V 60Hz

Micron

3-40μm

Operating   pressure

4.5   bar

Viscosity   range

 15- 800 mm²/s (depending on model)

Permitted   operating fluid

Mineral   oil (others on request)

Permitted   suction pressure at suction port

-0.4   bar …+0.6 bar

Fluid   temperature

-10   ... 80 °C

Ambient   temperature

 -20 ... 40 °C

Seals

NBR   (Option: FPM)

Protection   class

IP 54

Length   of power cable

 10m

Length   of hoses

 3 m

Hose connections

Suction   hose NW 30 with lance

Pressure   hose NW 25 with lance

Weight

 ≈ 75 kg

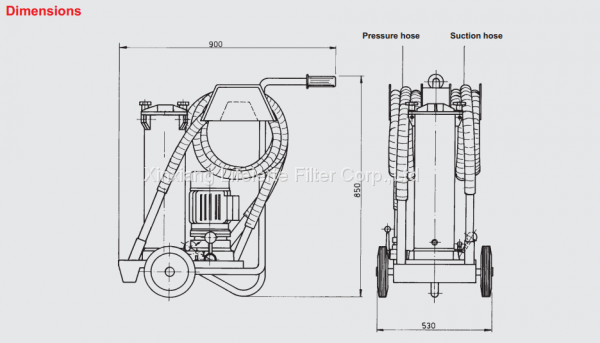

Sizes

900x530x850mm

1

3 µm

0330 R 003 BN4HC/-KB (-V-KB)

1262999 (1263640)

1

5 µm

0330 R 005 BN4HC/-KB (-V-KB)

1263000 (1263641)

1

10 µm

0330 R 010 BN4HC/-KB (-V-KB)

1263001 (1263642)

1

20 µm

0330 R 020 BN4HC/-KB (-V-KB)

1263002 (1263643)

1

40 µm

0330 R 040 AM /-KB (-V-KB)

1272067 (1266563)

1

3 µm

0330 R 003 BN/AM /-KB (-V-KB)

1272069 (1276690)

1

10 µm

0330 R 010 BN/AM /-KB (-V-KB)

1272068 (1281126)

2

3 µm

1300 R 003 BN4HC-/KB (-V-KB)

1263059 (1263760)

2

5 µm

1300 R 005 BN4HC-/KB (-V-KB)

1263060 (1263761)

2

10 µm

1300 R 010 BN4HC-/KB (-V-KB)

1263061 (1263762)

2

20 µm

1300 R 020    BN4HC-/KB (-V-KB)

1263062 (1263763)

2

3 µm

1300 R 003 BN/AM /-KB (-V-KB)

1267991 (1271839)

2

10 µm

1300 R 010 BN4AM /-KB (-V-KB)

1270010 (1276060)

2

40 µm

1300 R 040 AM /-KB

1267699
